Installation Procedure

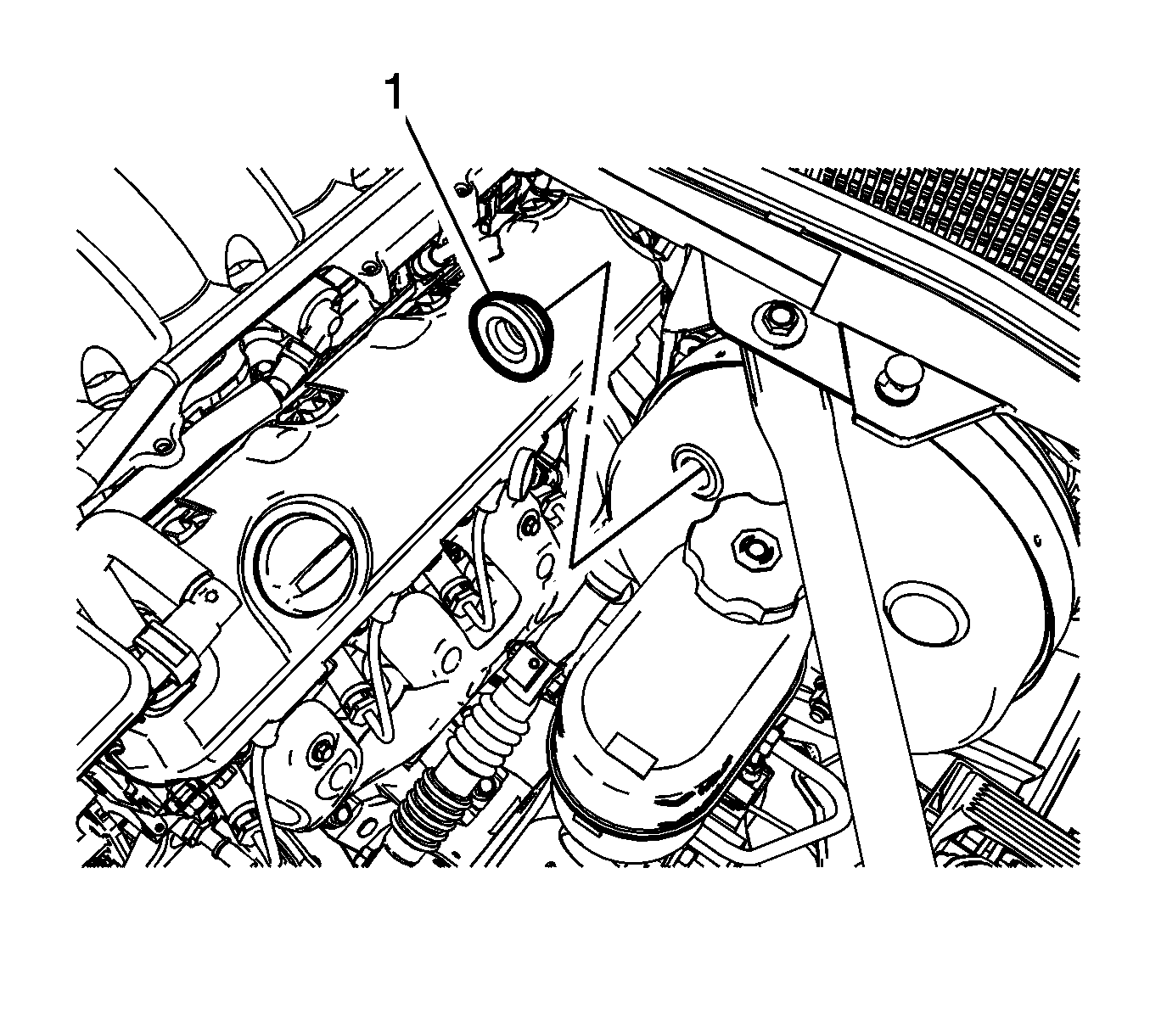

    Fig 1: Power Brake Booster Vacuum Check Valve Grommet
    GM3270552Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If necessary, a small amount of denatured alcohol may be used as a lubricant for assembly. Do not use soap.

  1. Install the power brake booster vacuum check valve grommet (1).
    2. Fig 2: Power Brake Booster Vacuum Sensor And Pipe Assembly
    GM3269840Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If necessary, a small amount of denatured alcohol may be used as a lubricant for assembly. Do not use soap.

  2. Install the power brake booster vacuum sensor (1) and pipe assembly to the power vacuum brake booster.
  3. Connect the power brake booster vacuum sensor electrical connector.
