Installation Procedure

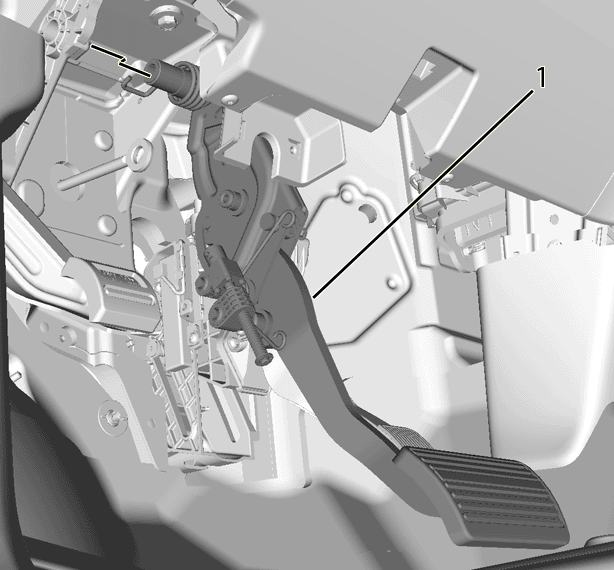

    Fig 1: Brake Pedal
    GM3512886Courtesy of GENERAL MOTORS COMPANY
  1. Install the brake pedal (1).

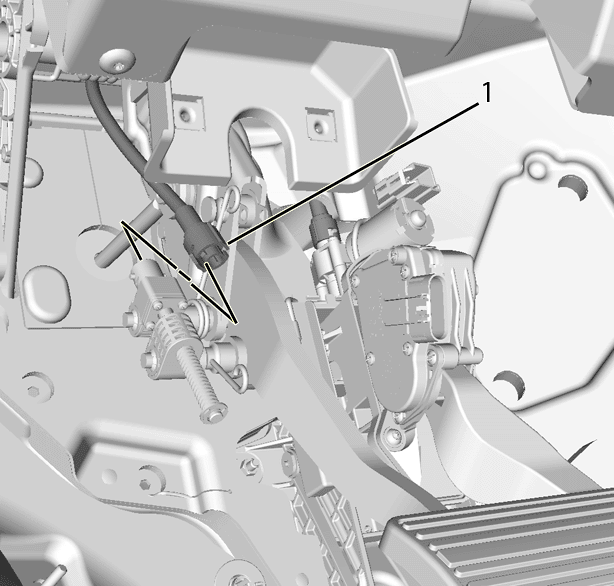

    2. Fig 2: Brake Pedal Adjuster Actuator Cable
    GM3512884Courtesy of GENERAL MOTORS COMPANY
  2. Connect the brake pedal adjuster actuator cable (1) to the brake pedal adjuster actuator.
    1. Push the brake pedal adjuster actuator cable downward until the locking tabs are fully engaged in the brake pedal adjuster actuator.
    2. Rotate the brake pedal adjuster actuator cable collar clockwise.

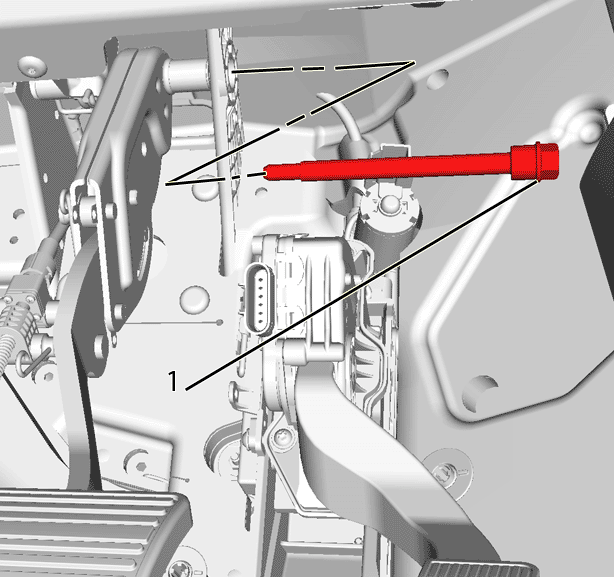

    3. Fig 3: Brake Pedal Pivot Bolt
    GM3512882Courtesy of GENERAL MOTORS COMPANY
  3. If installing a new brake pedal pivot bushing, ensure the conical flange end of the bushing is on the inboard side of the pedal.
  4. For installation, apply high temperature lubricant to the ID of the brake pedal pivot bushing. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  5. Install the brake pedal pivot bolt (1).

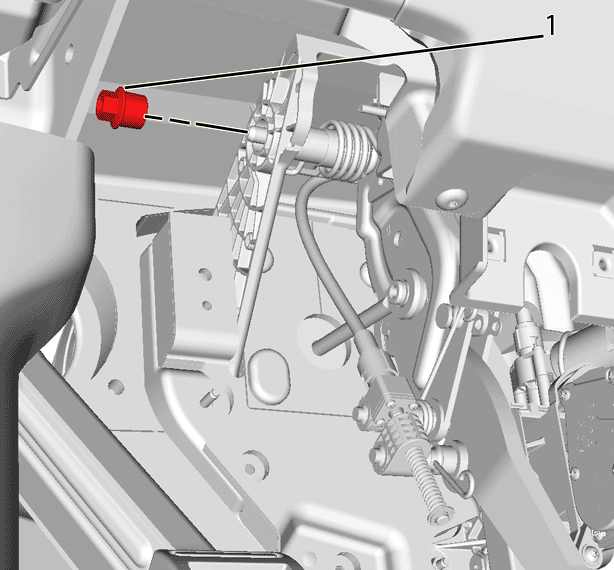

    6. Fig 4: Brake Pedal Pivot Nut
    GM3512880Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  6. While holding the brake pedal pivot bolt stationary, install the brake pedal pivot nut (1) and tighten to 26 N.m (19 lb ft).
  7. Apply a thin coat of high temperature lubricant to the brake pedal pivot pin. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  8. Connect the power brake booster pushrod.

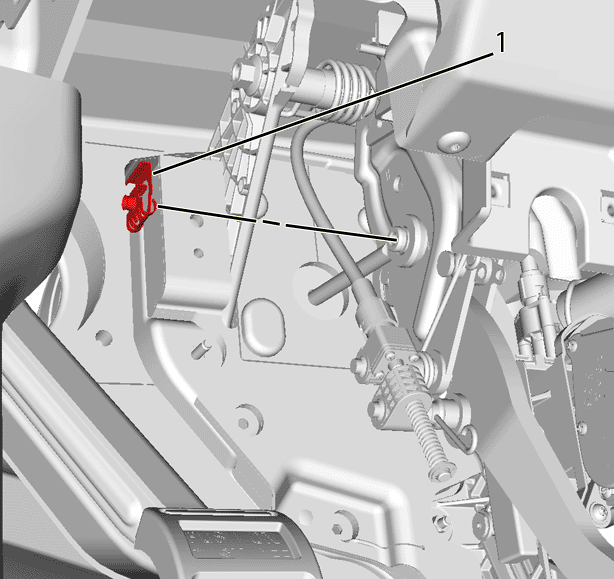

    9. Fig 5: Power Brake Booster Pushrod Retaining Clip
    GM3512878Courtesy of GENERAL MOTORS COMPANY
  9. Install the power brake booster pushrod retainer clip (1).
  10. Rotate the power brake booster retainer clip 360 degrees to ensure the clip is fully engaged in the brake pedal pivot pin groove.

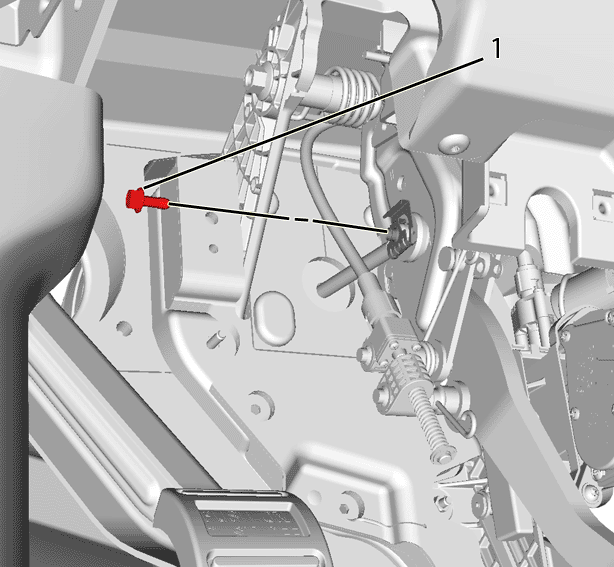

    11. Fig 6: Power Brake Booster Pushrod Retaining Clip Bolt
    GM3512857Courtesy of GENERAL MOTORS COMPANY
  11. Install the power brake booster pushrod retainer clip bolt (1) and tighten to 10 N.m (89 lb in).

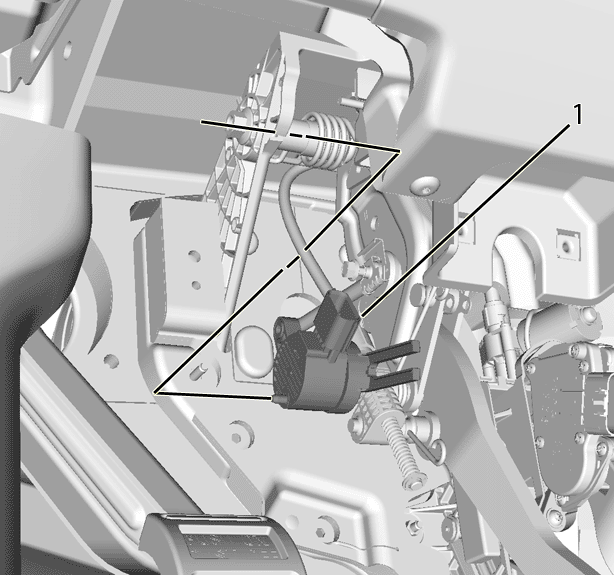

    12. Fig 7: Brake Pedal Position Sensor
    GM3512831Courtesy of GENERAL MOTORS COMPANY
  12. Install the brake pedal position sensor (1).

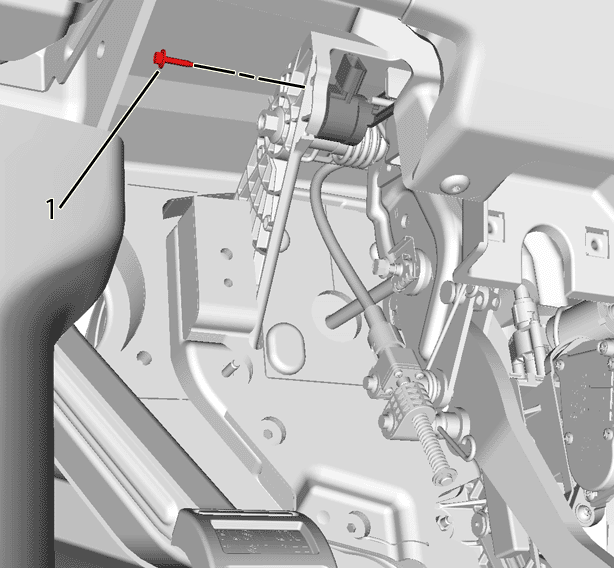

    13. Fig 8: Brake Pedal Position Sensor Bolt
    GM3512827Courtesy of GENERAL MOTORS COMPANY
  13. Install the brake pedal position sensor bolt (1) and tighten to 3 N.m (27 lb in).
  14. Connect the brake pedal position sensor electrical connector.
  15. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
