Installation Procedure

  1. Maneuver the brake pedal assembly into the installed position from under the instrument panel.
  2. Position the power brake booster rearward.
  3. Ensure the power brake booster studs engage the brake pedal assembly.

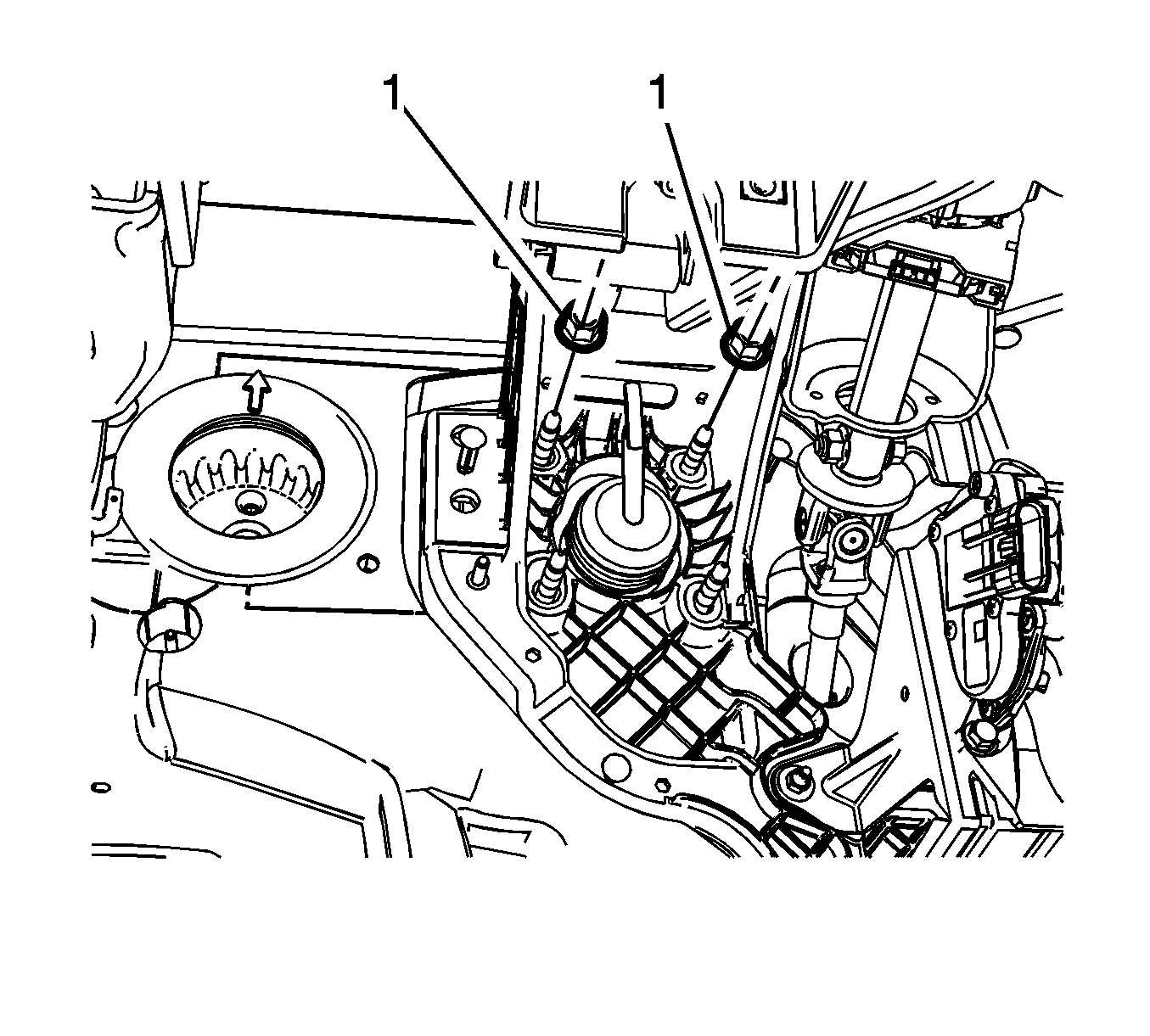

    4. Fig 1: Power Brake Booster Upper Nuts
    GM3269512Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the upper power brake booster nuts (1) and tighten to 33 N.m (24 lb ft).

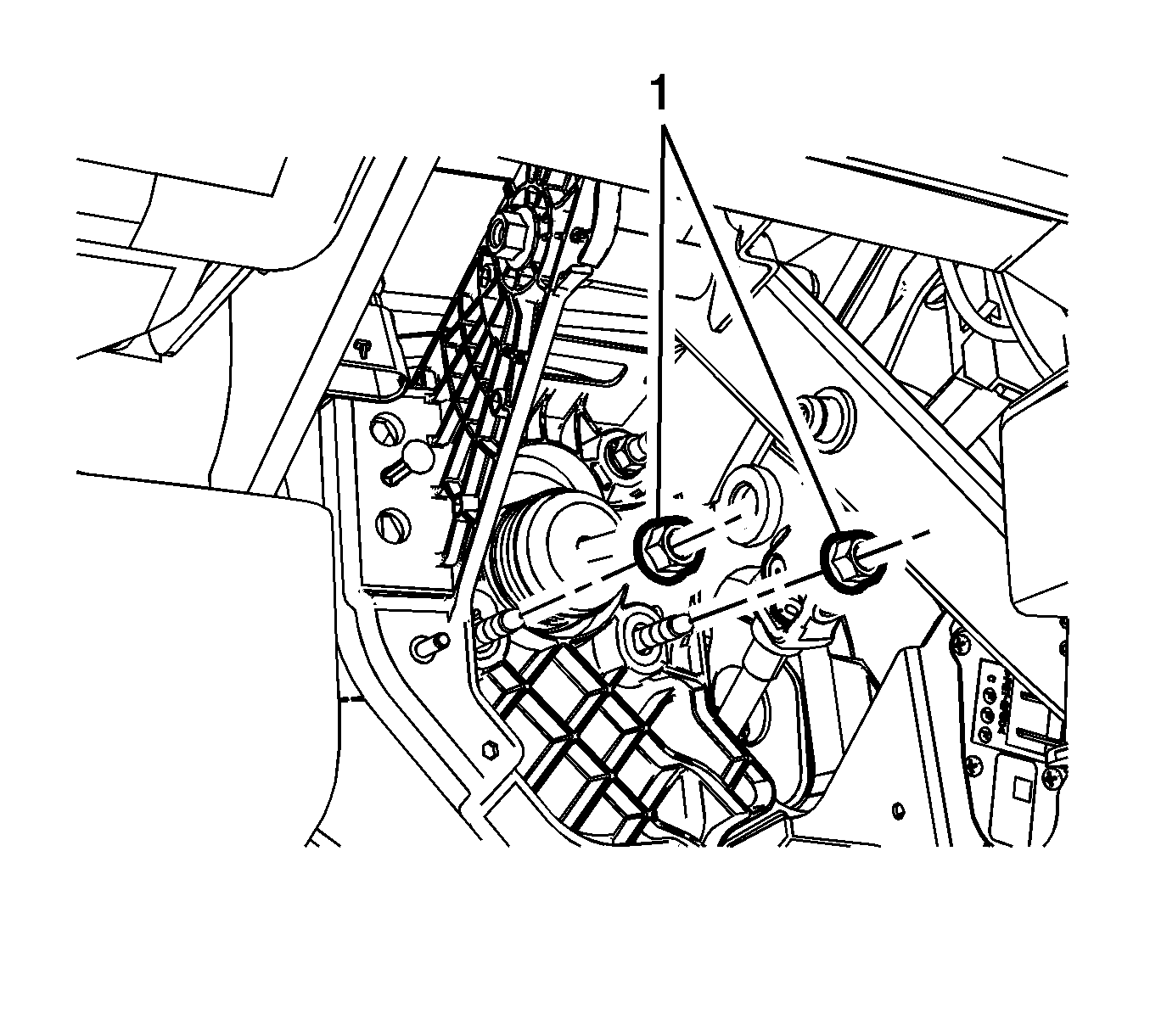

    5. Fig 2: Power Brake Booster Lower Nuts
    GM3269511Courtesy of GENERAL MOTORS COMPANY
  5. Install the lower power brake booster nuts (1) and tighten to 33 N.m (24 lb ft).

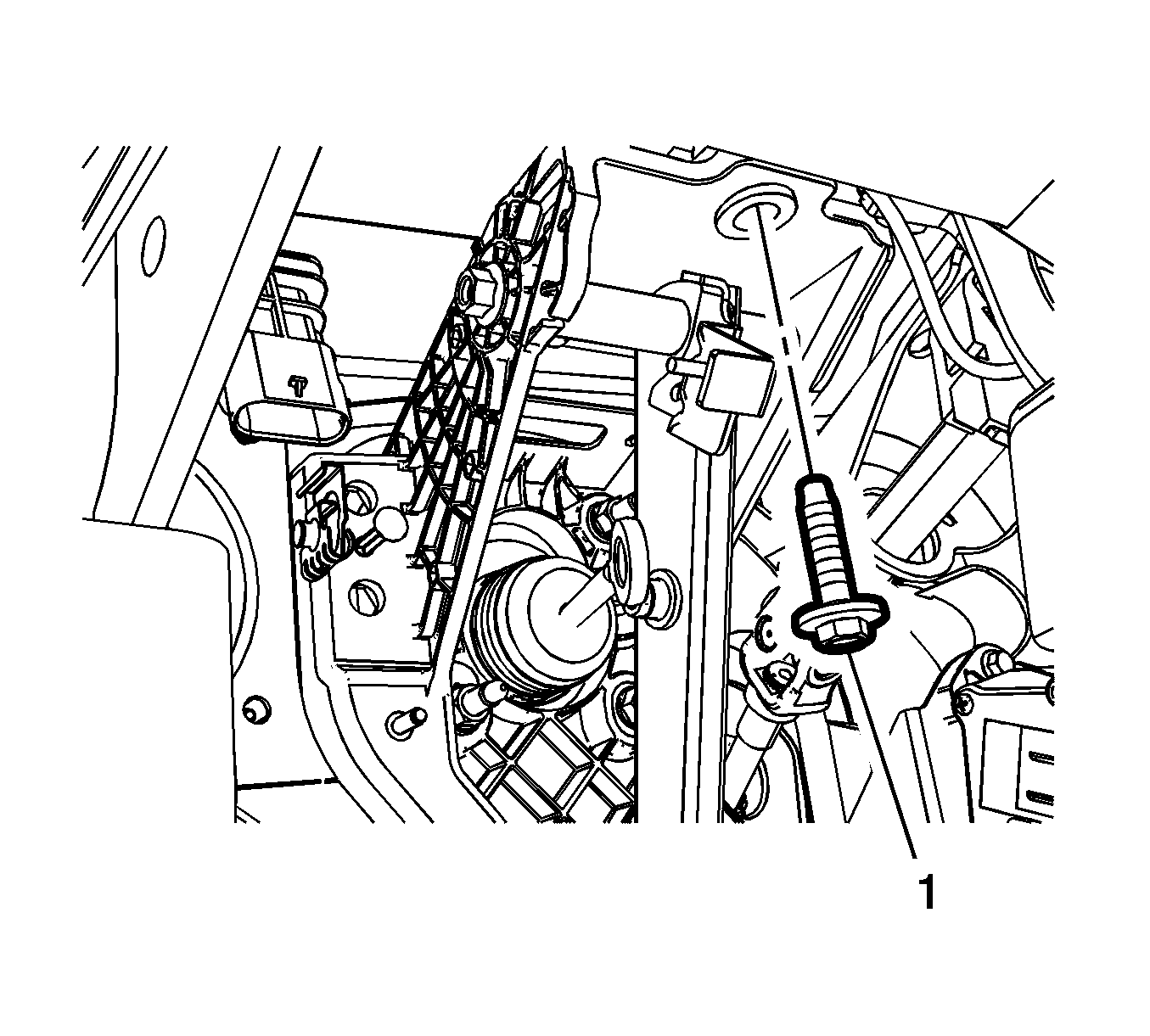

    6. Fig 3: Brake Pedal Assembly Bolt
    GM3269510Courtesy of GENERAL MOTORS COMPANY
  6. Install the brake pedal assembly bolt (1) and tighten to 22 N.m (16 lb ft).

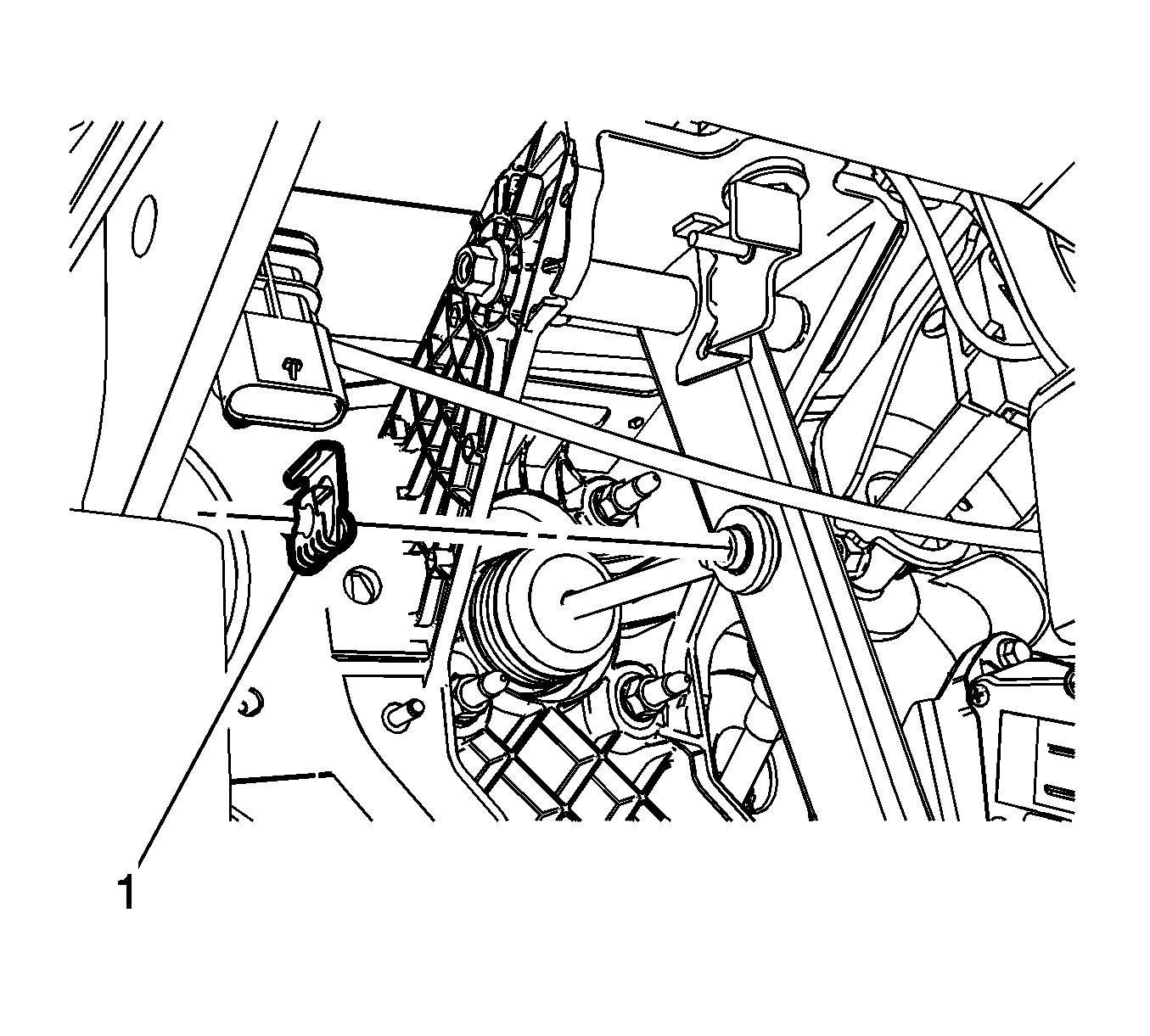

    7. Fig 4: Power Brake Booster Pushrod Retainer Clip
    GM3269509Courtesy of GENERAL MOTORS COMPANY
  7. Connect the power brake booster pushrod to the brake pedal pivot pin.
  8. Install the power brake booster pushrod retainer clip (1).

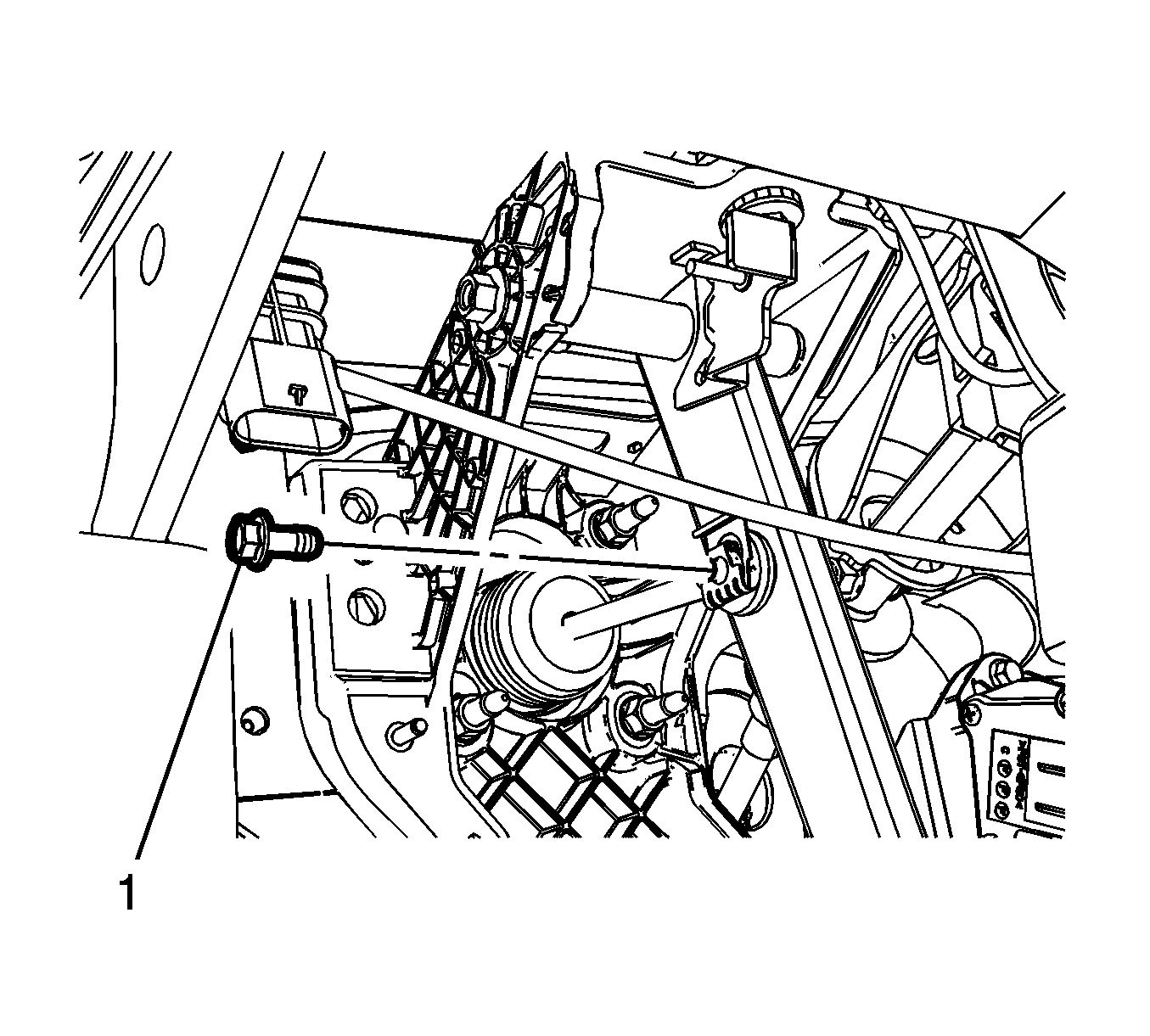

    9. Fig 5: Power Brake Booster Pushrod Retainer Clip Bolt
    GM3269508Courtesy of GENERAL MOTORS COMPANY
  9. Install the power brake booster pushrod retainer clip bolt (1) and tighten to 10 N.m (89 lb in).
  10. Position the electrical harness to the brake pedal bracket assembly and secure to the routing clips.
  11. Connect the accelerator pedal position sensor electrical connector.
  12. Install the steering column. Refer to Steering Column Replacement (N33, N37)Steering Column Replacement (N38) .
  13. Install the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .
