Driver Or Passenger Seat Heater Switch Replacement

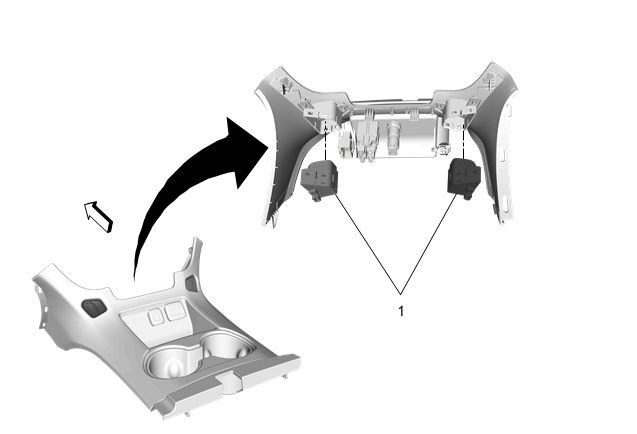

Fig 1: Driver or Passenger Seat Heater Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Chevrolet / GMC) .
1	Driver or Passenger Seat Heater Switch (Qty: 2) Procedure Disconnect the electrical connector. Use a flat bladed plastic trim tool in order to release the seat heater switch from the trim plate.

Callout

Component Name

Preliminary Procedure
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Chevrolet / GMC) .

Driver or Passenger Seat Heater Switch (Qty: 2)

Procedure

Disconnect the electrical connector.
Use a flat bladed plastic trim tool in order to release the seat heater switch from the trim plate.
