Rear Bumper Upper Fascia Replacement (GMC)

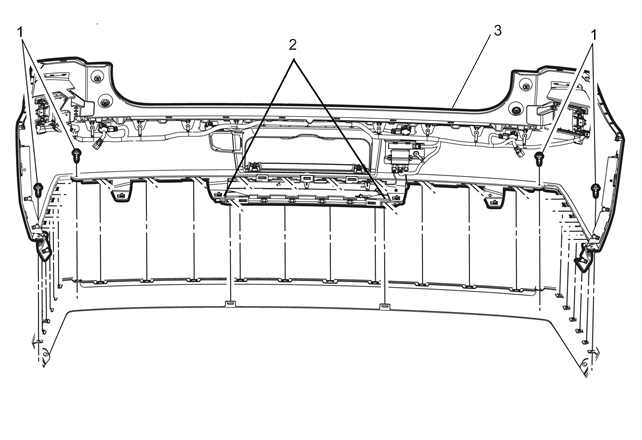

Fig 1: Rear Bumper Upper Fascia (Chevrolet, GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC) . Place the bumper fascia face down on a clean protected surface.
1	Rear Bumper Upper Fascia Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Upper Fascia Nut (Qty: 2) NOTE: This is actually a retainer/clip.
3	Rear Bumper Upper Fascia Procedure Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia. Transfer part as necessary.
