Rear Bumper Fascia Tail Lamp Opening Bracket Replacement

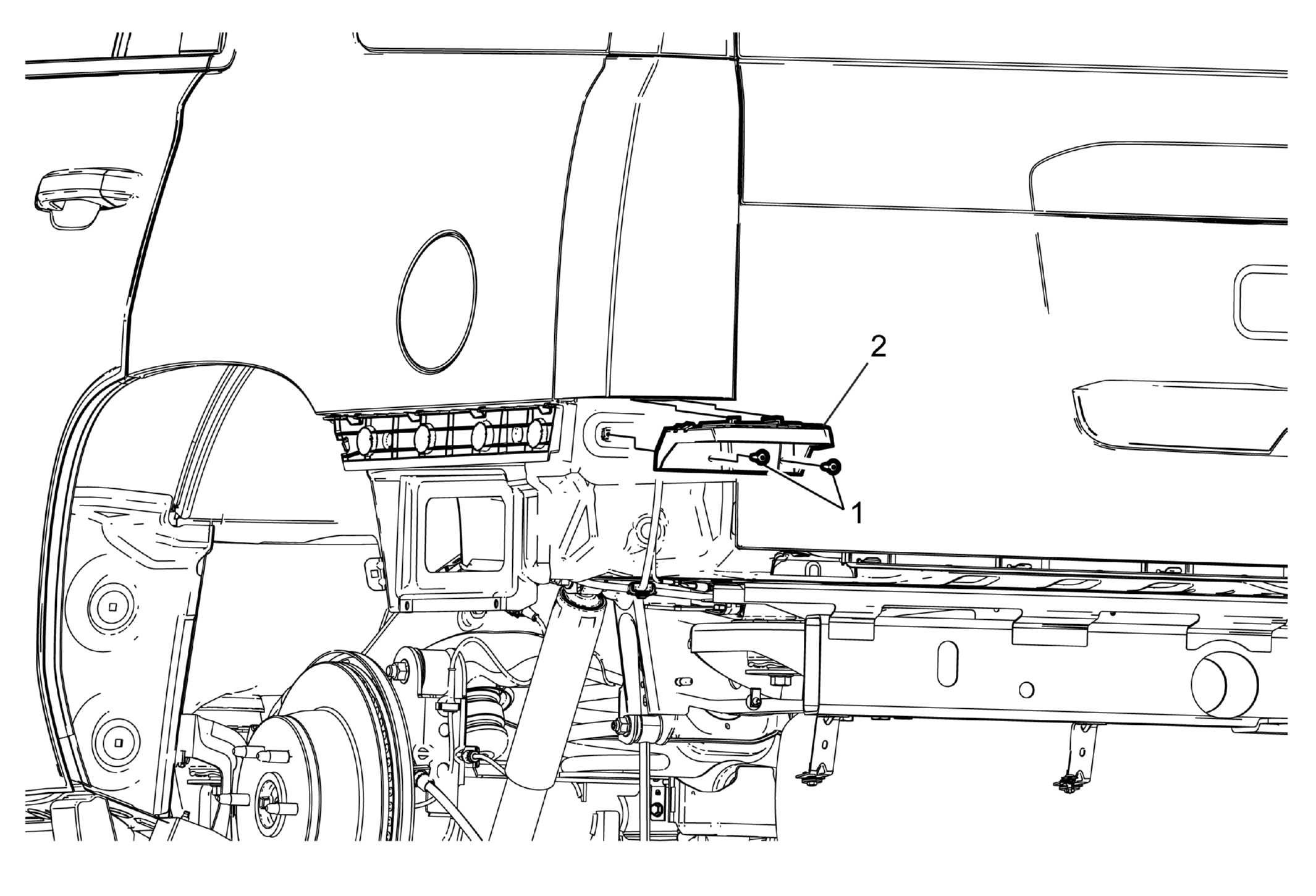

Fig 1: Rear Bumper Fascia Tail Lamp Opening Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC) Rear Bumper Fascia Replacement (Cadillac) .
1	Rear Bumper Fascia Tail Lamp Opening Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Bumper Fascia Tail Lamp Opening Bracket
