Rear Bumper Fascia Step Pad Replacement

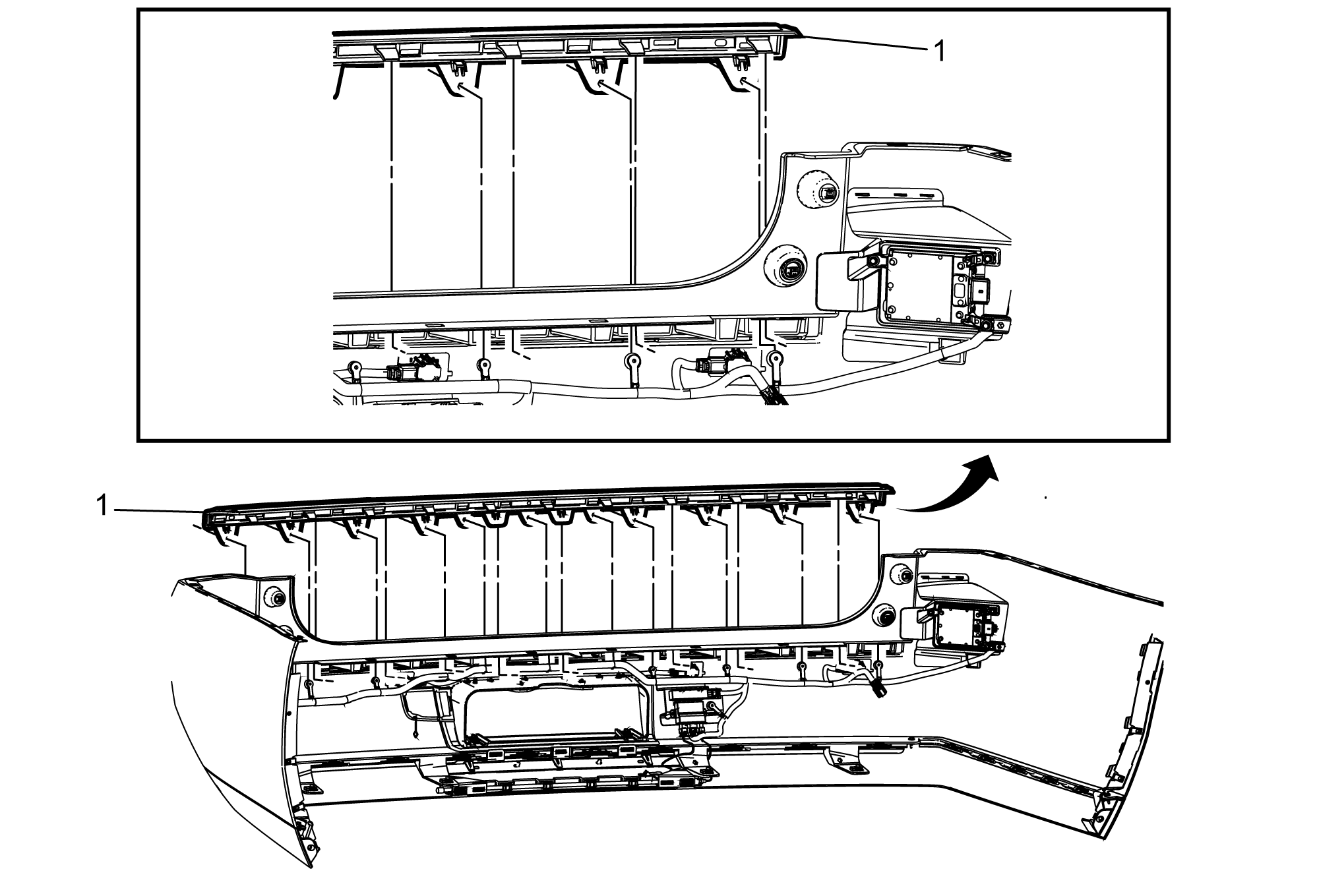

Fig 1: Rear Bumper Fascia Step Pad
GM3648534Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC) Rear Bumper Fascia Replacement (Cadillac) .
1 Rear Fascia Step Pad

Procedure

  1. Release the retainers from the rear object alarm sensor wiring harness.
  2. Release the remaining tabs from the rear bumper fascia.
