Rear Bumper Fascia Guide Replacement (Long Wheelbase)

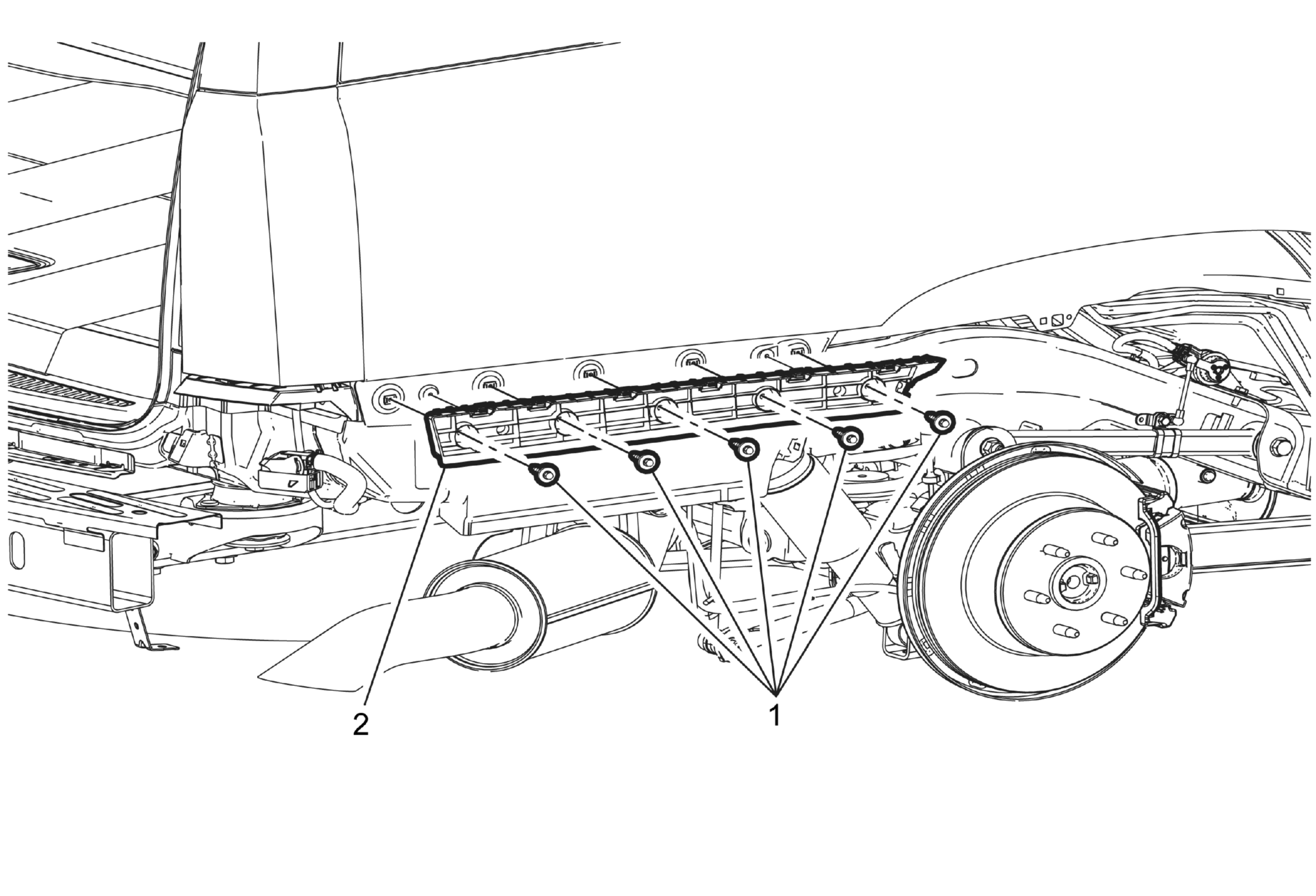

Fig 1: Rear Bumper Fascia Guide (Long Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC) Rear Bumper Fascia Replacement (Cadillac) .
1	Rear Bumper Fascia Guide Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Bumper Fascia Guide
