Radiator Grille Filler Replacement (Chevrolet)

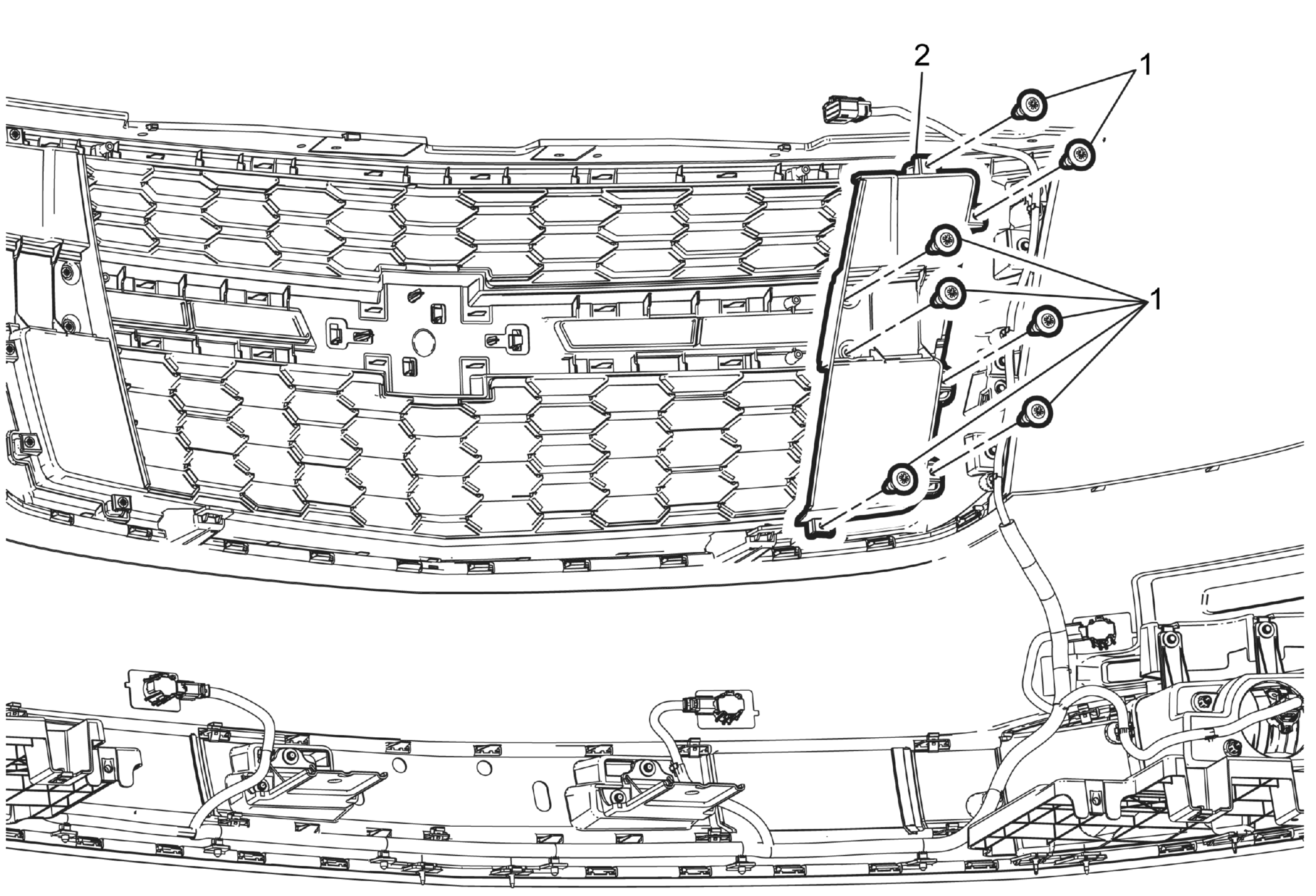

Fig 1: Radiator Grille Filler (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) . Place the bumper fascia face down on a clean protected surface.
1	Radiator Grille Filler Bolt (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radiator Grille Filler

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) .
Place the bumper fascia face down on a clean protected surface.

Radiator Grille Filler Bolt (Qty: 7)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radiator Grille Filler
