Radiator Air Lower Deflector Replacement (GMC)

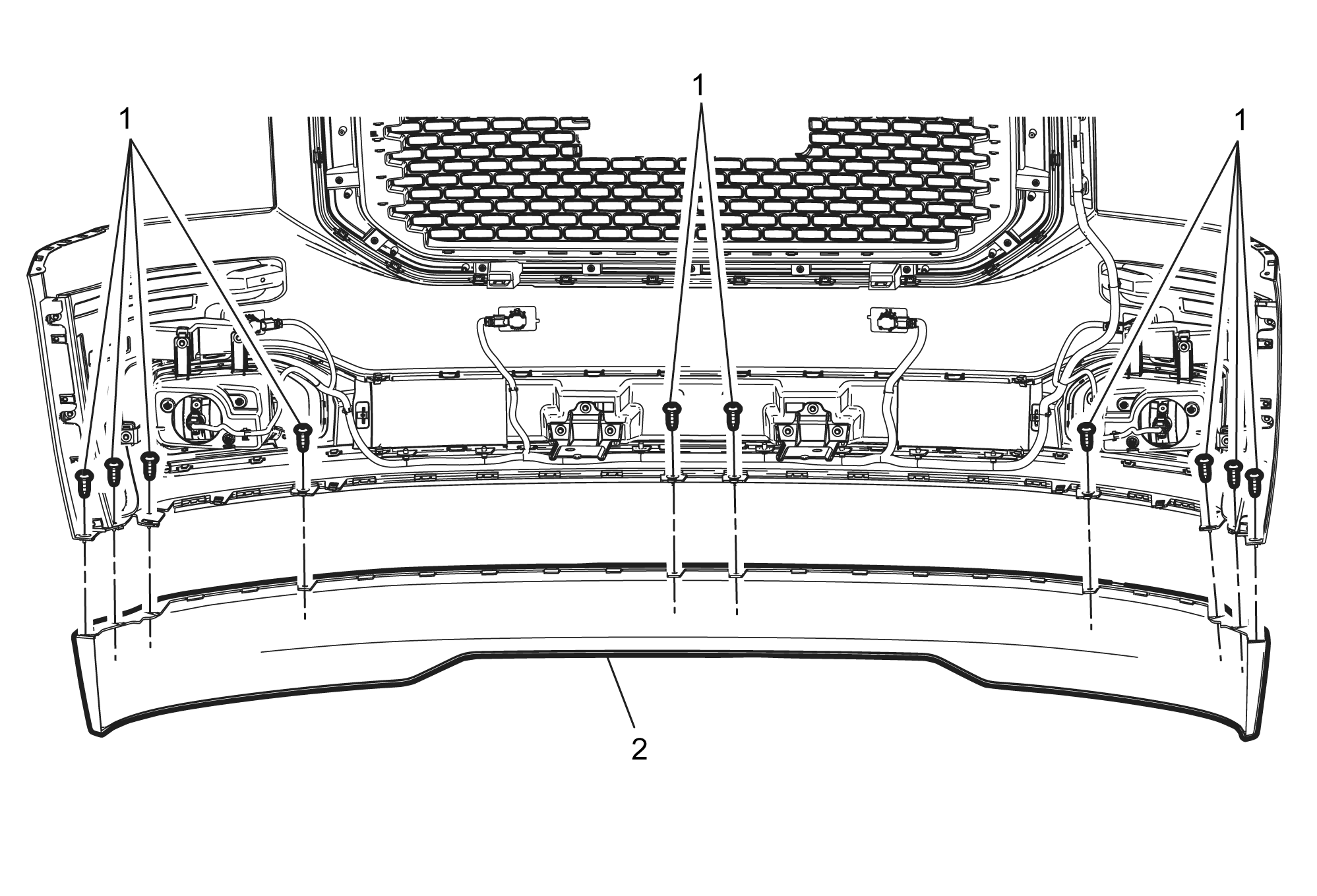

Fig 1: Radiator Air Lower Deflector (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC) Place the bumper fascia face down on a clean protected surface. Remove both of the front bumper outer front fillers from the fascia. Refer to Front Bumper Outer Front Filler Replacement (Cadillac, GMC)
1	Radiator Air Lower Deflector Screw (Qty: 10) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Radiator Air Lower Deflector Procedure Release the front bumper fascia air deflector retainer tabs from the fascia.

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC)
Place the bumper fascia face down on a clean protected surface.
Remove both of the front bumper outer front fillers from the fascia. Refer to Front Bumper Outer Front Filler Replacement (Cadillac, GMC)

Radiator Air Lower Deflector Screw (Qty: 10)

CAUTION:

Tighten
3 N.m (27 lb in)

Radiator Air Lower Deflector
Procedure
Release the front bumper fascia air deflector retainer tabs from the fascia.
