Radiator Air Lower Deflector Replacement (Cadillac)

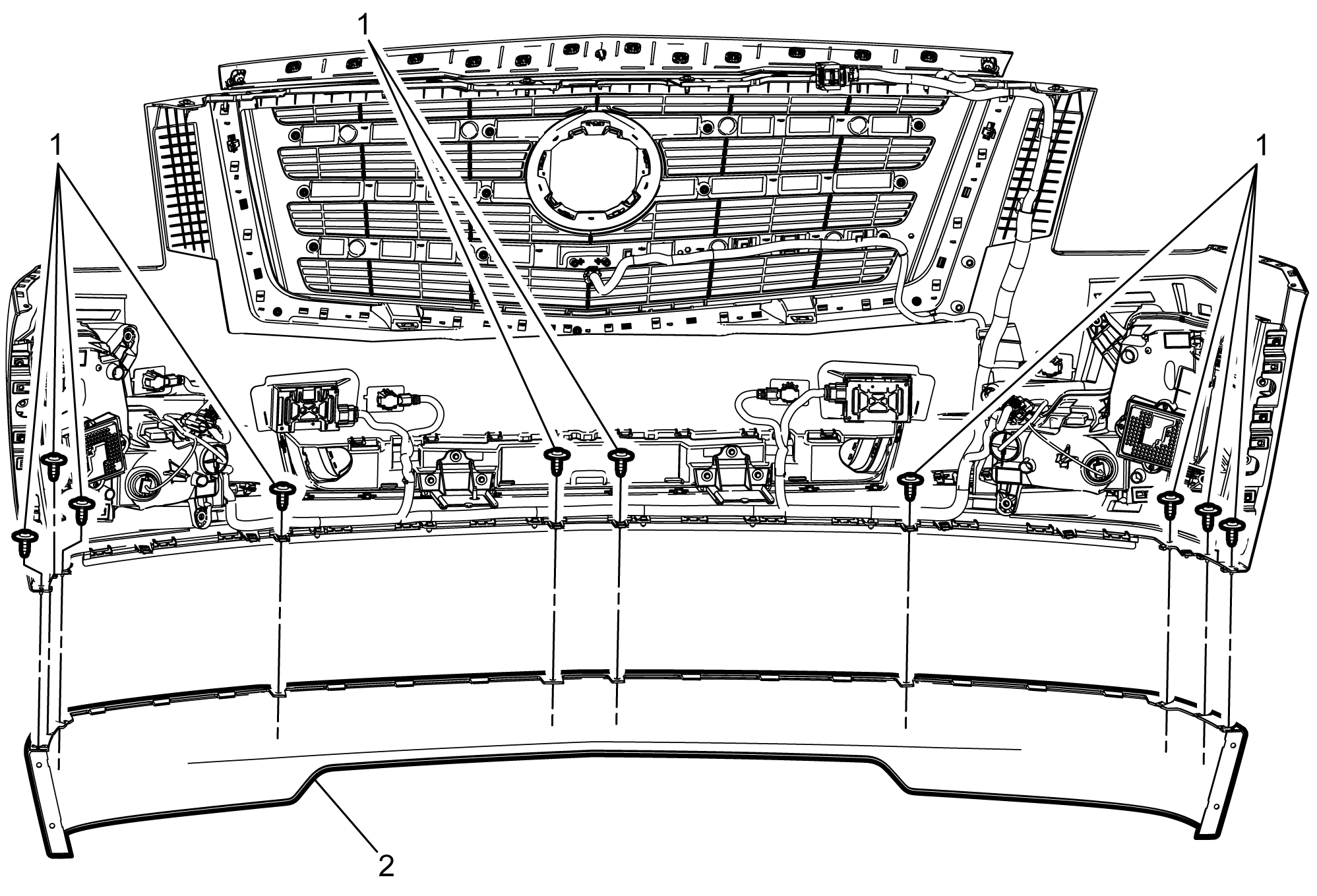

Fig 1: Radiator Air Lower Deflector (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper outer front filler. Refer to Front Bumper Outer Front Filler Replacement (Cadillac, GMC)  Place the bumper fascia face down on a clean protected surface.
1	Radiator Air Lower Deflector Screw (Qty: 10) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
2	Radiator Air Lower Deflector Procedure  Release the front bumper fascia air deflector retainer tabs from the fascia.
