Front Bumper Outer Front Filler Replacement (Chevrolet)

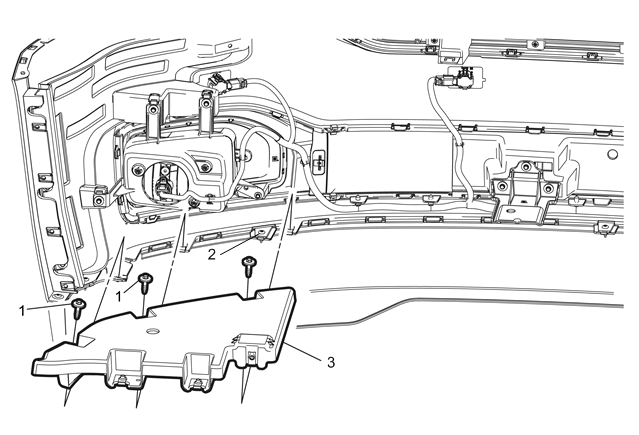

Fig 1: Front Bumper Outer Front Filler (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the parking and front fog lamp bracket. Refer to Parking and Front Fog Lamp Bracket Replacement (Chevrolet)
1	Front Bumper Outer Front Filler Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
2	Front Bumper Fascia Support Brace Bolt Tighten  3 N.m (27 lb in)
3	Front Bumper Outer Front Filler
