Front Bumper Fascia Lower Molding Replacement (Chevrolet)

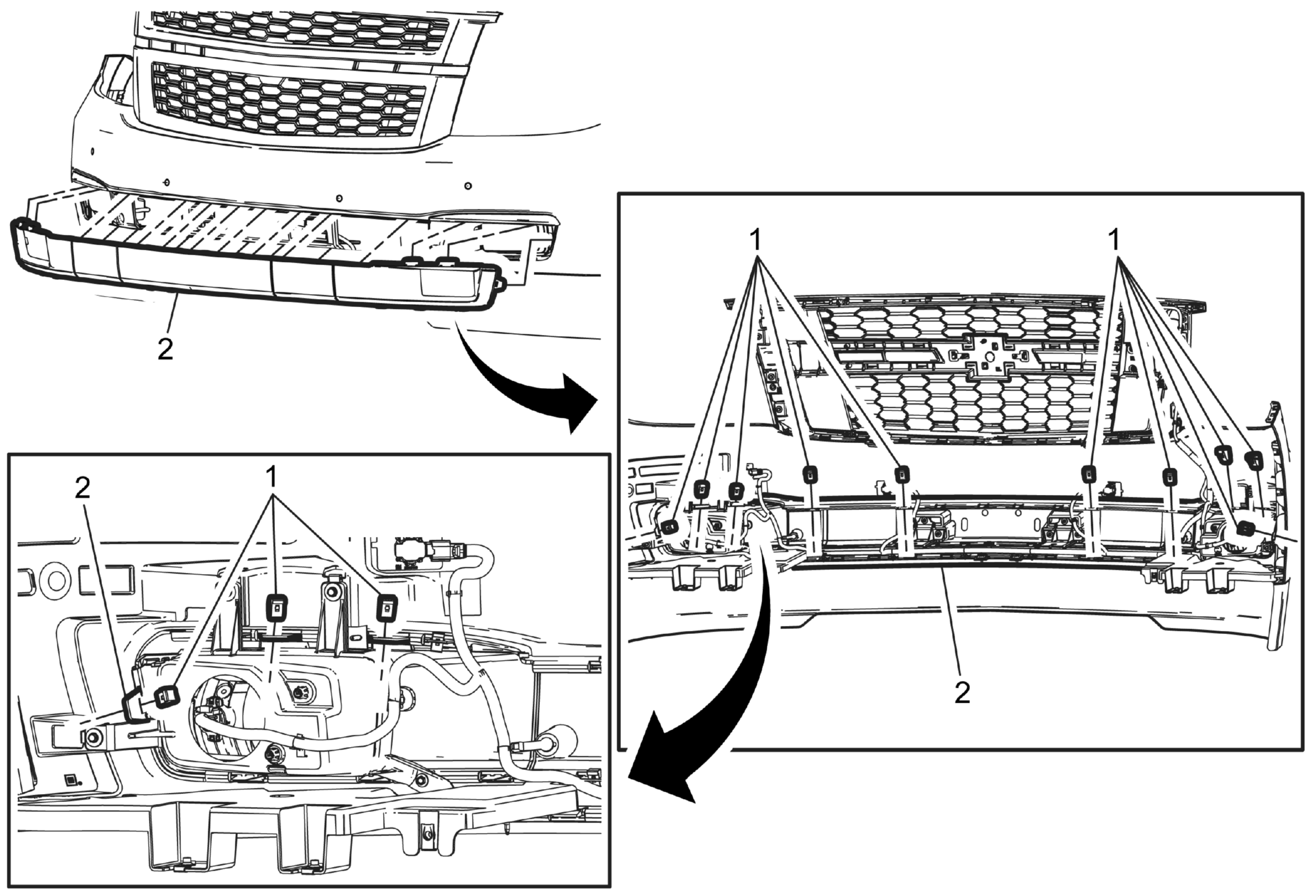

Fig 1: Front Bumper Fascia Lower Molding (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) . Place the bumper fascia face down on a clean protected surface. Remove both of the parking and front fog lamp brackets. Refer to Parking and Front Fog Lamp Bracket Replacement (Chevrolet)
1	Front Bumper Fascia Lower Molding Clip (Qty: 10)
2	Front Bumper Fascia Lower Molding Procedure Using a suitable plastic flat-bladed tool, release the retainer tabs from the front bumper fascia lower molding while slowly pulling the fascia lower molding from the front fascia.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) .
Place the bumper fascia face down on a clean protected surface.
Remove both of the parking and front fog lamp brackets. Refer to Parking and Front Fog Lamp Bracket Replacement (Chevrolet)

Front Bumper Fascia Lower Molding Clip (Qty: 10)

Front Bumper Fascia Lower Molding
Procedure
Using a suitable plastic flat-bladed tool, release the retainer tabs from the front bumper fascia lower molding while slowly pulling the fascia lower molding from the front fascia.
