Front Bumper Fascia Lower Molding Replacement (Chevrolet Above Fog Lamp)

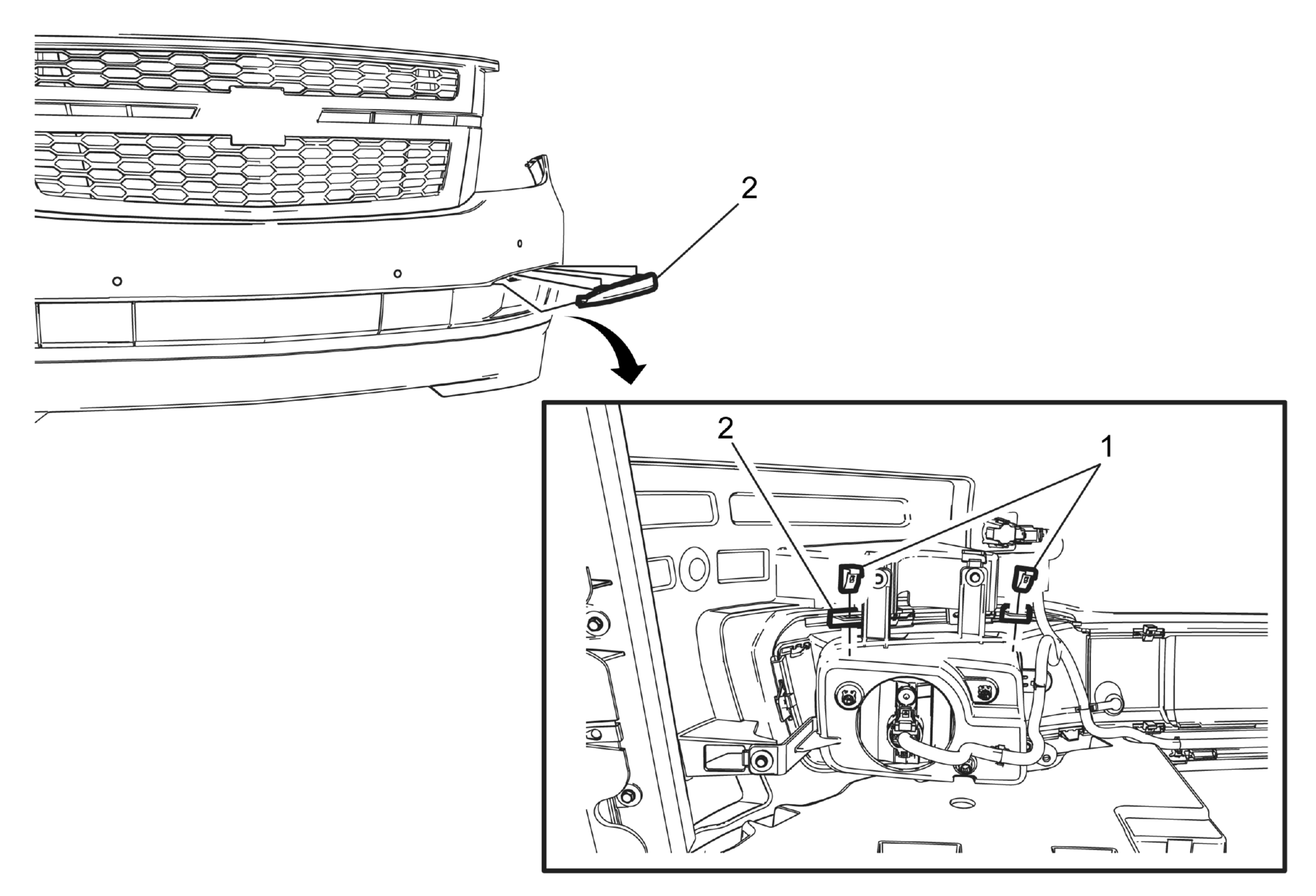

Fig 1: Front Bumper Fascia Lower Molding (Chevrolet above fog lamp)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) . Place the bumper fascia face down on a clean protected surface.
1	Front Bumper Fascia Lower Molding Clip (Qty: 2)
2	Front Bumper Fascia Lower Molding Procedure Remove the molding from the front bumper fascia.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) .
Place the bumper fascia face down on a clean protected surface.

Front Bumper Fascia Lower Molding Clip (Qty: 2)

Front Bumper Fascia Lower Molding
Procedure
Remove the molding from the front bumper fascia.
