Front Bumper Fascia Guide Replacement (GMC)

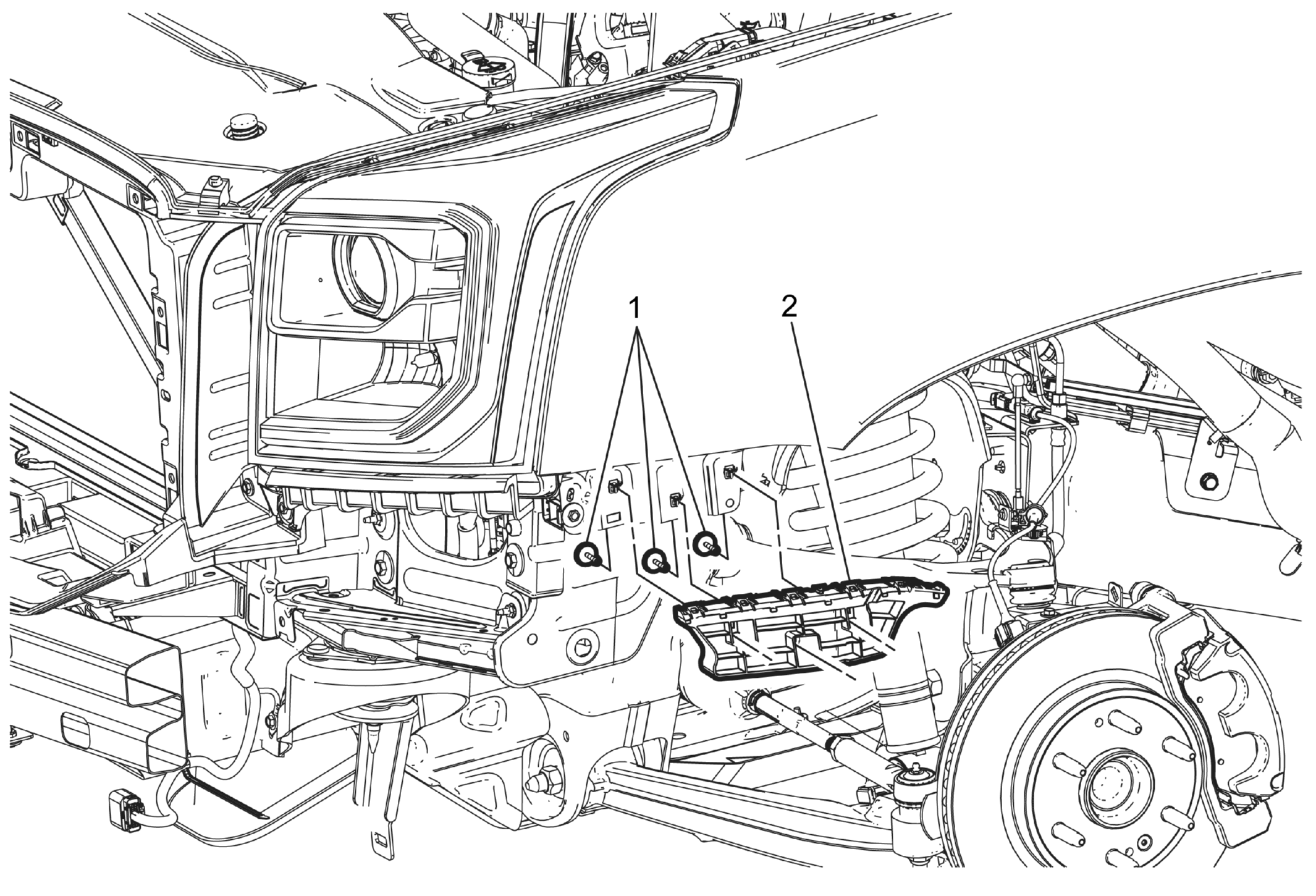

Fig 1: Front Bumper Fascia Guide (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC) .
1	Front Bumper Fascia Guide Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Bumper Fascia Guide
