Rear License Plate Lamp Replacement

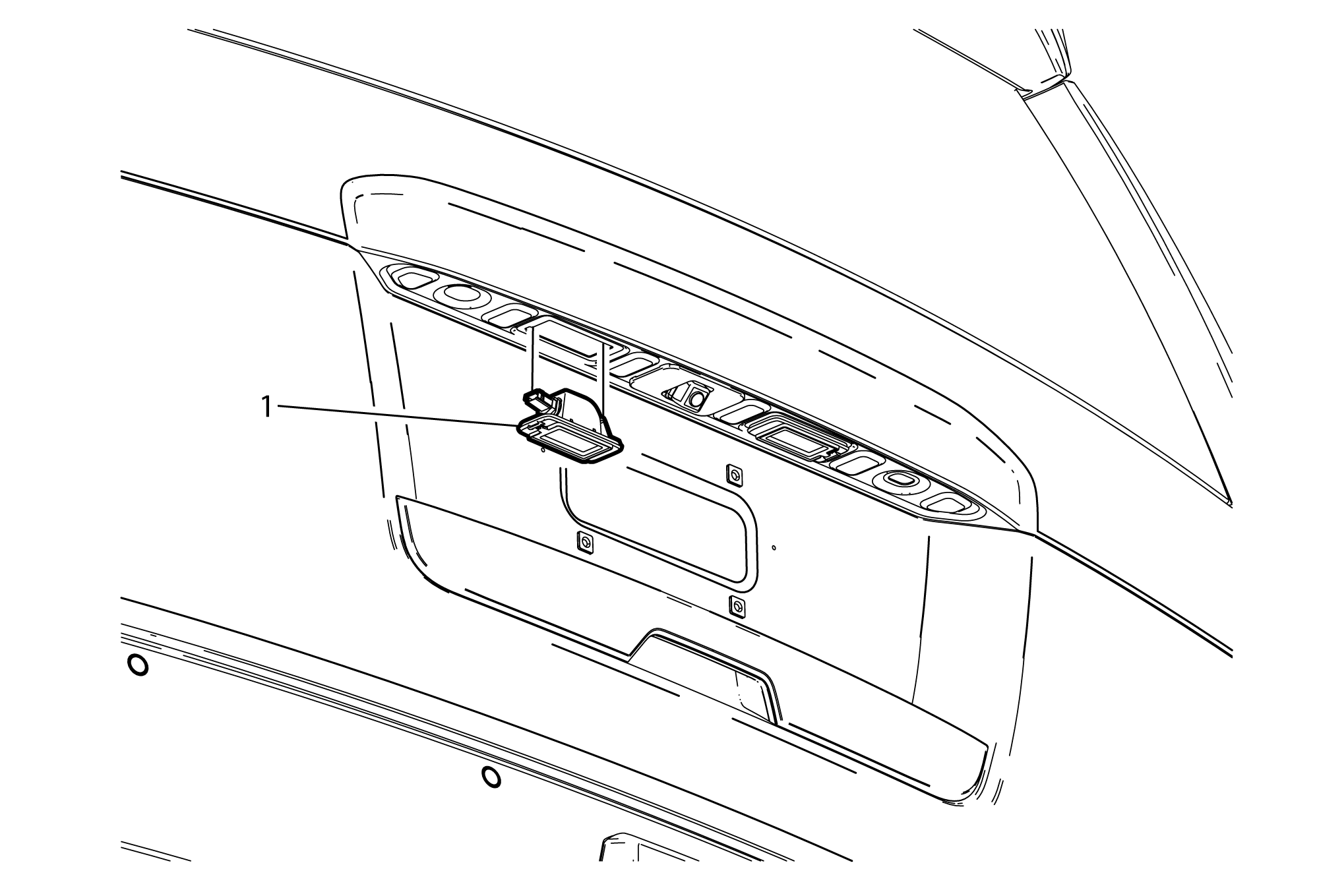

Fig 1: Rear License Plate Lamp
GM3637747Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear License Plate Lamp

Procedure

  1. Use a flat bladed tool to compress the outboard end of the rear license plate lamp and release from the rear liftgate.
  2. Disconnect electrical connector and remove from vehicle.
