Headlamp Switch Replacement (Chevrolet/GMC)

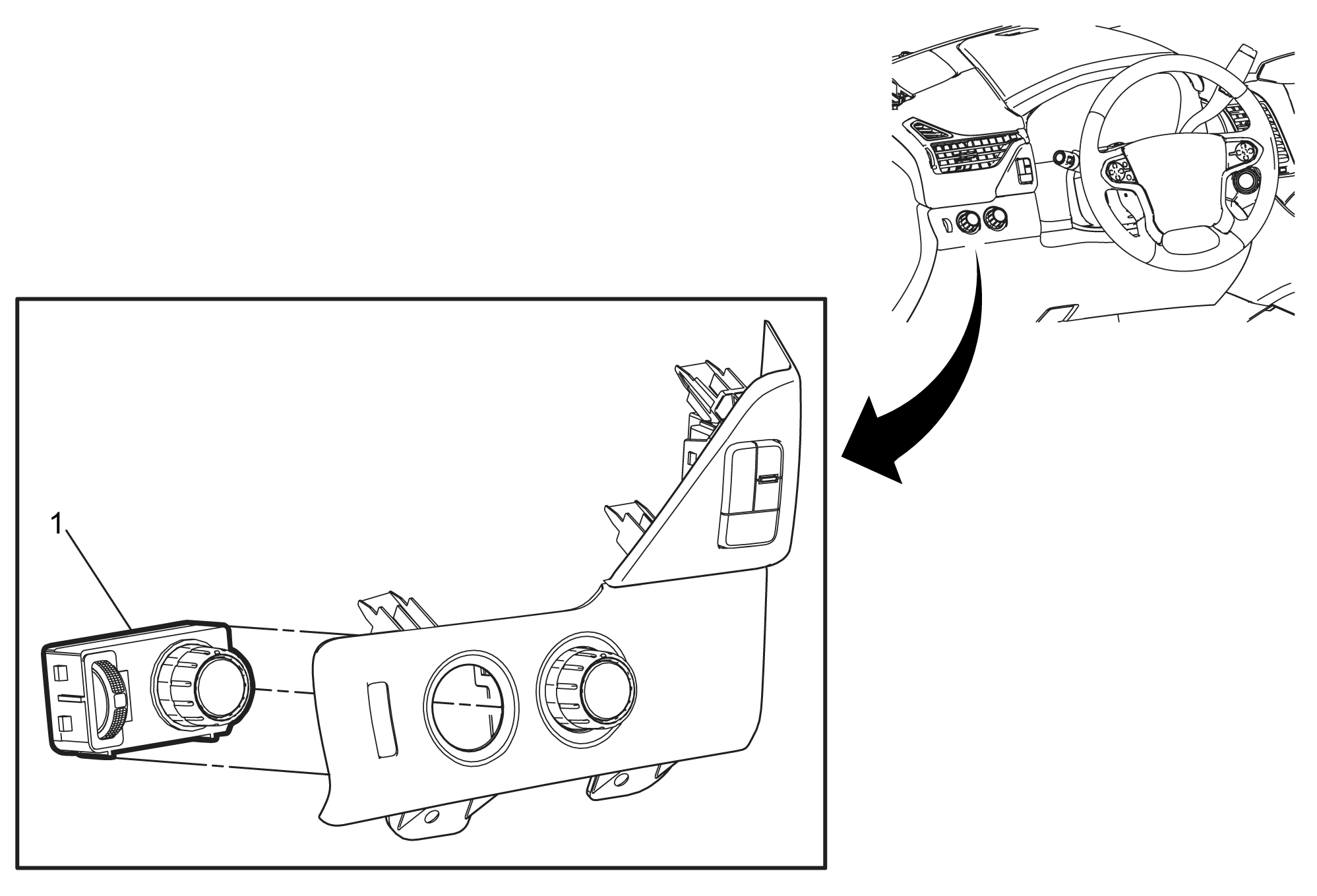

Fig 1: Headlamp Switch (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement (Chevrolet/GMC) .
1	Headlamp Switch Procedure  Using the appropriate tool gently depress tabs to remove the switch assembly from the bezel.
