Headlamp Bulb Replacement (GMC, High-Beam, Left Side)

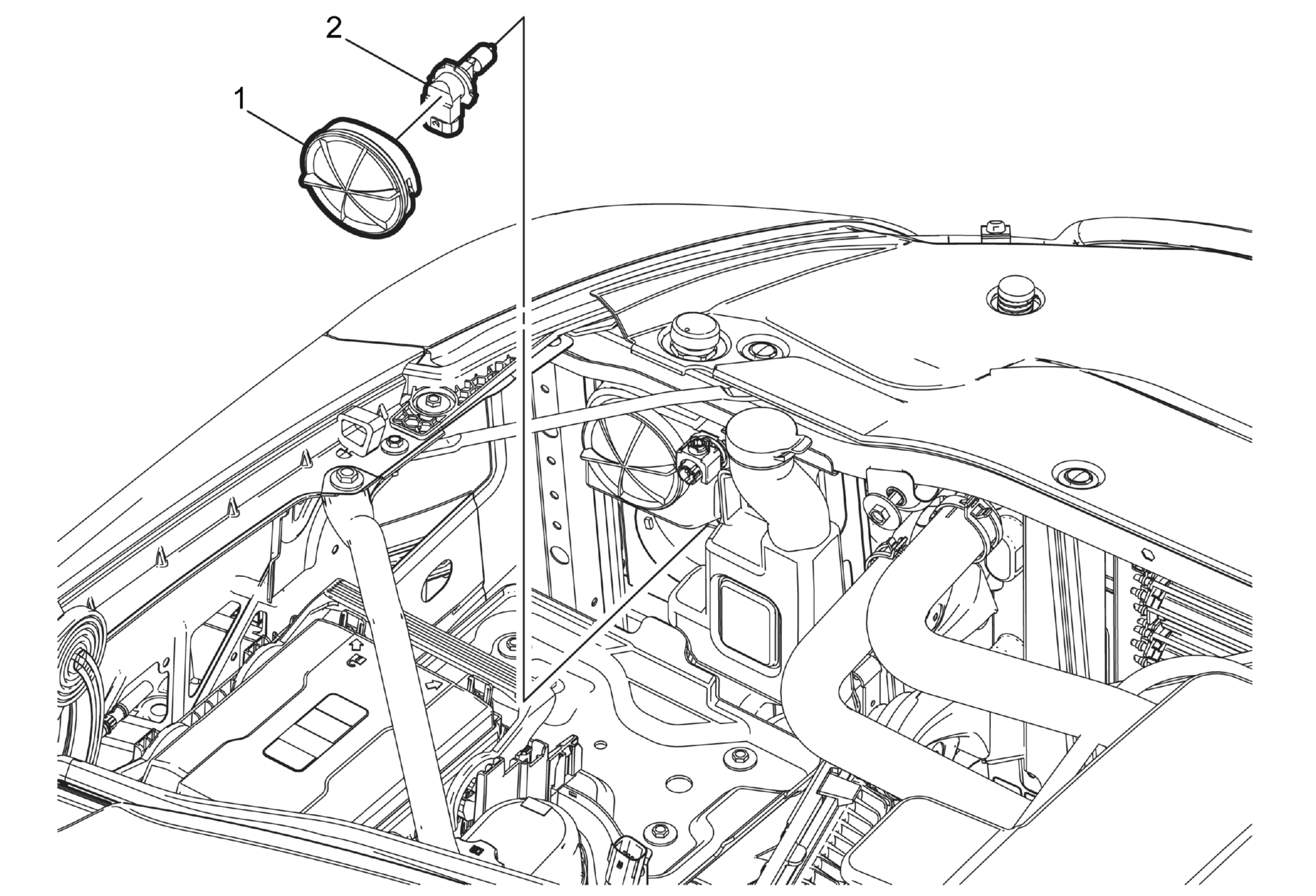

Fig 1: Headlamp Bulb (GMC, High-Beam, Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood. Remove the auxiliary battery if equipped. Refer to Auxiliary Battery Replacement (9C1) .
1	Headlamp Bulb Access Cover Procedure Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.
2	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Rotate the headlamp bulb counterclockwise and pull from the headlamp.

Callout

Component Name

Preliminary Procedure

Open and support the hood.
Remove the auxiliary battery if equipped. Refer to Auxiliary Battery Replacement (9C1) .

Headlamp Bulb Access Cover
Procedure
Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.

Headlamp Bulb

WARNING:

Procedure
