Headlamp Bulb Replacement (Chevrolet, High-Beam, Right Side)

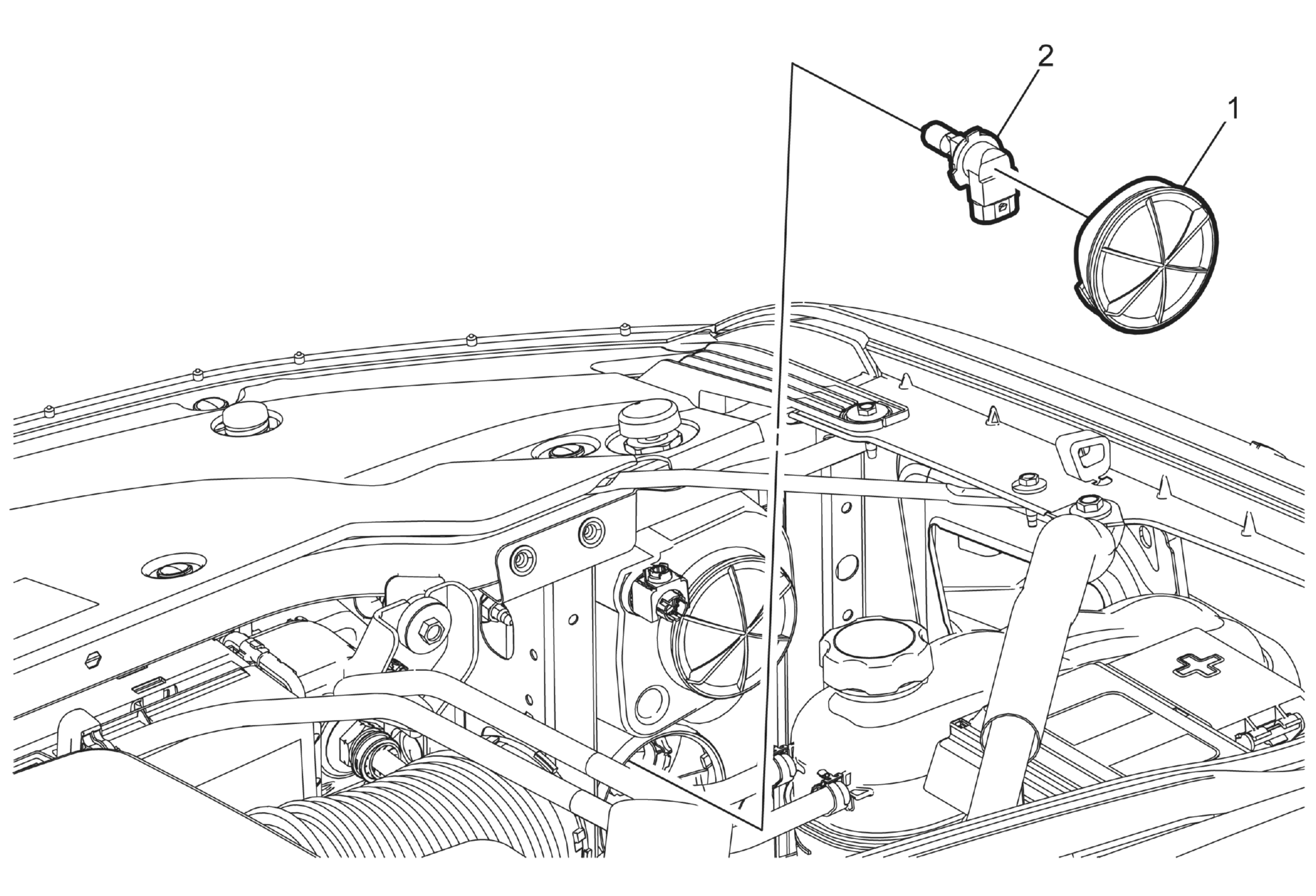

Fig 1: Headlamp Bulb (Chevrolet, High-Beam, Right Side)
GM3638809Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Reposition the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (Top of Radiator L83 L86)Radiator Air Upper Baffle and Deflector Replacement (Right of Radiator L83 L86) .
1 Headlamp Bulb Access Cover
Procedure
Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.
2 Headlamp Bulb-High Beam
WARNING:

Refer to Halogen Bulb Warning .

Procedure

  1. Disconnect the electrical connector.
  2. Rotate the headlamp bulb counterclockwise and pull from the headlamp.
