Headlamp Bulb Replacement (Chevrolet, Halogen, Right Side)

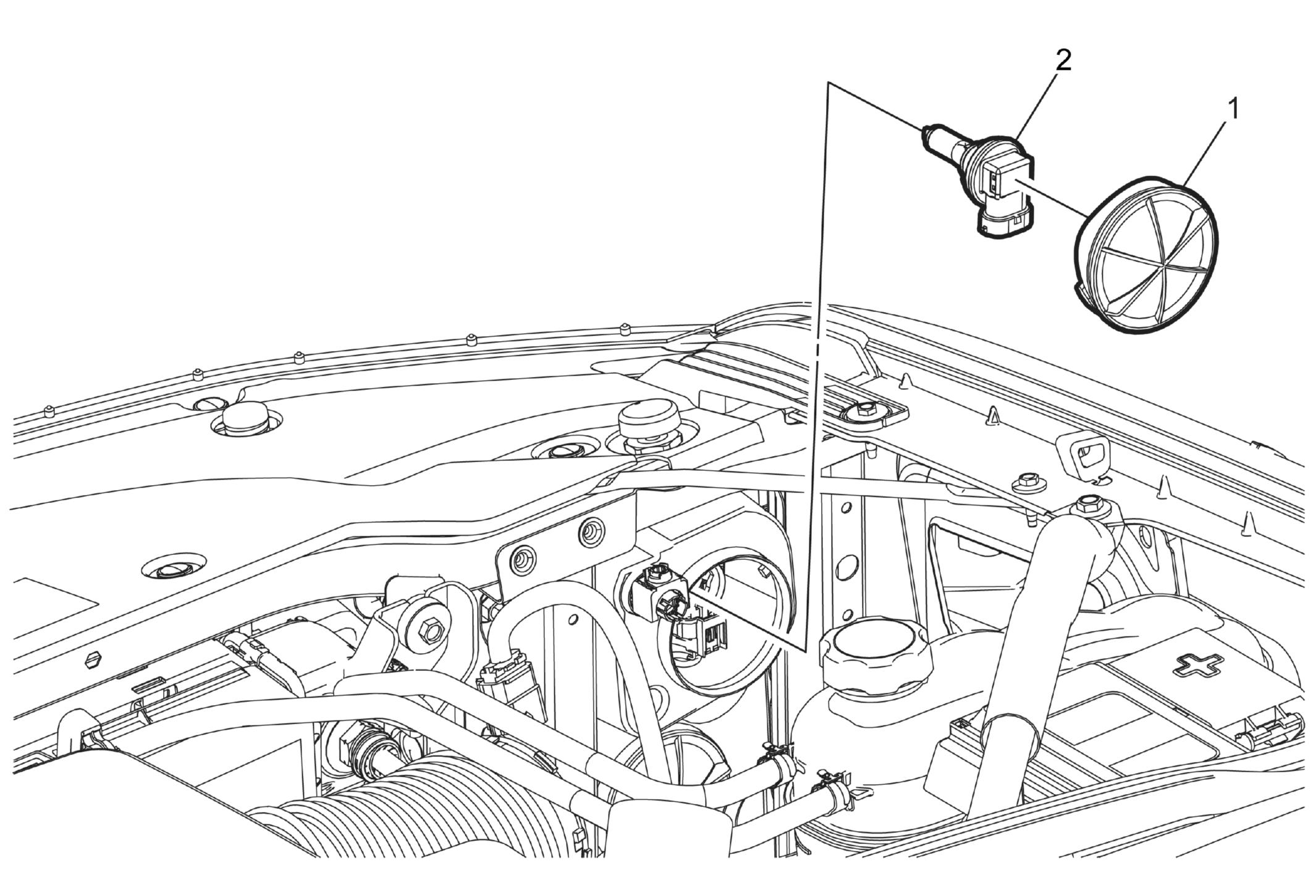

Fig 1: Headlamp Bulb (Chevrolet, Halogen, Right Side)
GM3638804Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1 Headlamp Bulb Access Cover

Procedure

  1. Pull back the flaps on the radiator support baffle to access the headlamp bulb access cover.
  2. Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.
2 Headlamp Bulb
WARNING:

Refer to Halogen Bulb Warning .

Procedure

  1. Pull back the flaps on the radiator support baffle to access the headlamp bulb.
  2. Disconnect the electrical connector.
  3. Rotate the headlamp bulb counterclockwise and pull from the headlamp.
