Front Fog Lamp Bulb Replacement

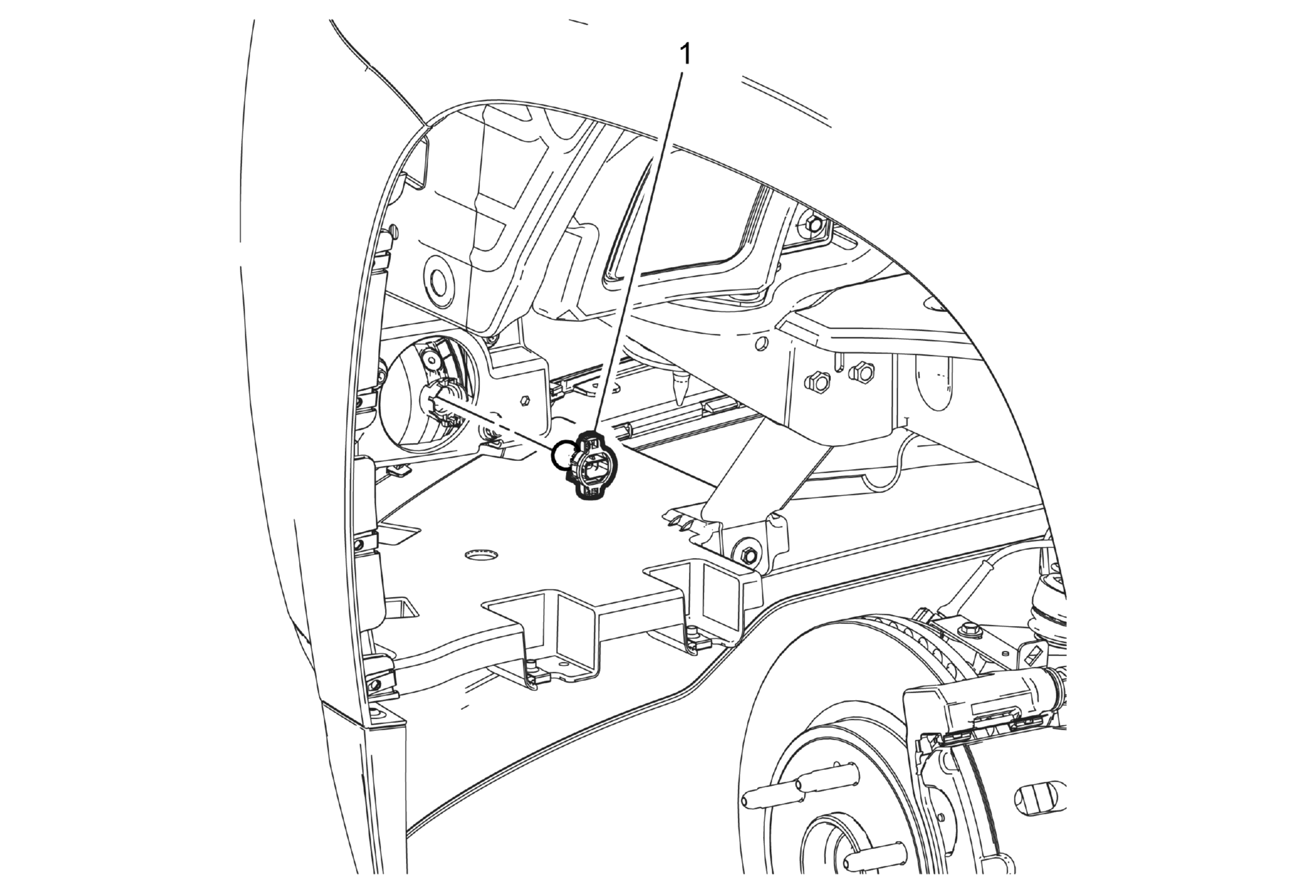

Fig 1: Front Fog Lamp Bulb
GM3637672Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Reposition the front wheelhouse liner-left side as necessary to gain access to the bulb. Refer to Front Wheelhouse Liner Replacement - Left Side (Cadillac)Front Wheelhouse Liner Replacement - Left Side (GMC)Front Wheelhouse Liner Replacement - Left Side (Chevrolet) .
  2. Reposition the front wheelhouse liner-right side as necessary to gain access to the bulb. Refer to Front Wheelhouse Liner Replacement - Right Side (Cadillac)Front Wheelhouse Liner Replacement - Right Side (Chevrolet)Front Wheelhouse Liner Replacement - Right Side (GMC) .
1 Front Fog Lamp Bulb

Procedure

  1. Disconnect the electrical connector.
  2. Compress the front fog lamp bulbs locking tabs and pull straight back.
