Emergency Vehicle Roof Lamp Switch Replacement

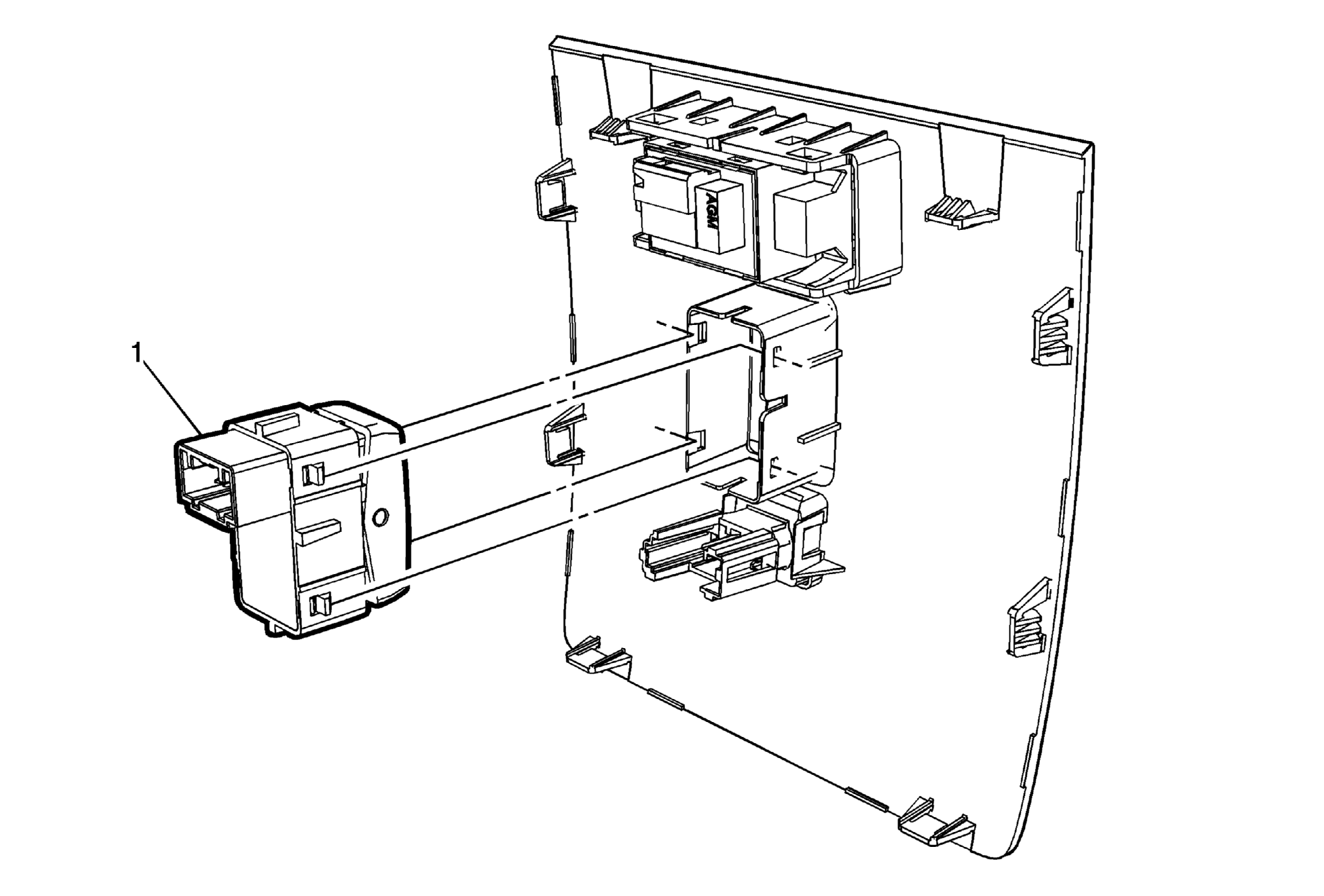

Fig 1: Emergency Vehicle Roof Lamp Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the roof console opening trim plate. Refer to Roof Console Opening Trim Plate Replacement .
1	Emergency Vehicle Lamp Switch Procedure  Release the tabs and remove the switch.
