Cargo Center Courtesy Lamp Replacement

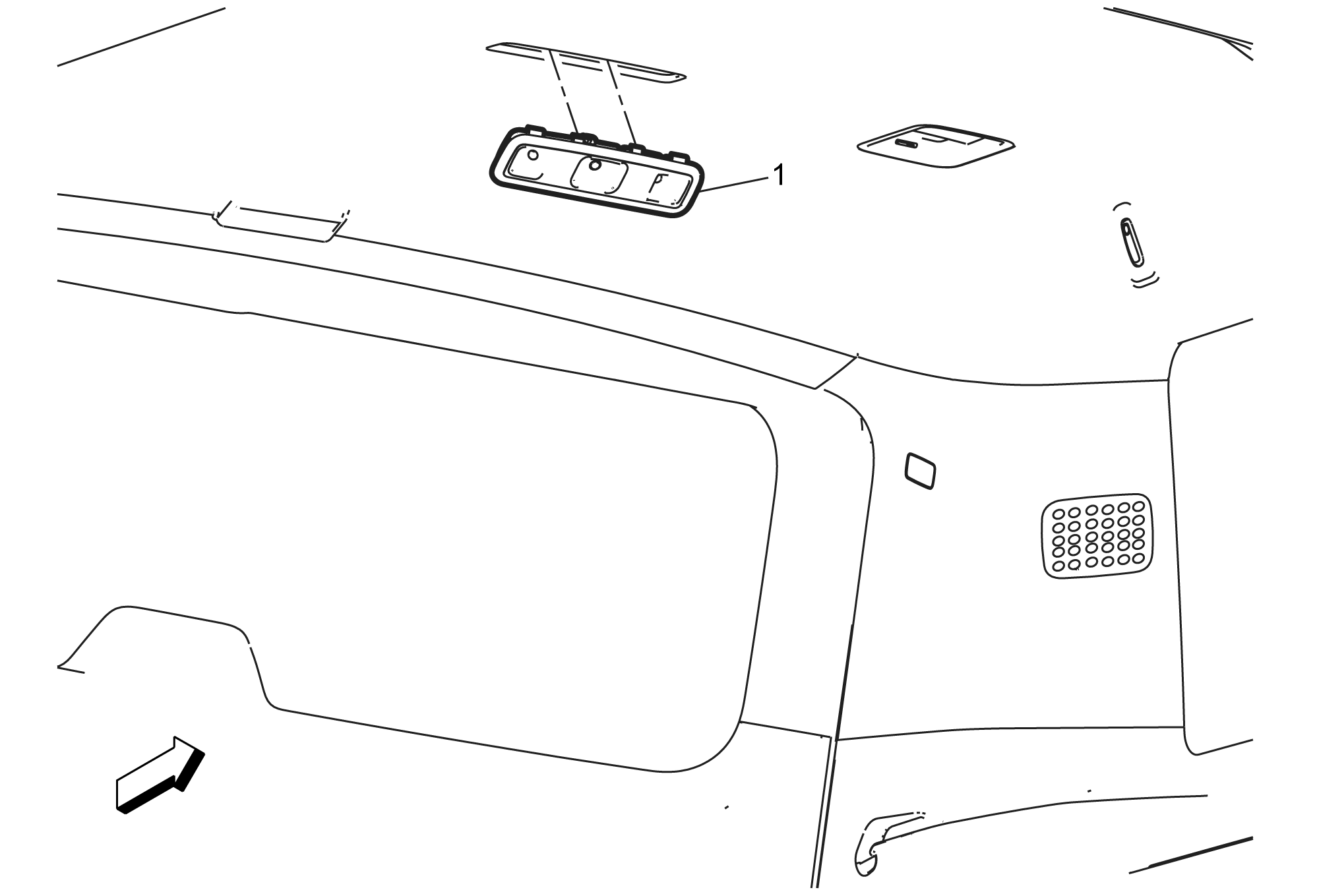

Fig 1: Cargo Center Courtesy Lamp
GM3639257Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Cargo Center Courtesy Lamp

Procedures

  1. Grasp the courtesy lamp assembly and pull downward to release the retainer clips securing the assembly to the headliner.
  2. Disconnect the electrical connections.
