Radio Control Switch Replacement - Steering Wheel (Cadillac)

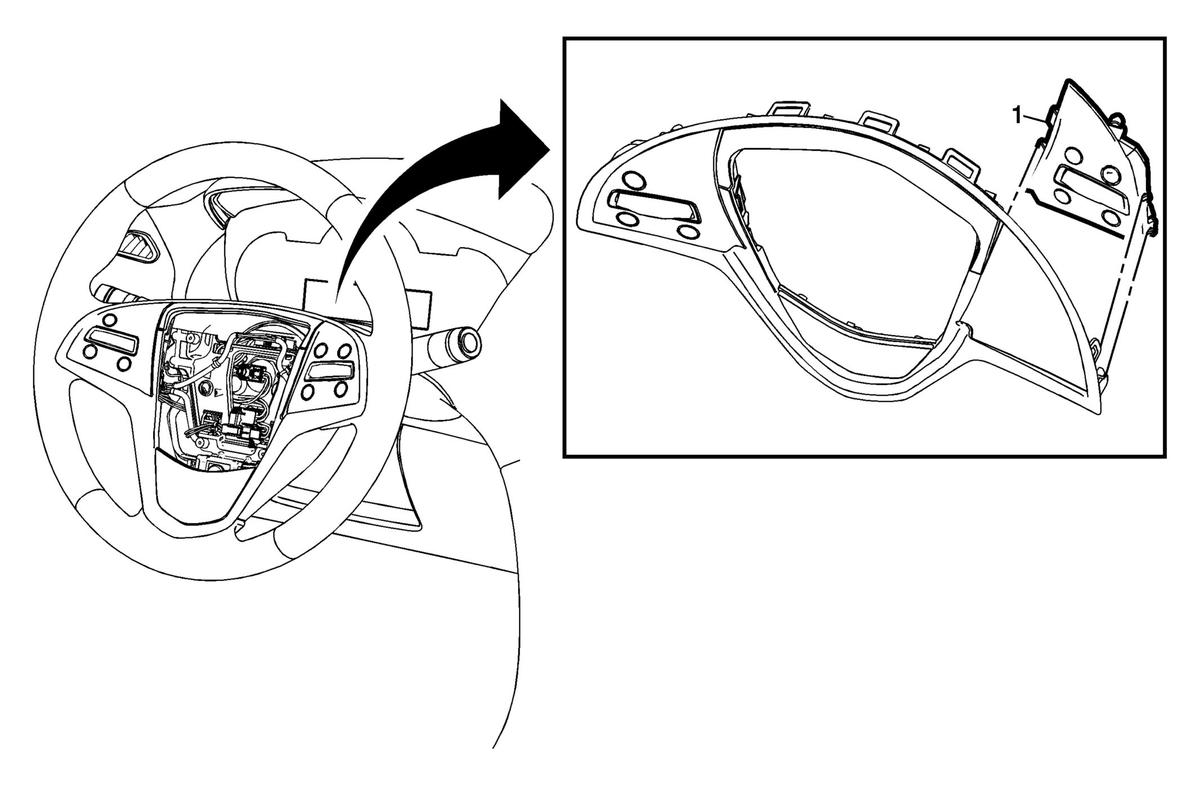

Fig 1: Radio Control Switch - Steering Wheel (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Steering Wheel Airbag. Refer to Steering Wheel Airbag Replacement (Cadillac) Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement (Cadillac)
1	Radio Control Switch Procedure Release the retaining tabs and remove the radio control switch from the steering wheel spoke cover.

Callout

Component Name

Preliminary Procedures

Radio Control Switch
Procedure
Release the retaining tabs and remove the radio control switch from the steering wheel spoke cover.
