Drive Belt Tensioner Replacement - Accessory

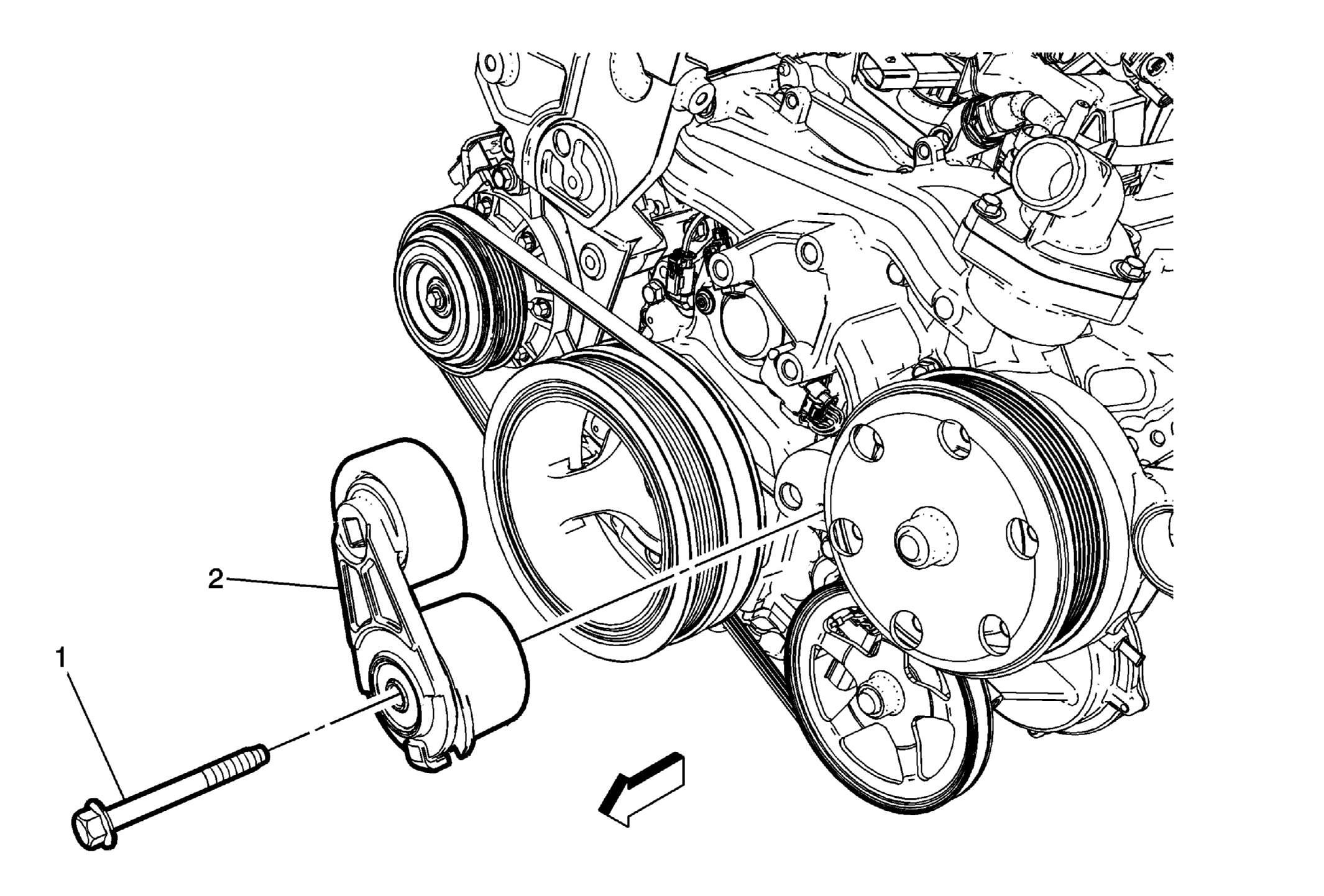

Fig 1: Drive Belt Tensioner - Accessory
GM3230754Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the drive belt. Refer to Drive Belt Replacement - Accessory .
1 Tensioner Bolt
Tighten
58 N.m (43 lb ft)
2 Drive Belt Tensioner - Accessory
