Rear Seat Removal And Installation (Bucket)

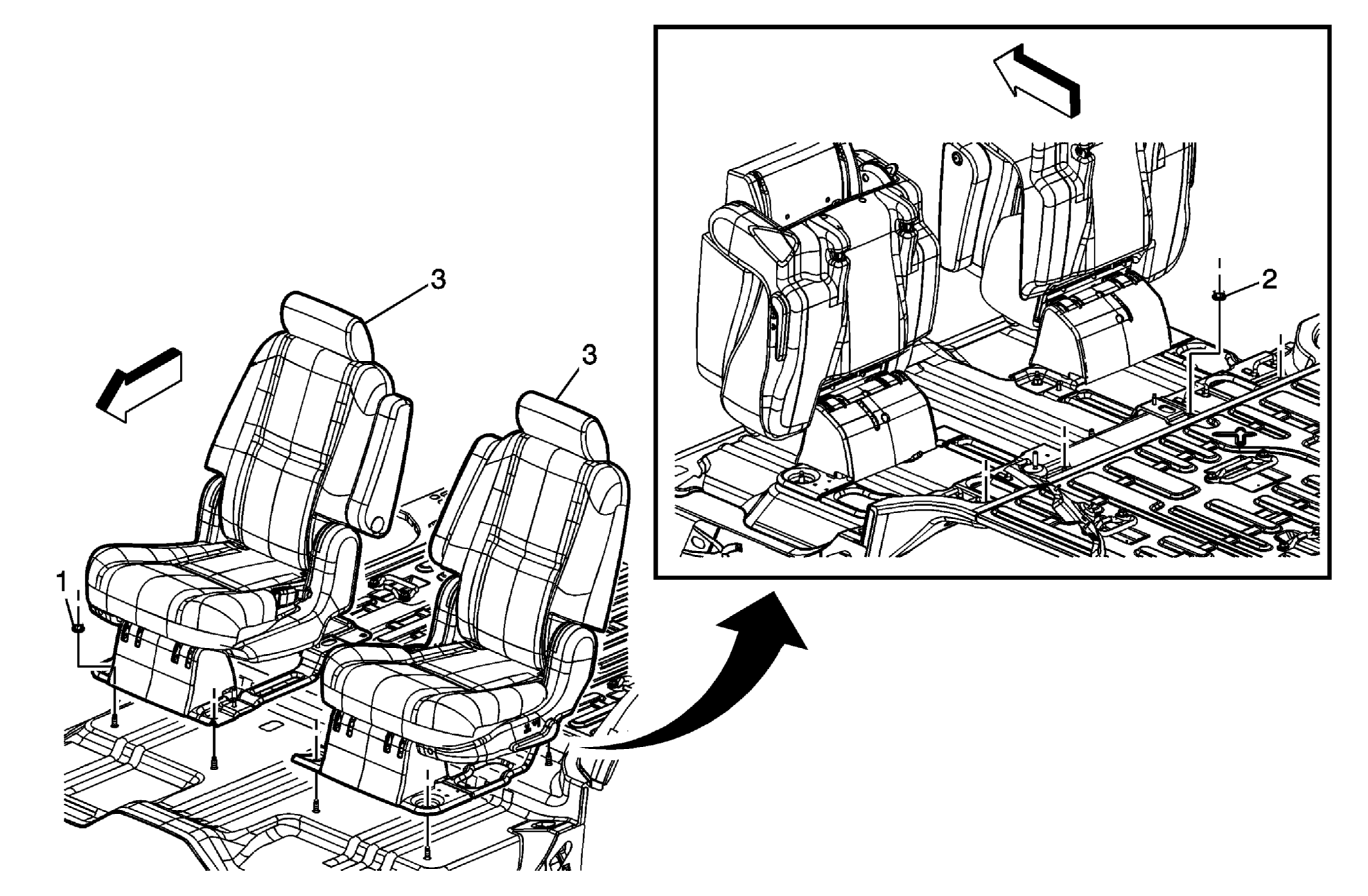

Fig 1: Rear Seat Assembly And Nuts (Bucket)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Intermediate Floor Panel Carpet Replacement .
1	Rear Seat Assembly Forward Nut [4x] CAUTION: Refer to Fastener Caution . Procedure  Fold the seat forward and reposition the rear outer edges of the front floor panel carpet to gain access to the nuts. Tighten  45 N.m (33 lb ft)
2	Rear Seat Assembly Rearward Nut [4x] Tighten  45 N.m (33 lb ft)
3	Rear Seat Assembly Procedure  Disconnect the electrical connector, if equipped.
