Front Seat Cushion Outer Finish Cover Replacement (2-Way Manual)

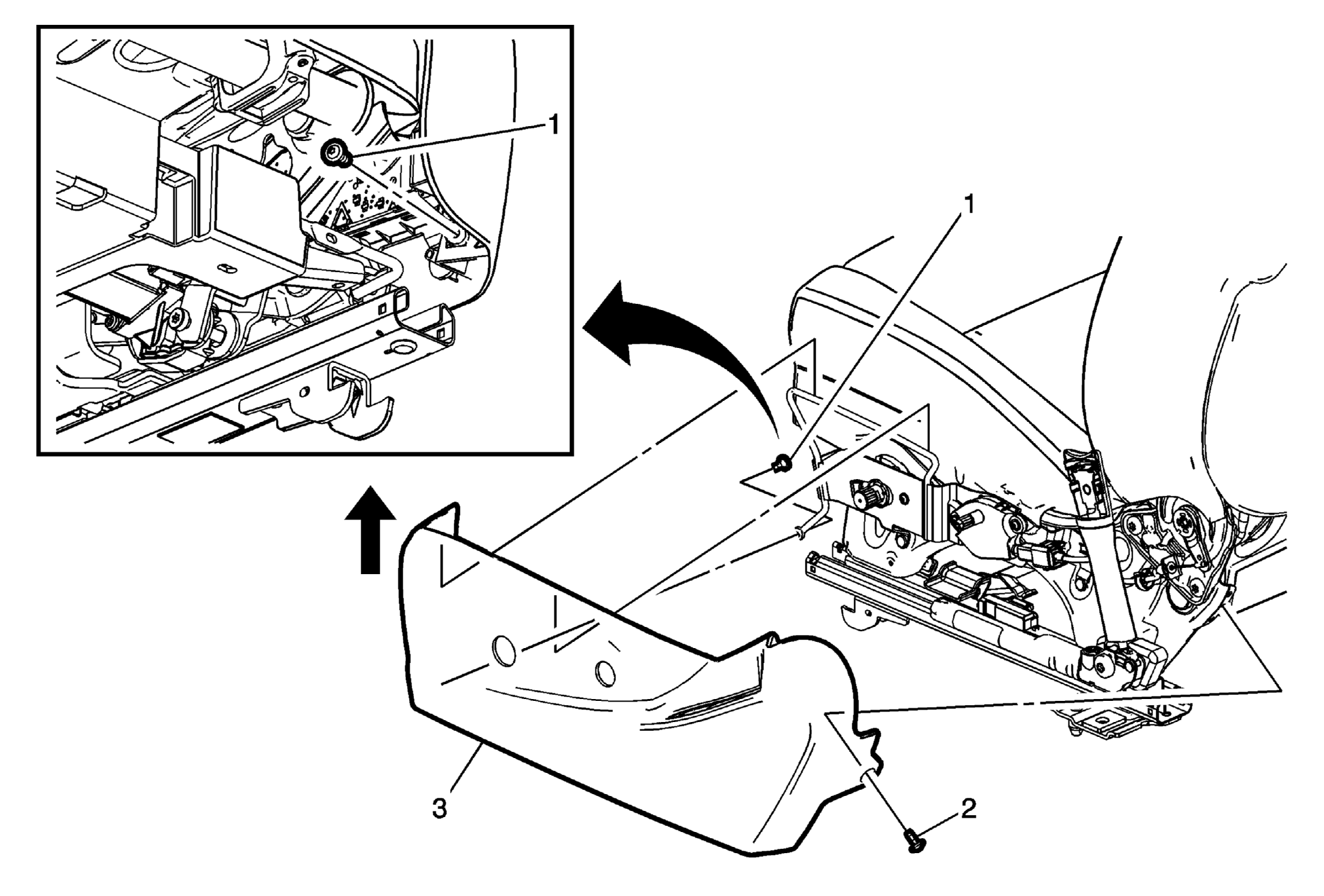

Fig 1: Front Seat Cushion Outer Finish Cover (2-Way Manual)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the seat belt from the pretensioner. Remove the front seat back recliner handle. Refer to Front Seat Back Recliner Handle Replacement (2 Way Manual) . Remove the driver seat lumbar support actuator lever, if equipped. Refer to Driver Seat Lumbar Support Actuator Lever Replacement .
1	Front Seat Cushion Outer Finish Cover Front Fastener CAUTION: Refer to Fastener Caution .
2	Front Seat Cushion Outer Finish Cover Rear Fastener CAUTION: Refer to Fastener Caution .
3	Front Seat Cushion Outer Finish Cover Procedure Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener. Remove the outer finish cover by pulling upward near the retainer clip locations. Disconnect the electrical connectors. If replacing the finish cover, transfer components as necessary.
