Front Side Door Pull Handle Bracket Replacement

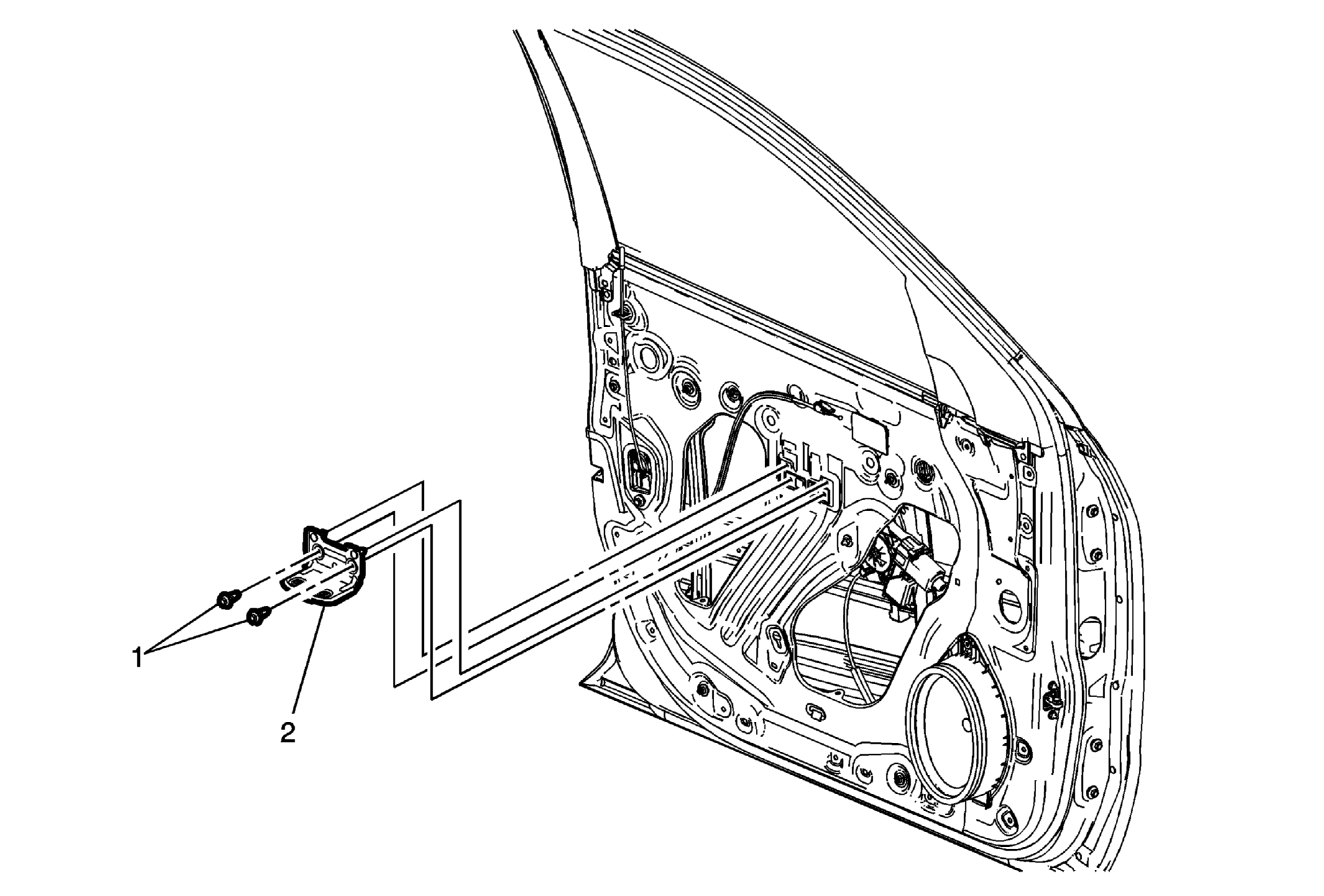

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement . |
|
| 1 | Front Side Door Armrest Bracket Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Reposition the water deflector, as necessary. Tighten 2.5 N.m (22 lb in) |
| 2 | Front Side Door Pull Handle Bracket |
