Headlamp And Front End Panel Mount Panel Brace Replacement (Cadillac)

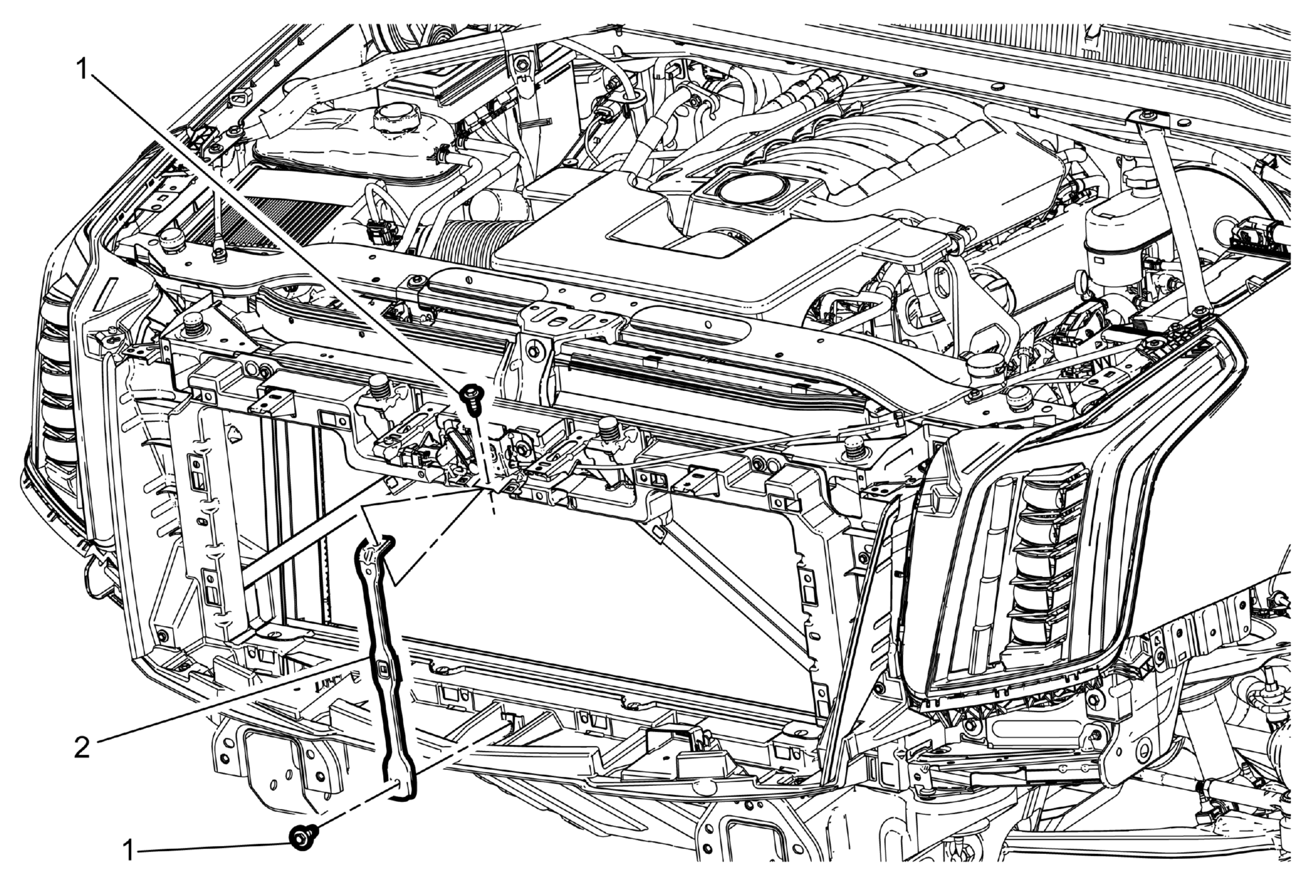

Fig 1: Headlamp and Front End Panel Mount Panel Brace (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Cadillac) Front View Camera Replacement
1	Headlamp and Front End Panel Mount Panel Brace Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Headlamp and Front End Panel Mount Panel Brace
