Rear Side Door Weatherstrip Replacement - Door Side (Long Wheelbase)

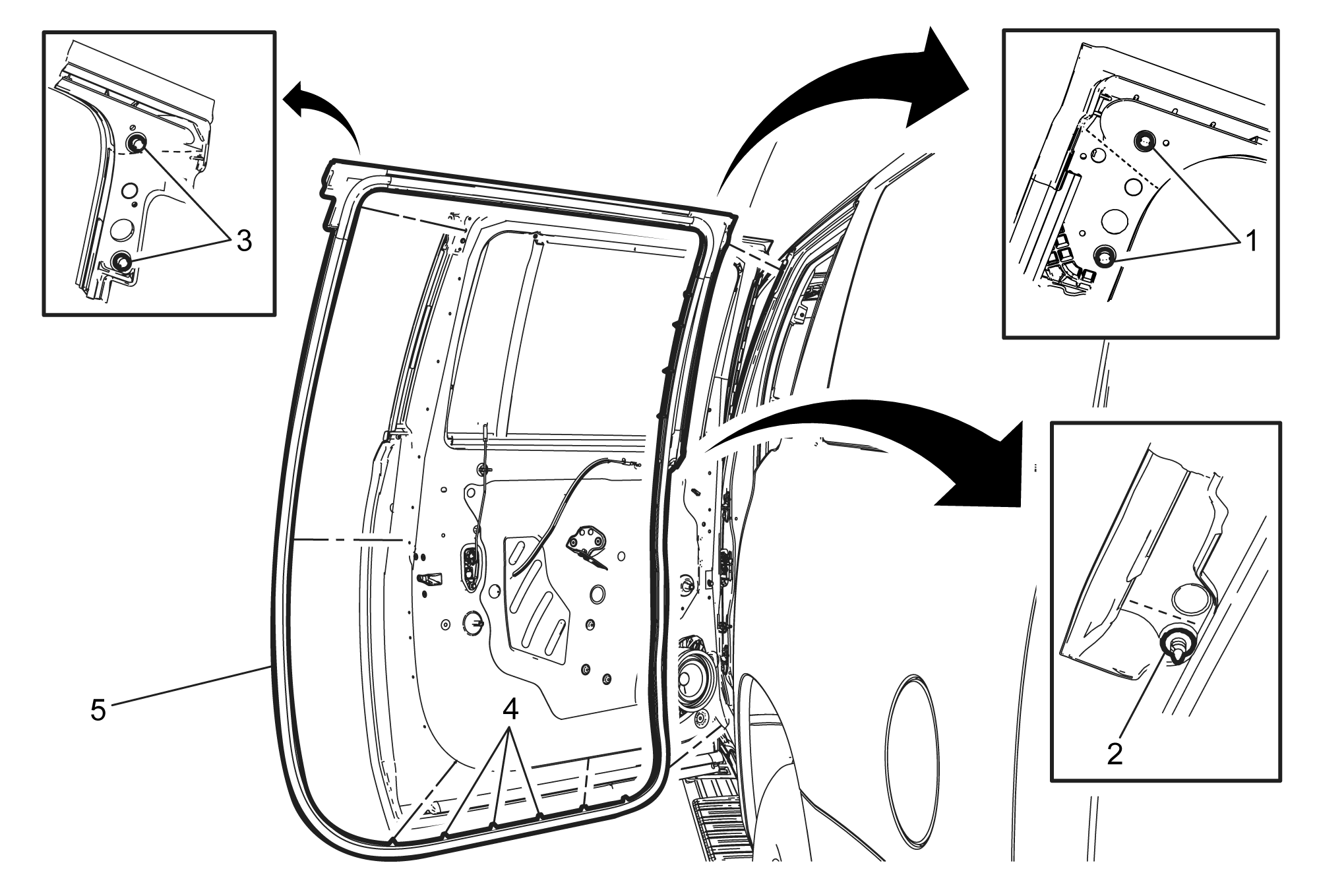

Fig 1: Rear Side Door Weatherstrip - Door Side (Long Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the door to the full open position. Rear Side Door Check Link Bolt - Remove Rear Side Door Check Link Replacement (Chevrolet, GMC with Long Wheelbase) Rear Side Door Check Link Replacement (Cadillac with Long Wheelbase)
1	Rear Side Door Weatherstrip Upper Corner Clip (Qty: 2) Procedure Using the appropriate tool, remove the push-in clips from around the door.
2	Rear Side Door Weatherstrip Clip
3	Rear Side Door Weatherstrip Upper Corner Clip (Qty: 2)
4	Rear Side Door Weatherstrip Clip (Qty: 40)
5	Rear Side Door Weatherstrip Procedure Ensure that the weatherstrip is fully seated in the door frame. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
