Rear Side Door Weatherstrip Replacement - Body Side (Short Wheelbase)

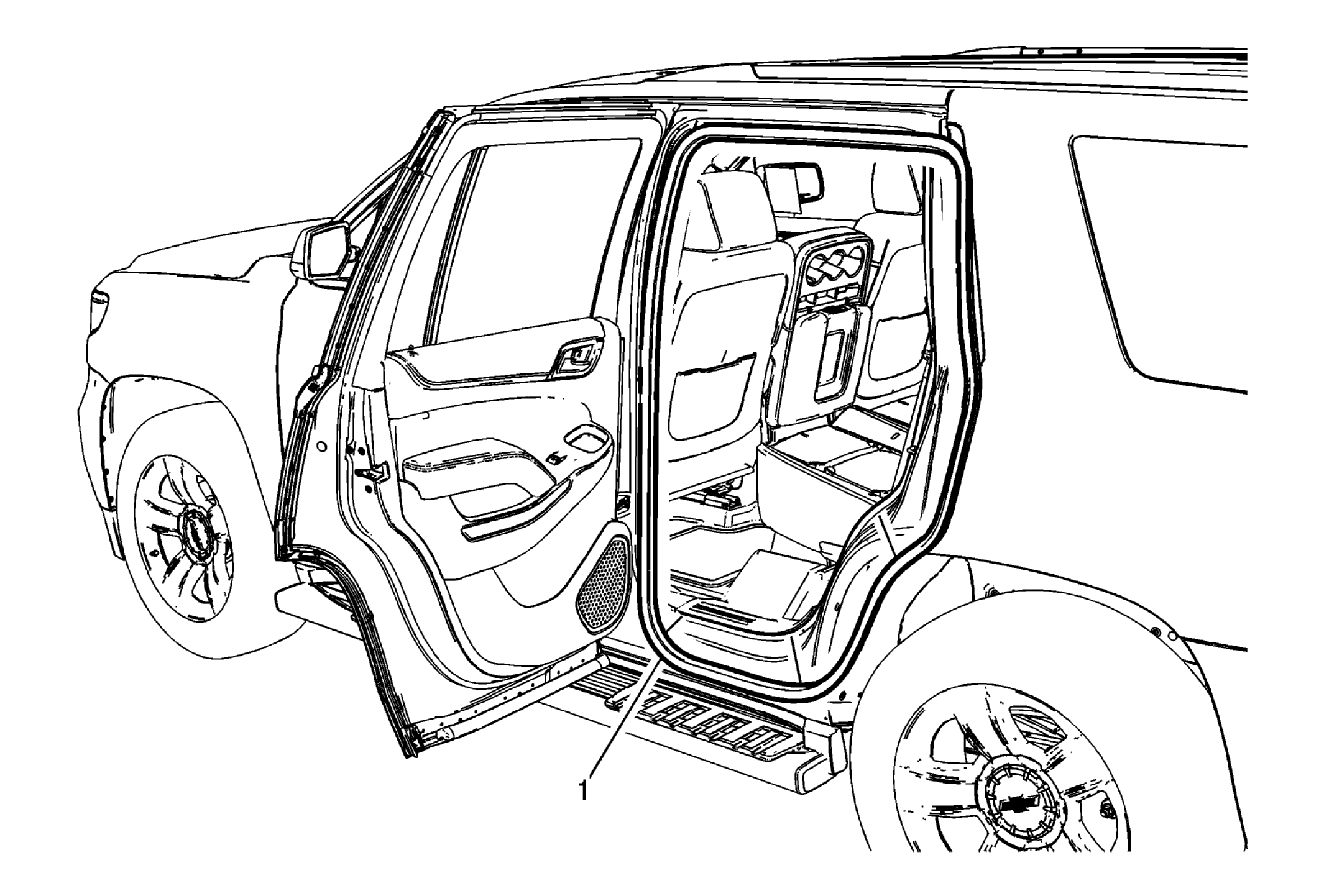

Fig 1: Rear Side Door Weatherstrip - Body Side (Short Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the rear side door. Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement . Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
1	Rear Side Door Weatherstrip - Body Side Procedure Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange. Position the weatherstrip in the upper corner of the center pillar. Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners. Ensure that the weatherstrip is seated on the entire door opening flange. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Preliminary Procedures

Open the rear side door.
Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement .
Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement .

Rear Side Door Weatherstrip - Body Side

Procedure

Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Position the weatherstrip in the upper corner of the center pillar.
Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
Ensure that the weatherstrip is seated on the entire door opening flange.

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
