Rear Side Door Rear Auxiliary Weatherstrip Replacement (Short Wheelbase)

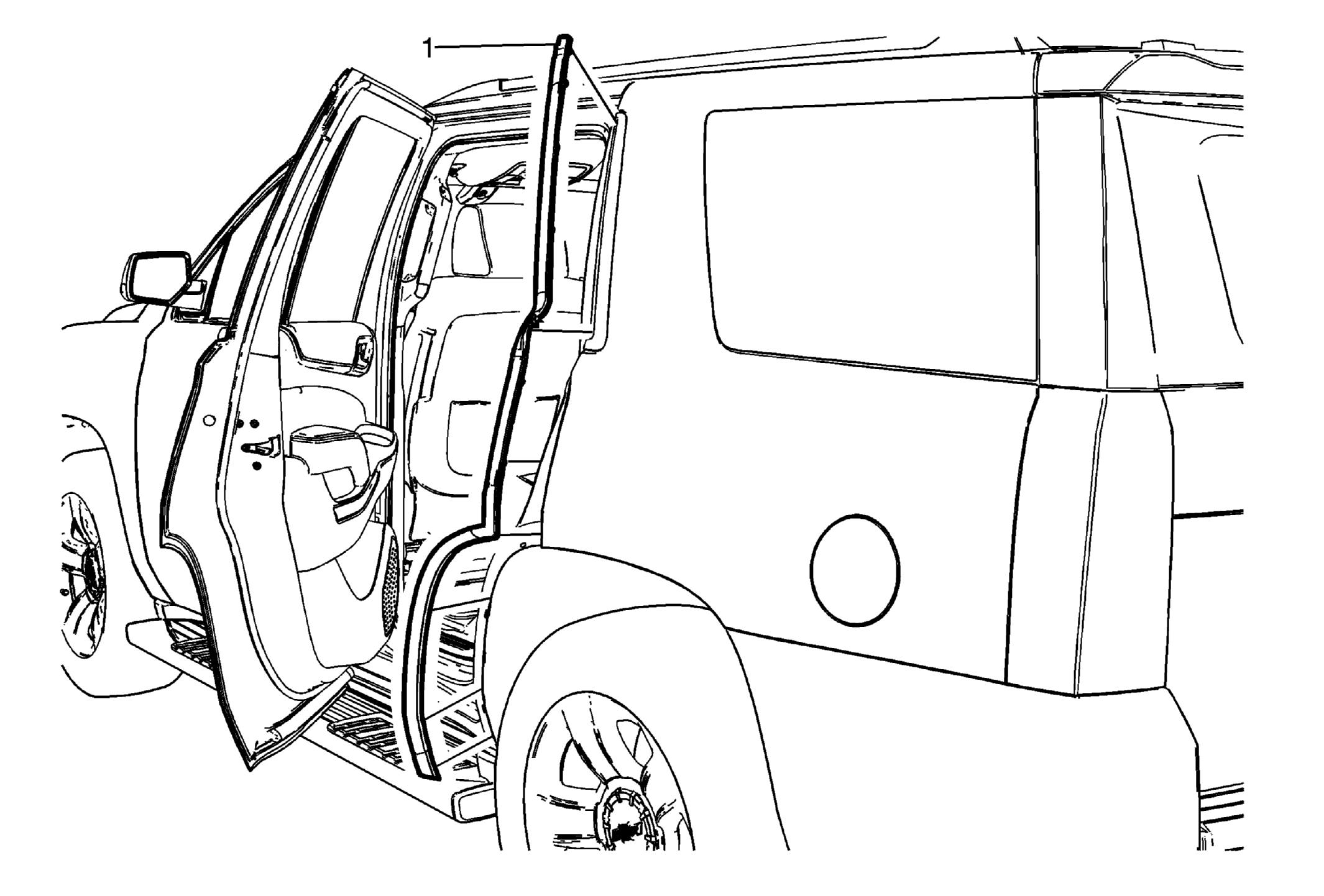

Fig 1: Rear Side Door Rear Auxiliary Weatherstrip (Short Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the rear side door to the full open position.
1	Rear Side Door Rear Auxiliary Weatherstrip Procedure Using the appropriate tool, release the clips from the door frame while pulling the weatherstrip from the vehicle. Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface. Peel the protective film from the foam tape and install the rear side door rear auxiliary weatherstrip. Ensure that the weatherstrip is fully seated to the vehicle. NOTE: Inspect the rear side door for proper seal.

Callout

Component Name

Preliminary Procedure
Open the rear side door to the full open position.

Rear Side Door Rear Auxiliary Weatherstrip

Procedure

Using the appropriate tool, release the clips from the door frame while pulling the weatherstrip from the vehicle.
Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface.
Peel the protective film from the foam tape and install the rear side door rear auxiliary weatherstrip.
Ensure that the weatherstrip is fully seated to the vehicle.

NOTE:

Inspect the rear side door for proper seal.
