Rear Side Door Lower Auxiliary Weatherstrip Replacement (Short Wheelbase)

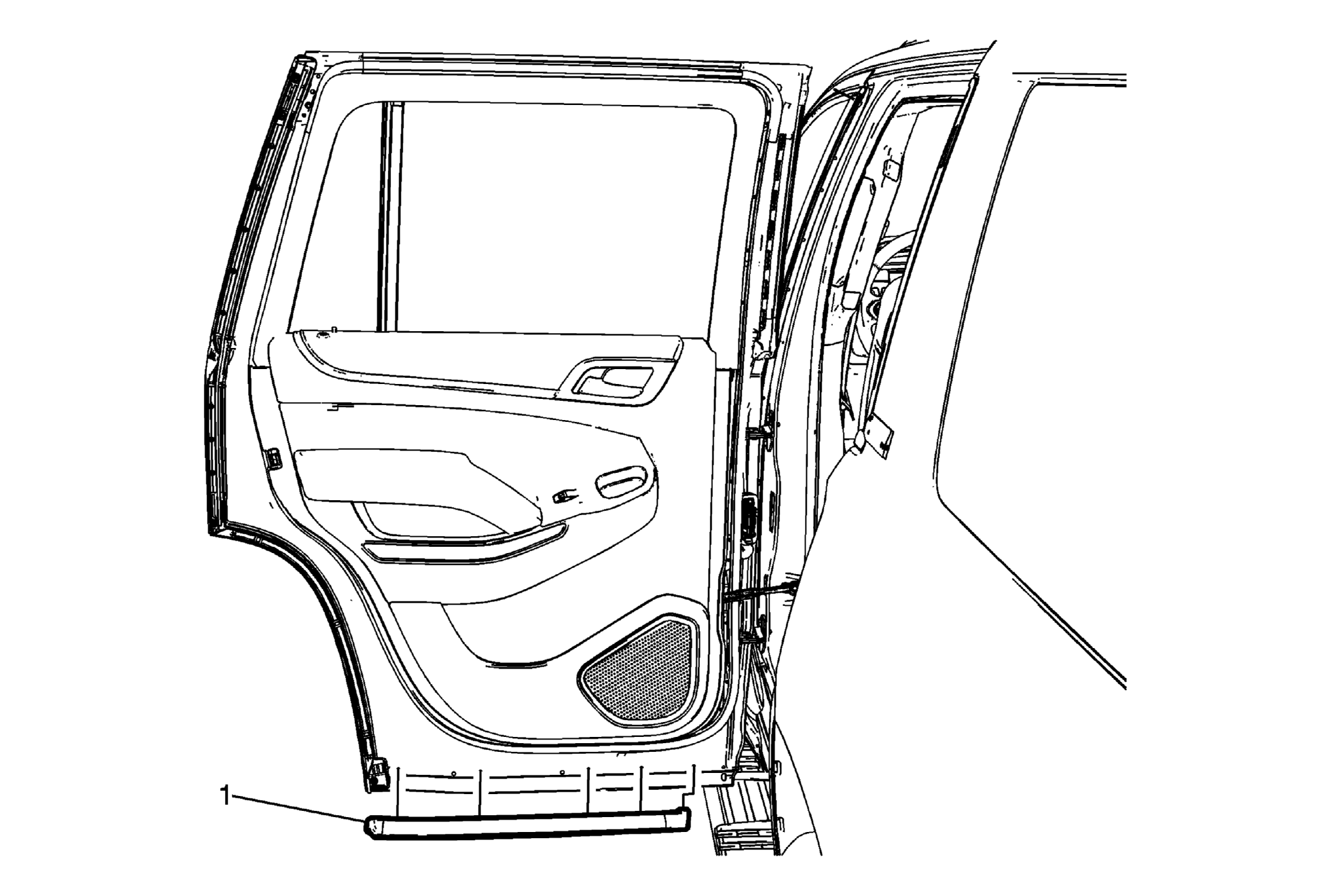

Fig 1: Rear Side Door Lower Auxiliary Weatherstrip (Short Wheelbase)
GM3610928Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Lower Auxiliary Weatherstrip

Procedure

  1. Open the door to the full open position.
  2. Using the appropriate tool, unclip the rear side door lower auxiliary weatherstrip from the front door.
NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
