Liftgate Wiring Harness Replacement

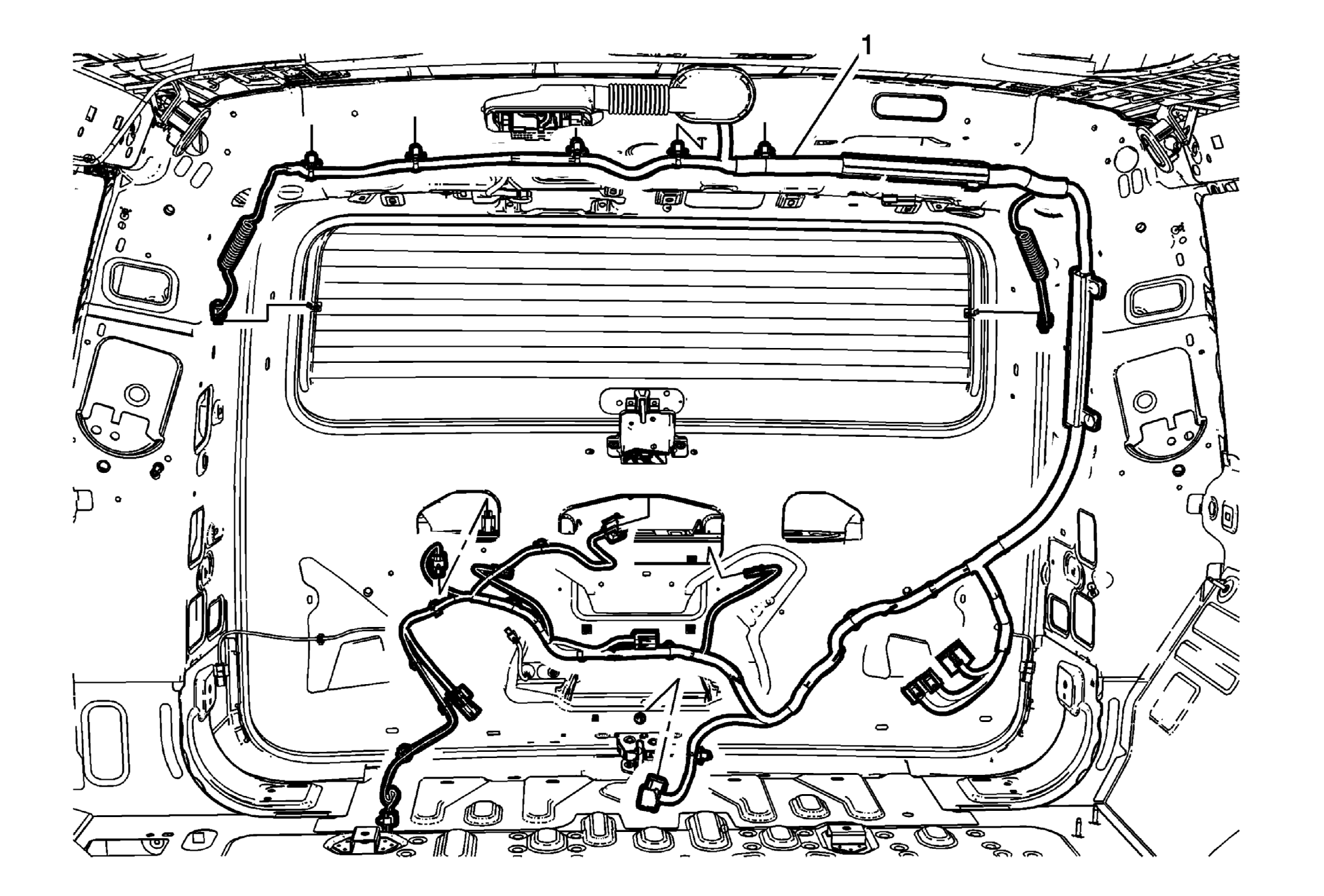

Fig 1: Liftgate Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the liftgate trim panel. Refer to Liftgate Trim Finish Panel Replacement . Remove the roof rear header garnish molding. Refer to Roof Rear Header Garnish Molding Replacement (Standard Wheelbase)Roof Rear Header Garnish Molding Replacement (Extended Wheelbase) .
1	Liftgate Wiring Harness Procedure Disconnect electrical connectors. Reposition the pass through boot and disconnect the lever lock

Callout

Component Name

Preliminary Procedures

Liftgate Wiring Harness
Procedure
Disconnect electrical connectors. Reposition the pass through boot and disconnect the lever lock
