Liftgate Weatherstrip Replacement (Chevrolet, GMC)

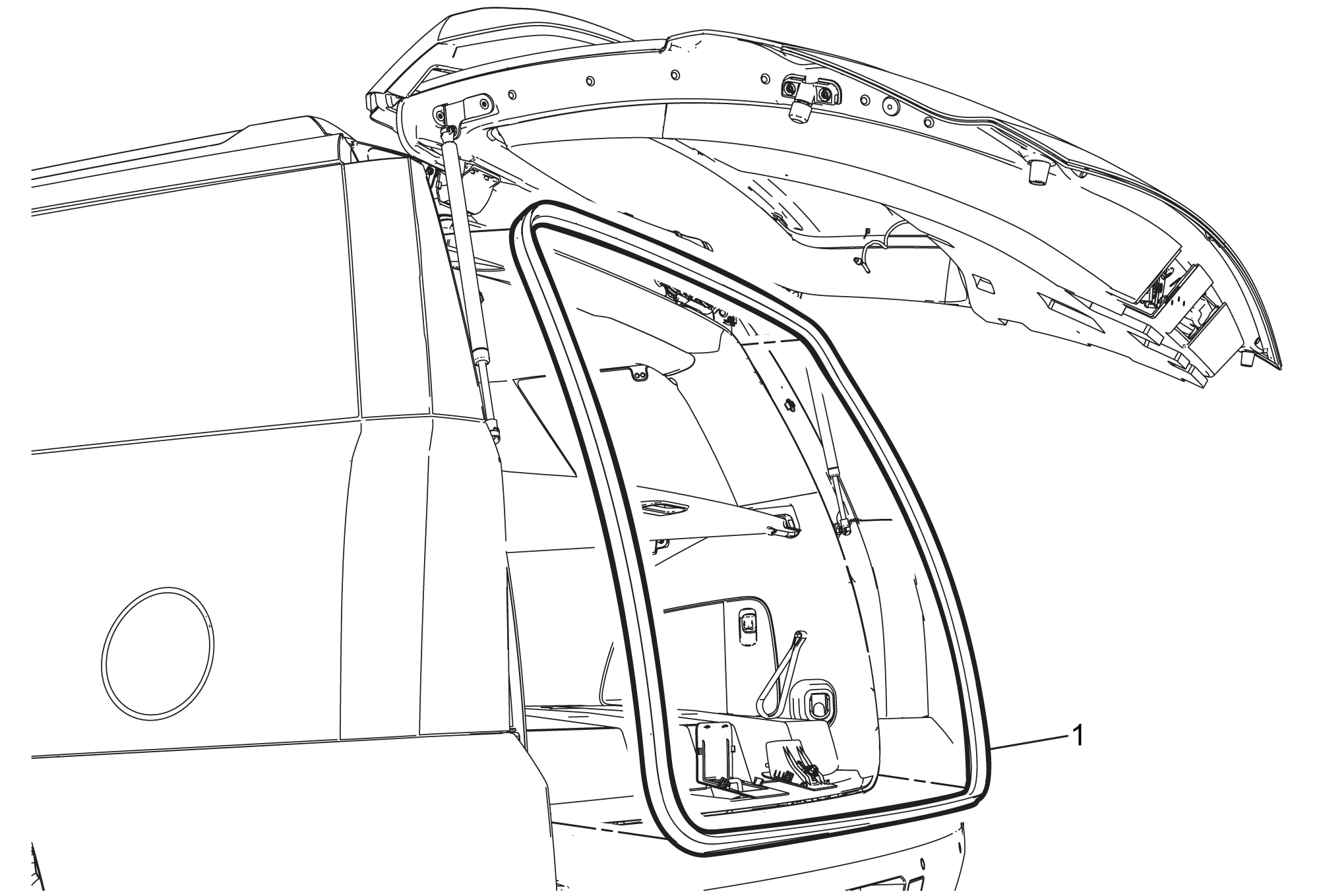

Fig 1: Liftgate Weatherstrip (Chevrolet, GMC)
GM3620282Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the liftgate sill garnish molding. Refer to Liftgate Sill Garnish Molding Replacement .
1 Liftgate Weatherstrip

Procedure

  1. Roll the weatherstrip from the center to the upper corners.
  2. Roll the weather strip from the upper corners to the lower corners.
  3. Roll the weatherstrip from the lower corners to the center.
