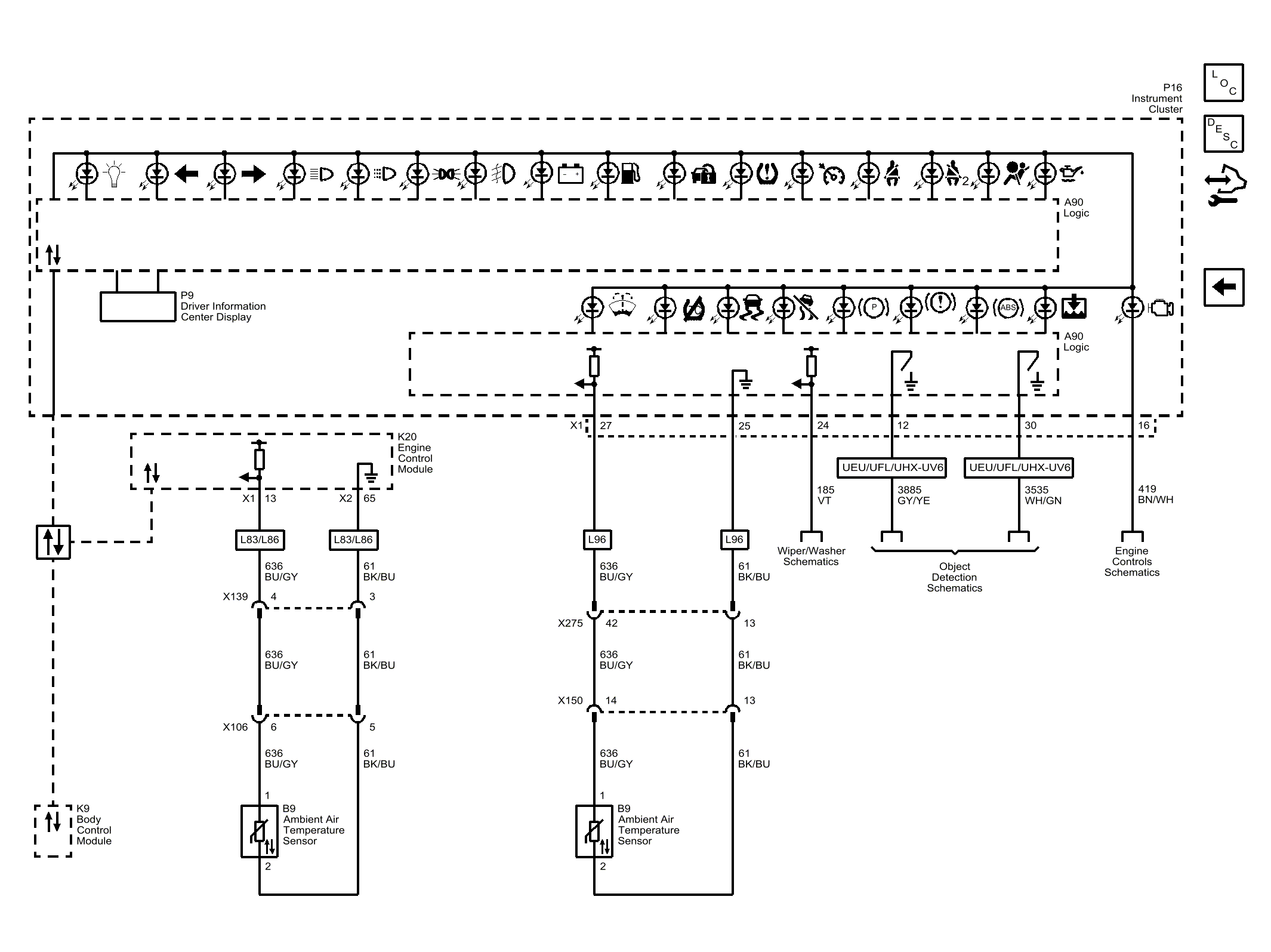

Home >> Cadillac >> 2018 >> Escalade Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Indicators and Ambient Temperature
