3rd Row Seat Belt Retractor Replacement (Long Wheelbase)

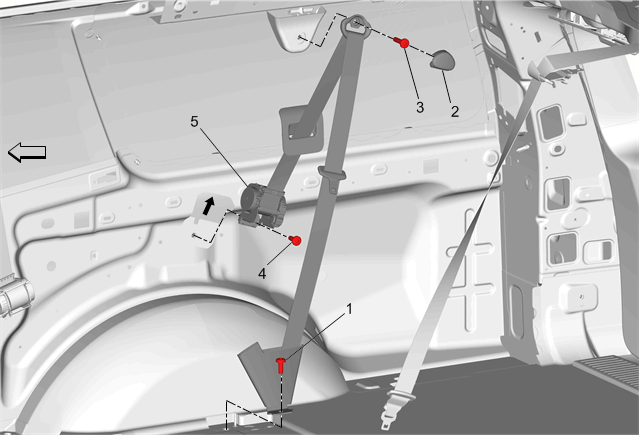

Fig 1: 3rd Row Seat Belt Retractor (Long Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the 3rd row seat. Refer to 3rd Row Seat Removal and Installation . Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side, Extended Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Extended Wheelbase) .
1	3rd Row Rear Seat Shoulder Belt Anchor Plate Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (32 lb ft)
2	3rd Row Rear Seat Belt Retractor Cover
3	3rd Row Rear Seat Belt Retractor Upper Fastener Tighten 45 N.m (32 lb ft)
4	3rd Row Rear Seat Belt Retractor Lower Fastener Tighten 45 N.m (32 lb ft)
5	3rd Row Rear Seat Belt Retractor
