Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (L96)

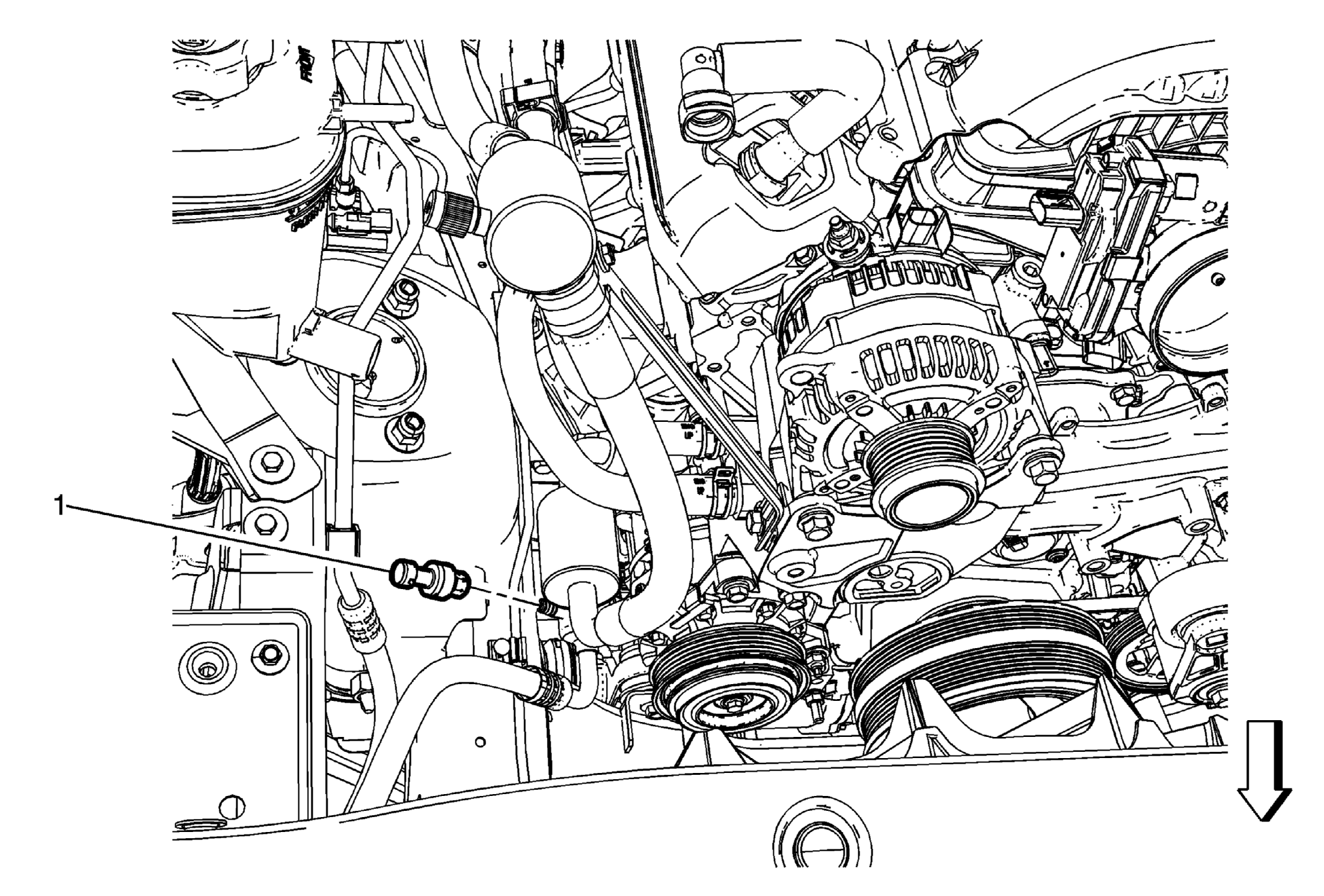

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor (L96)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering gear skid shield, if equipped. Refer to Steering Gear Skid Shield Replacement . Disconnect the electrical connector from the air conditioning (A/C) refrigerant pressure sensor.
1	A/C Refrigerant Pressure Sensor CAUTION: Refer to Fastener Caution . NOTE: Remove and discard the O-ring and replace with NEW only. Refer to Air Conditioning O-Ring Seal Replacement .

Callout

Component Name

Preliminary Procedures

Remove the steering gear skid shield, if equipped. Refer to Steering Gear Skid Shield Replacement .
Disconnect the electrical connector from the air conditioning (A/C) refrigerant pressure sensor.

A/C Refrigerant Pressure Sensor

CAUTION:

NOTE:

Remove and discard the O-ring and replace with NEW only. Refer to Air Conditioning O-Ring Seal Replacement .
