Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

Lightly coat the MAP sensor seal with clean engine oil before installing the sensor.

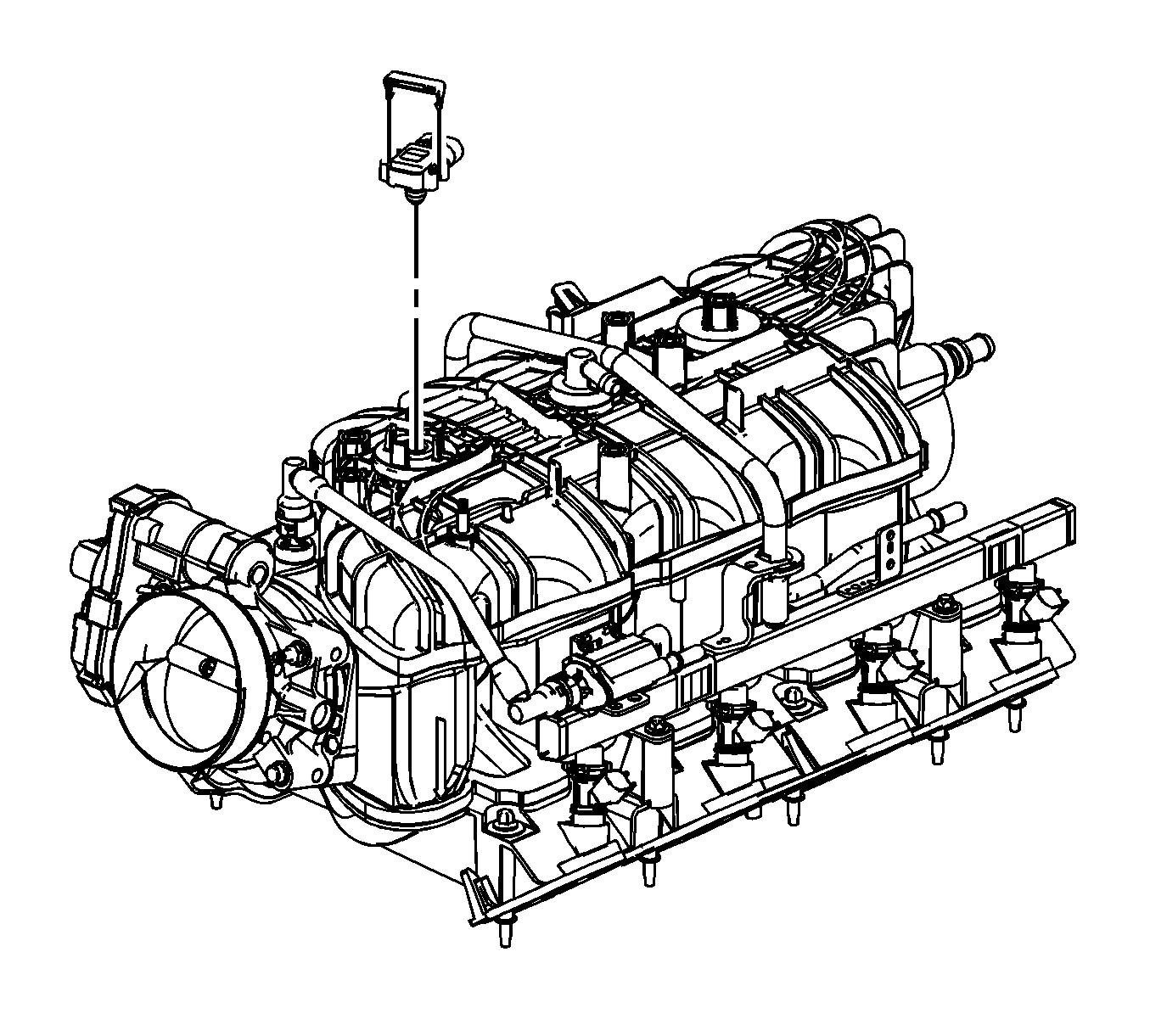

    Fig 1: MAP Sensor And Retainer
    GM1697060Courtesy of GENERAL MOTORS COMPANY
  1. Install the MAP sensor.
  2. Install the MAP sensor retainer.
    3. Fig 2: Engine Harness Retainer Nut And Electrical Connectors
    GM1696891Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine harness wiring electrical connector (4) to the MAP sensor.
  4. Install the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
