Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Left Side Knock Sensor & Bolt
    GM1402136Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the knock sensor (718) to the engine block and install the knock sensor bolt (739). Tighten the bolt to 25 N.m (18 lb ft)

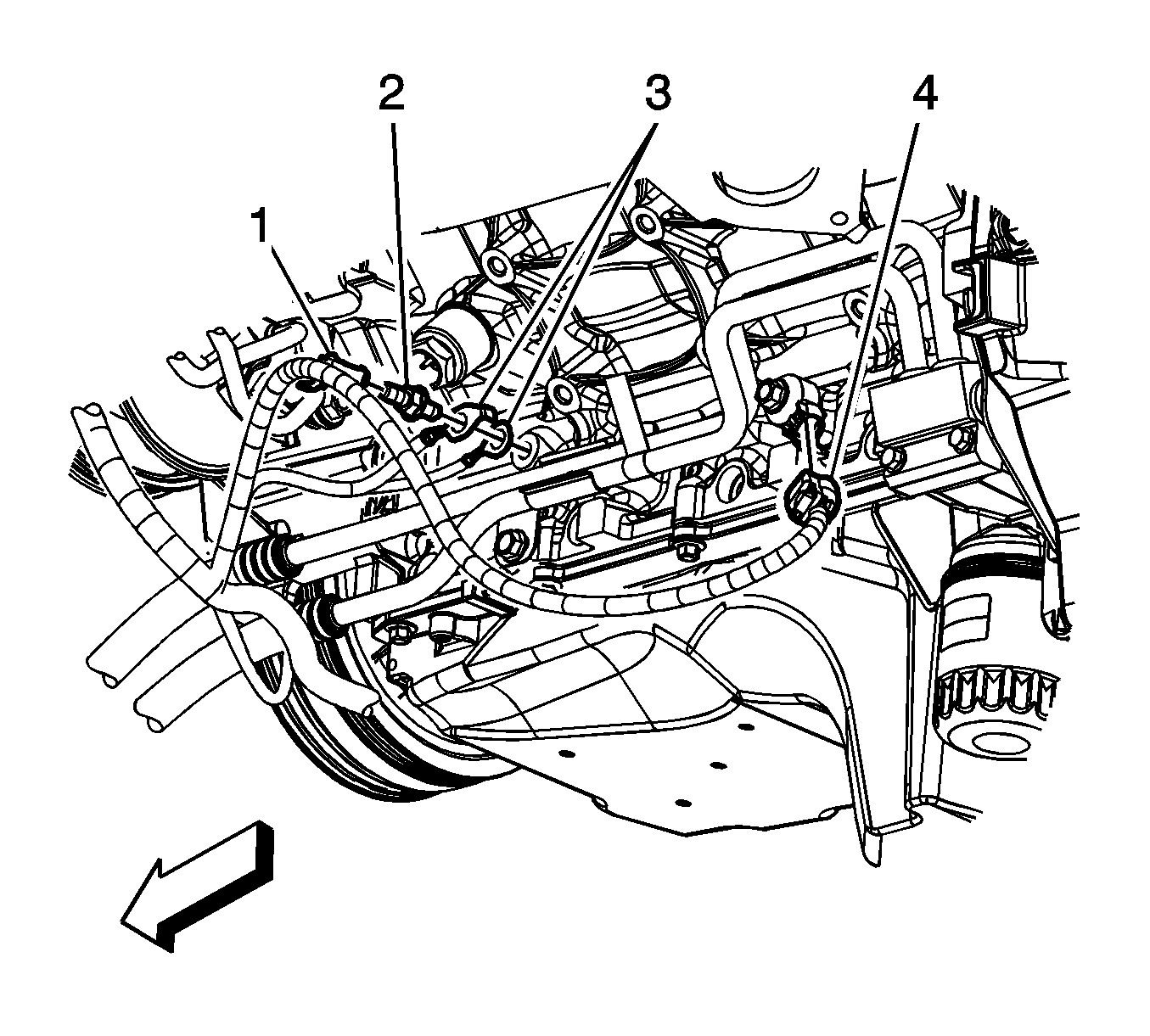

    2. Fig 2: Engine Wiring Harness Electrical Connectors And Components
    GM1699536Courtesy of GENERAL MOTORS COMPANY
  2. Connect the engine wiring harness electrical connector (4) to knock sensor.
  3. Lower the vehicle.
