Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

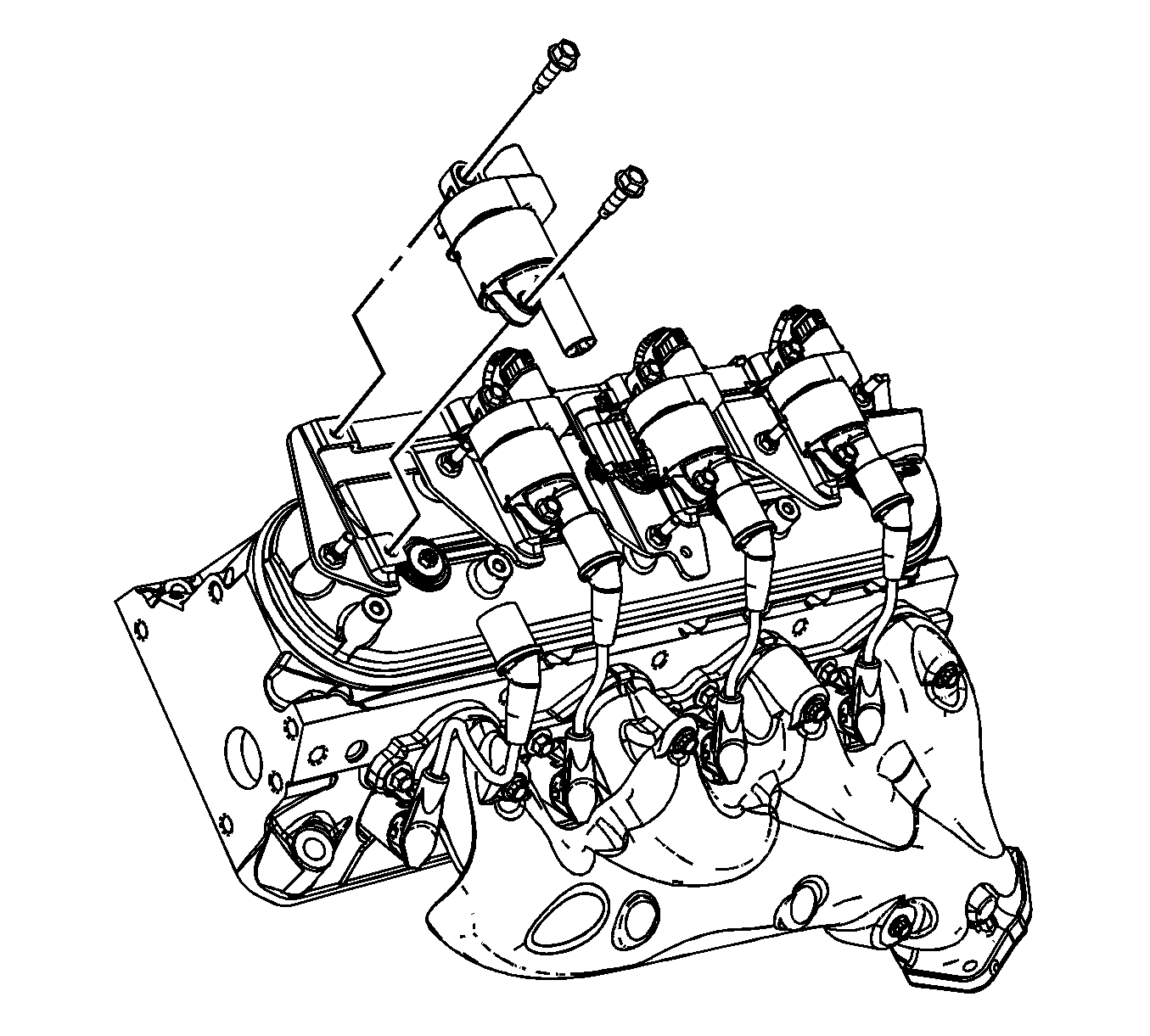

    Fig 1: Ignition Coil, Bracket And Bolts
    GM1707124Courtesy of GENERAL MOTORS COMPANY
  1. Position the ignition coil to the ignition coil bracket. (left side shown, right side similar).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the spark plug wire to the ignition coil.
  4. Inspect the spark plug wire for proper installation:
    • Push sideways on each boot in order the inspect the seating.
    • Reinstall any loose boot.

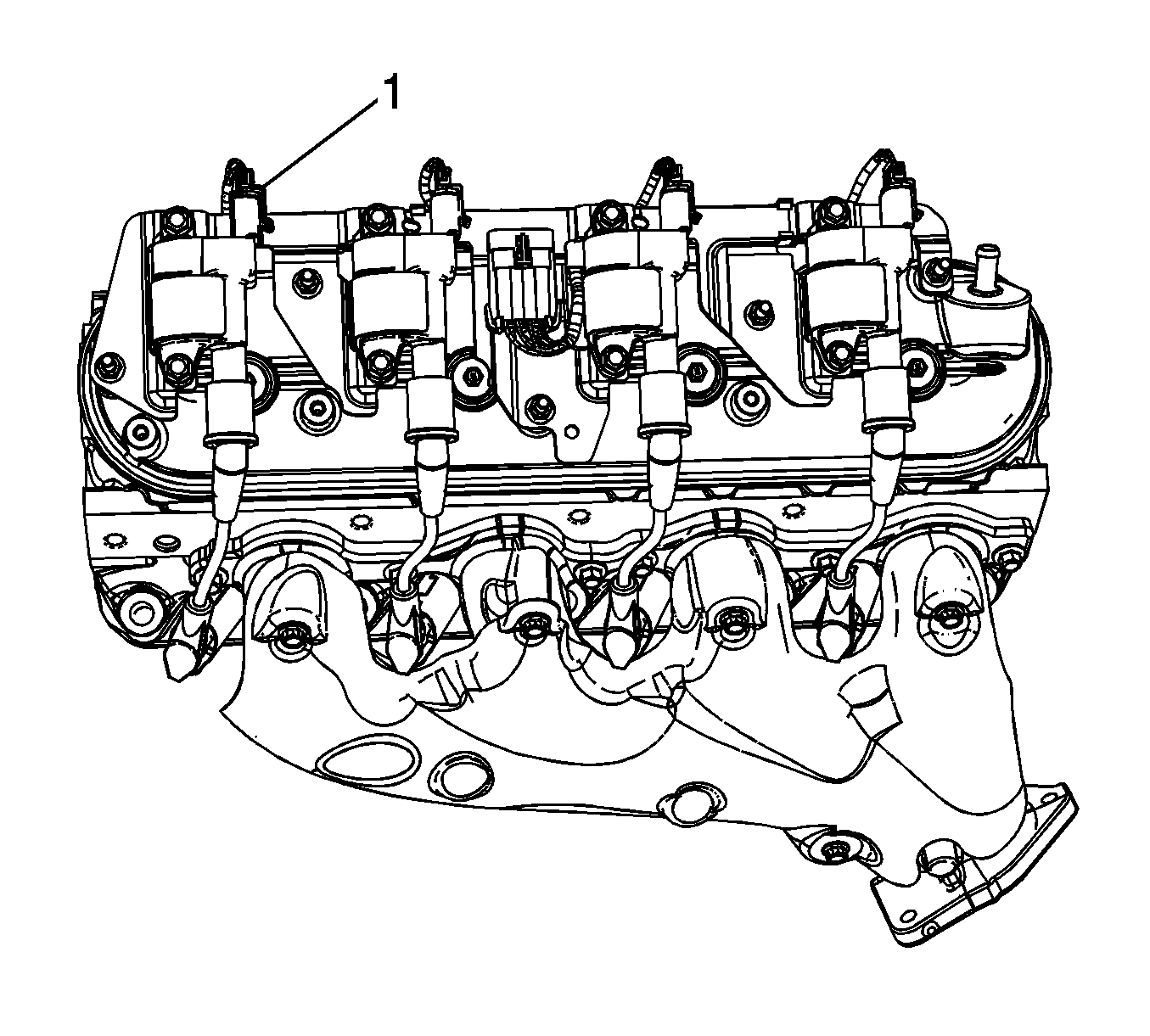

    5. Fig 2: Ignition Coil Wiring Harness Electrical Connector
    GM1707122Courtesy of GENERAL MOTORS COMPANY
  5. Connect the ignition coil wiring harness electrical connector (1) to the ignition coil.
  6. Install the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
