Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

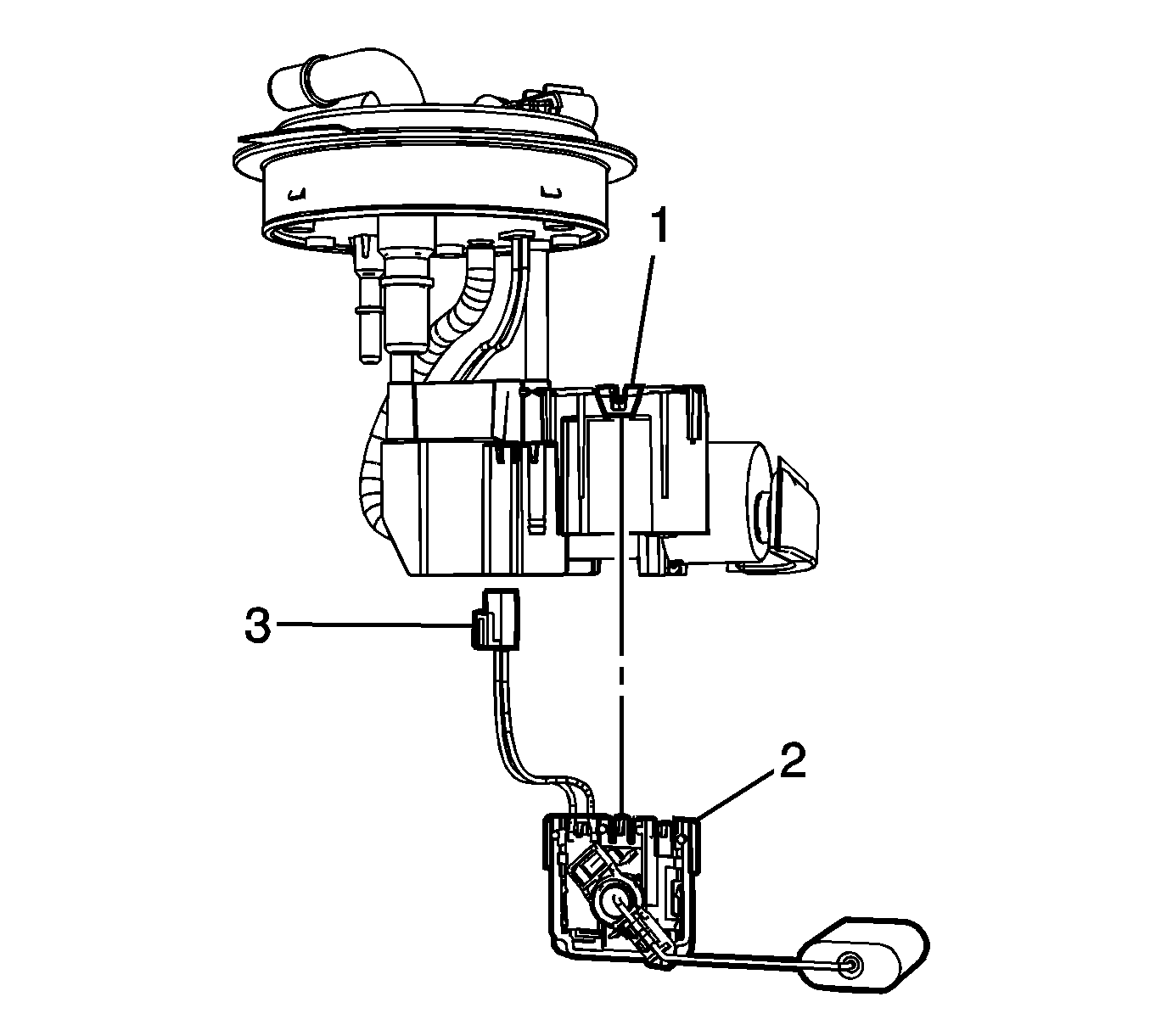

    Fig 1: Fuel Level Sensor, Electrical Connector And Retaining Clip (Rear Tank)
    GM1705922Courtesy of GENERAL MOTORS COMPANY
  1. Slide the fuel level sensor (2) up onto the bucket until the sensor engages the retaining tab (1).
  2. Connect the fuel level sensor electrical connector (3) under the module cover.
  3. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (Rear Tank) .
