Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

Clean all fuel and evaporative emission (EVAP) line connections and surrounding areas prior to disconnecting the lines in order to avoid possible fuel and/or EVAP system contamination.

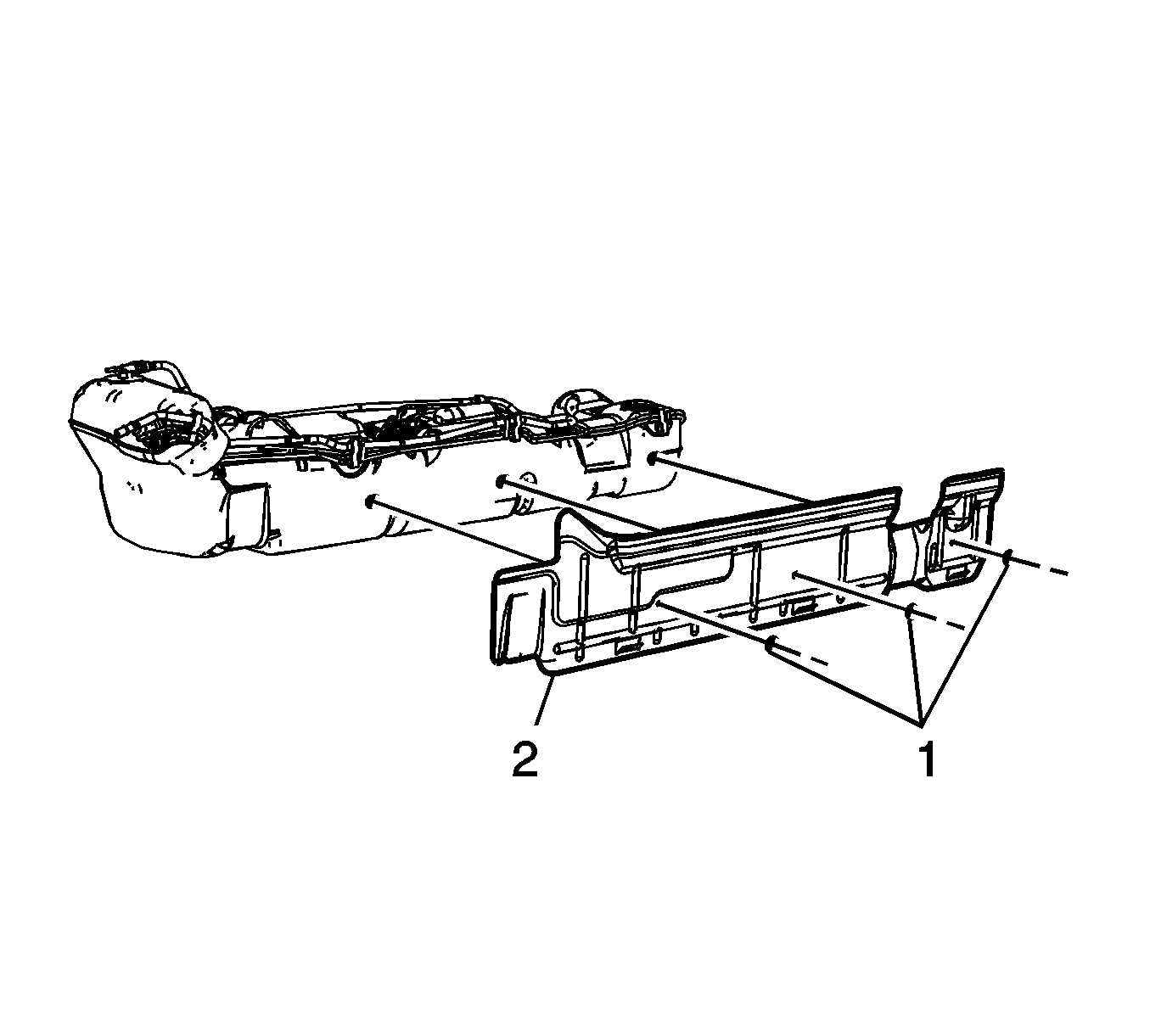

    Fig 1: Fuel Tank Shield And Retainers
    GM1705654Courtesy of GENERAL MOTORS COMPANY
  1. Remove the fuel tank. Refer to Fuel Tank Replacement (Front Tank) .
  2. Remove the fuel tank shield retainers (1) and shield (2).

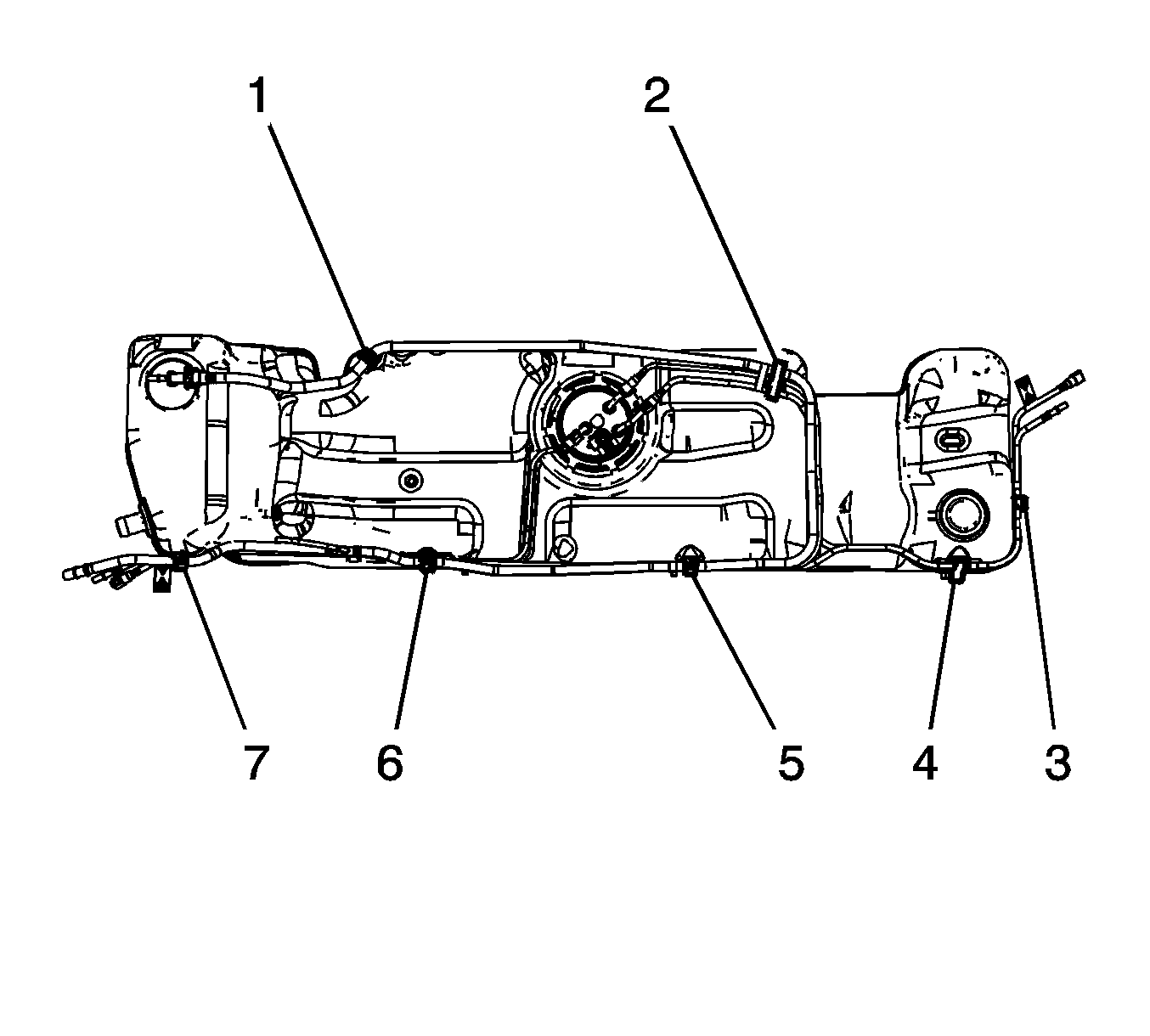

    3. Fig 2: Fuel Tank Clips
    GM1705656Courtesy of GENERAL MOTORS COMPANY
  3. Remove the EVAP line from the fuel tank clip (1).
  4. Open the fuel tank clips (2-7) and remove the fuel/EVAP lines from the clips.
  5. Disconnect the fuel/EVAP line quick connect fittings from the fuel tank module. Refer to Plastic Collar Quick Connect Fitting Service .

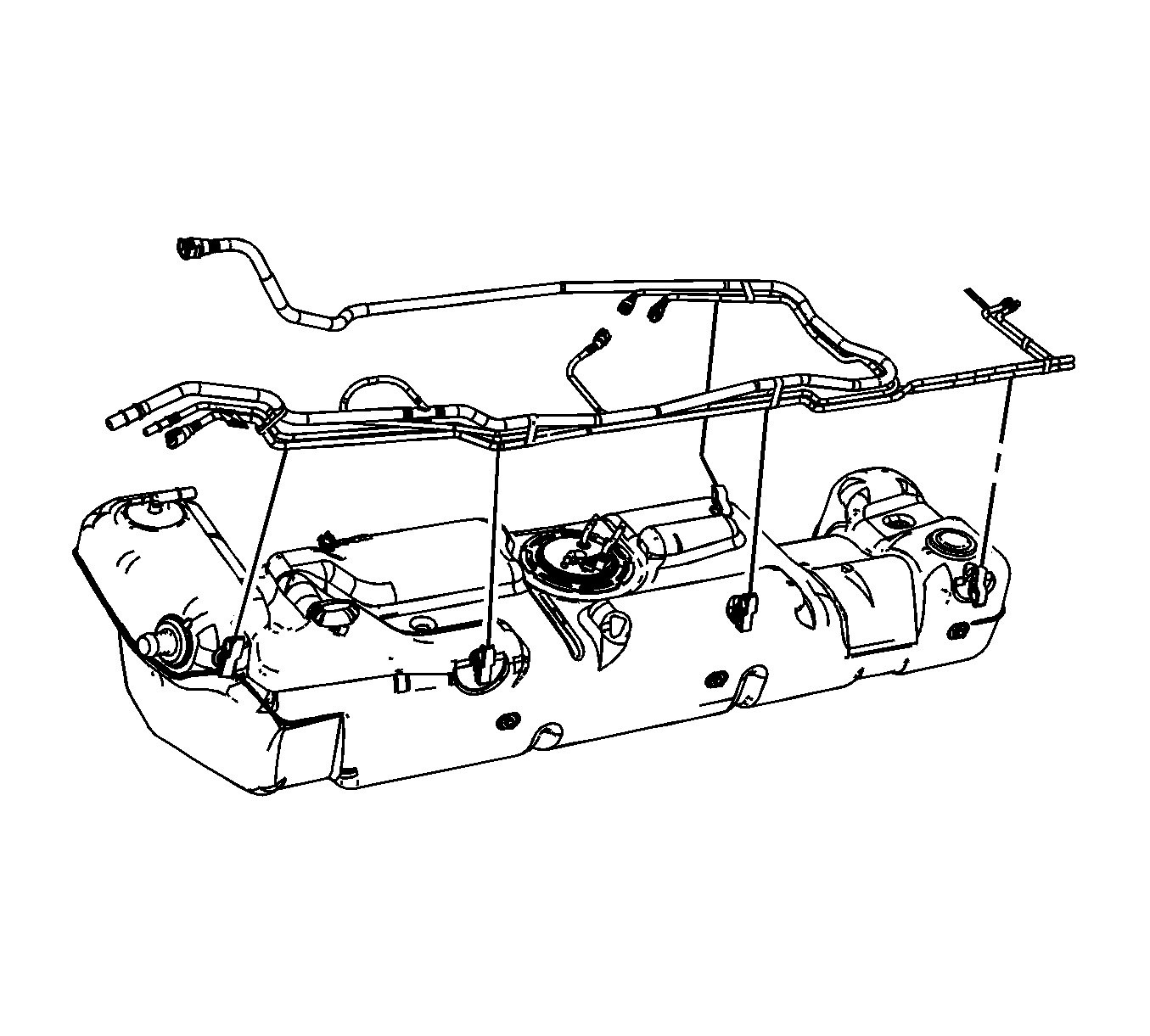

    6. Fig 3: Fuel Tank EVAP Lines
    GM1705659Courtesy of GENERAL MOTORS COMPANY
  6. Remove the fuel/EVAP lines from the fuel tank.
