Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

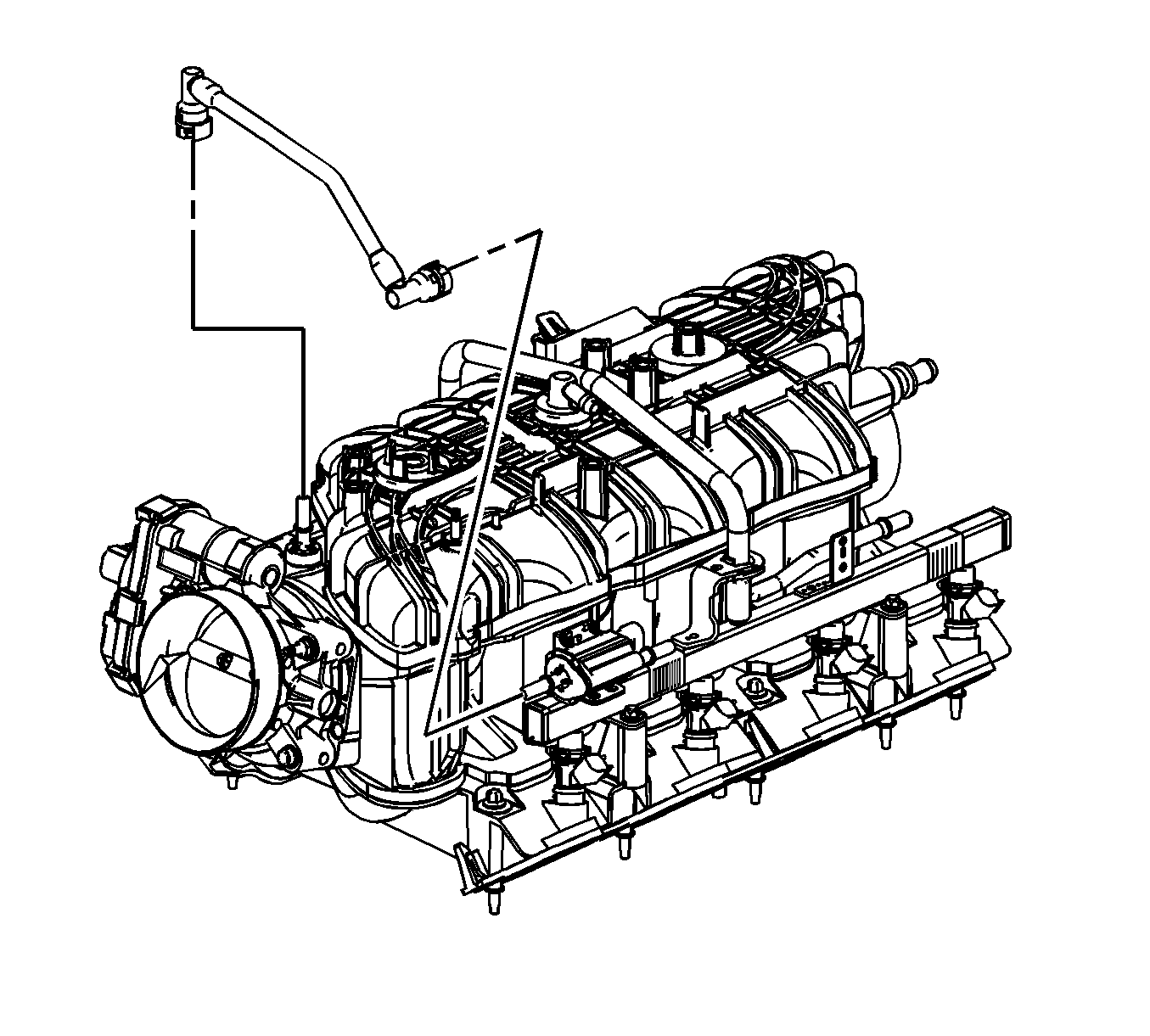

    Fig 1: EVAP Line And Canister Purge Solenoid
    GM1706143Courtesy of GENERAL MOTORS COMPANY
  1. Connect the EVAP line quick connect fitting at the EVAP canister purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
  2. Connect the EVAP line quick connect fitting at the intake manifold. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
