Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.

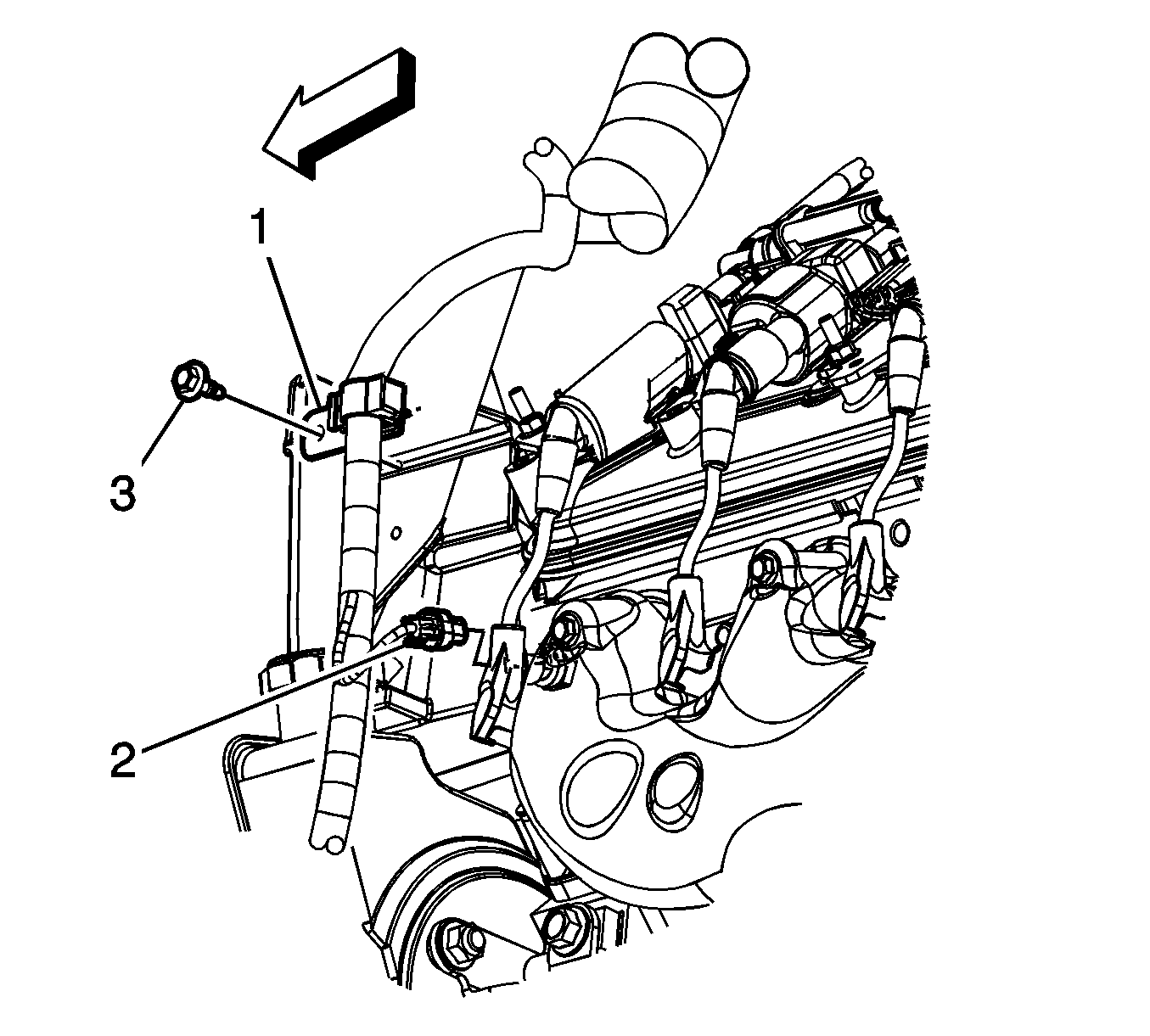

    Fig 1: Engine Wiring Harness, Clip, Bolt And Connector
    GM1696914Courtesy of GENERAL MOTORS COMPANY
  1. Drain the cooling system to a level below the engine cooling temperature (ECT) sensor. Refer to Cooling System Draining and Filling (Static Fill L96)Cooling System Draining and Filling (Vac N Fill L96) .
  2. Disconnect the engine wiring harness electrical connector (2) from the ECT sensor.
    3. Fig 2: Engine Coolant Temperature (ECT) Sensor
    GM855737Courtesy of GENERAL MOTORS COMPANY
  3. Remove the ECT sensor.
