Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

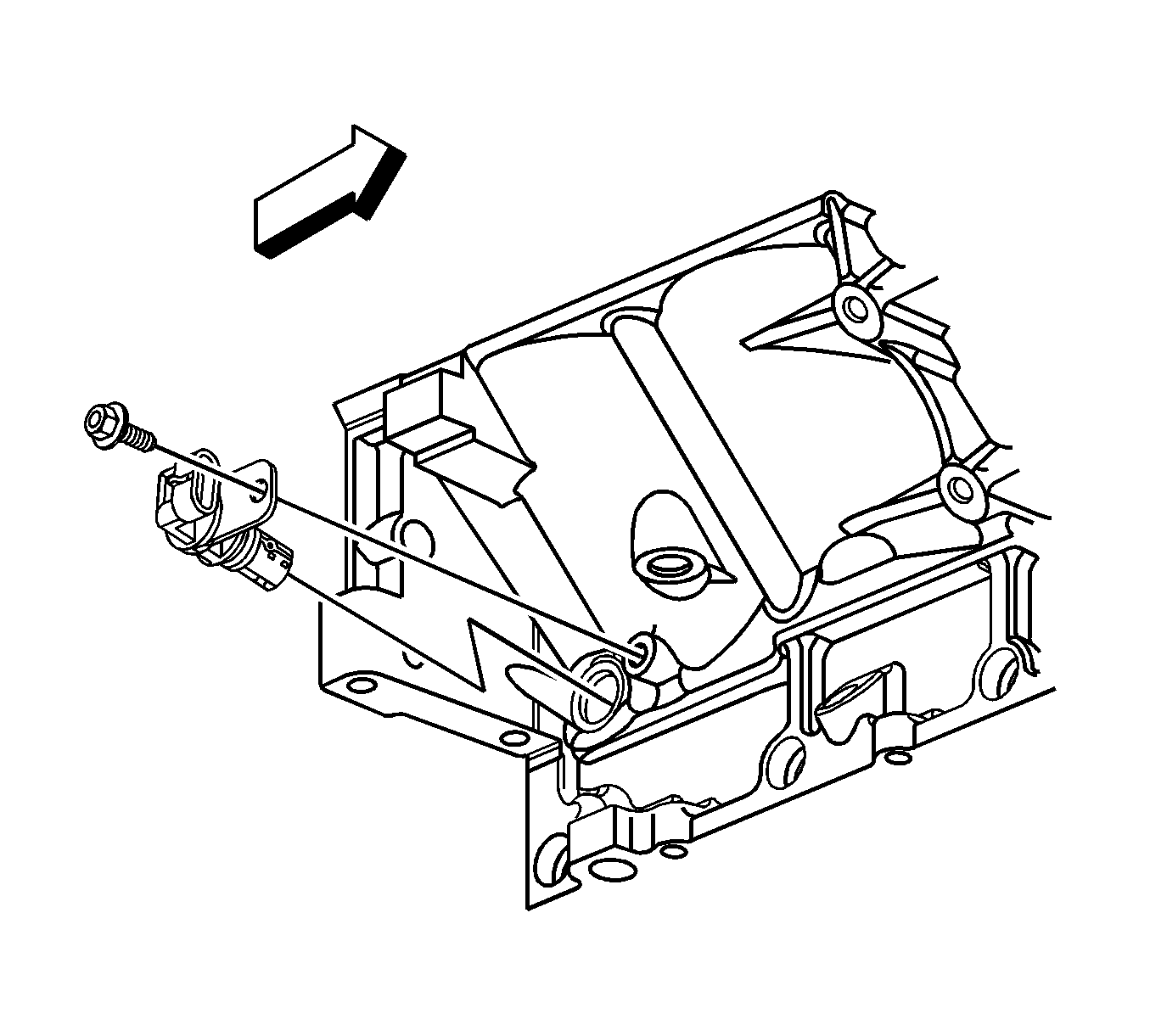

    Fig 1: CKP Sensor And Bolt
    GM1239292Courtesy of GENERAL MOTORS COMPANY
  1. Install the CKP sensor.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CKP sensor bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

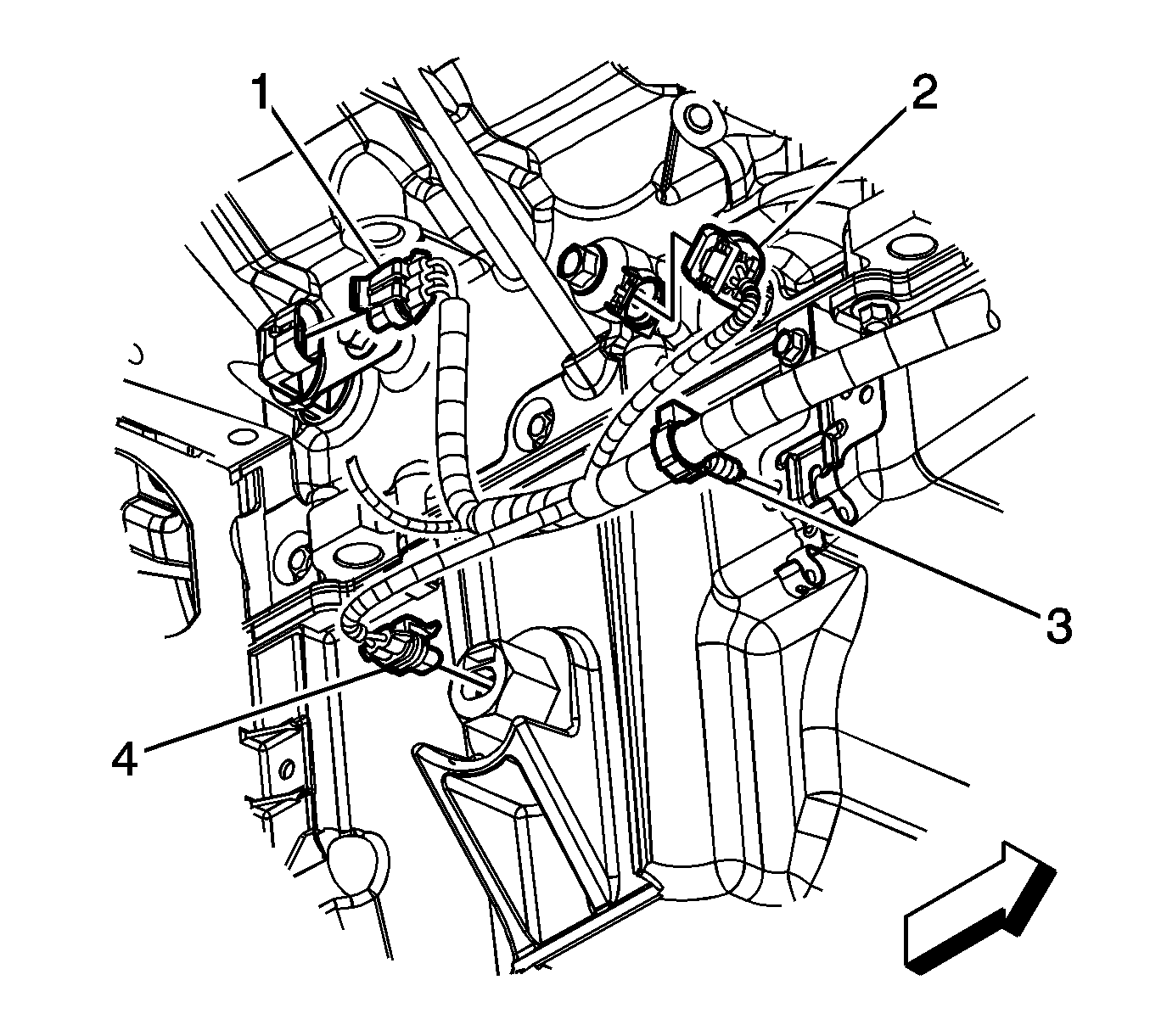

    3. Fig 2: Engine Wiring Harness Electrical Connectors And Components
    GM1698087Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector (1) to the CKP sensor.
  4. Install the starter. Refer to Starter Replacement (L96) .
  5. Perform the CKP system variation learn procedure. Refer to Crankshaft Position Variation Learn .
