Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

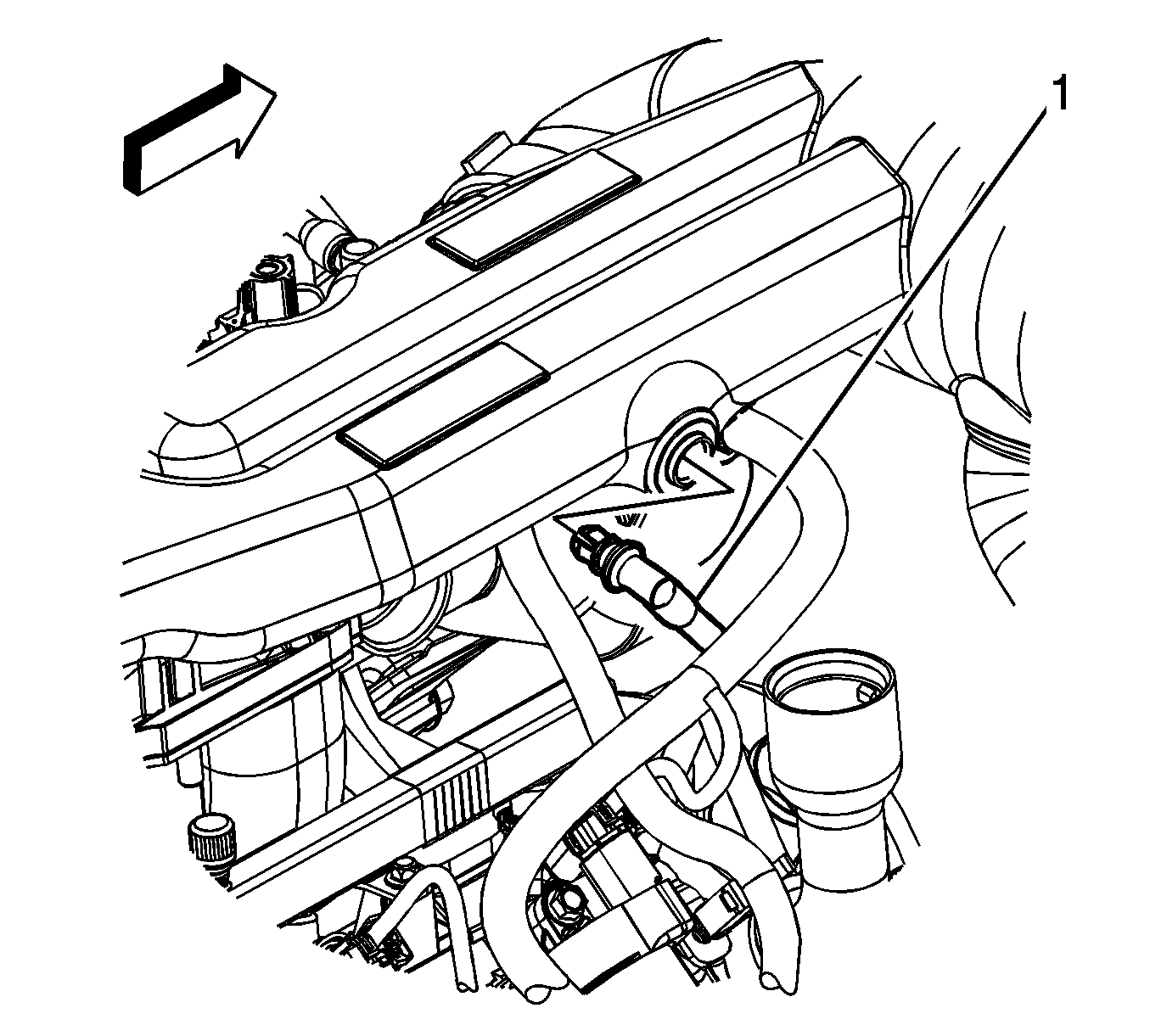

    Fig 1: PCV Tube
    GM1696754Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
  2. Remove the positive crankcase ventilation (PCV) line (1) from the air cleaner outlet duct.

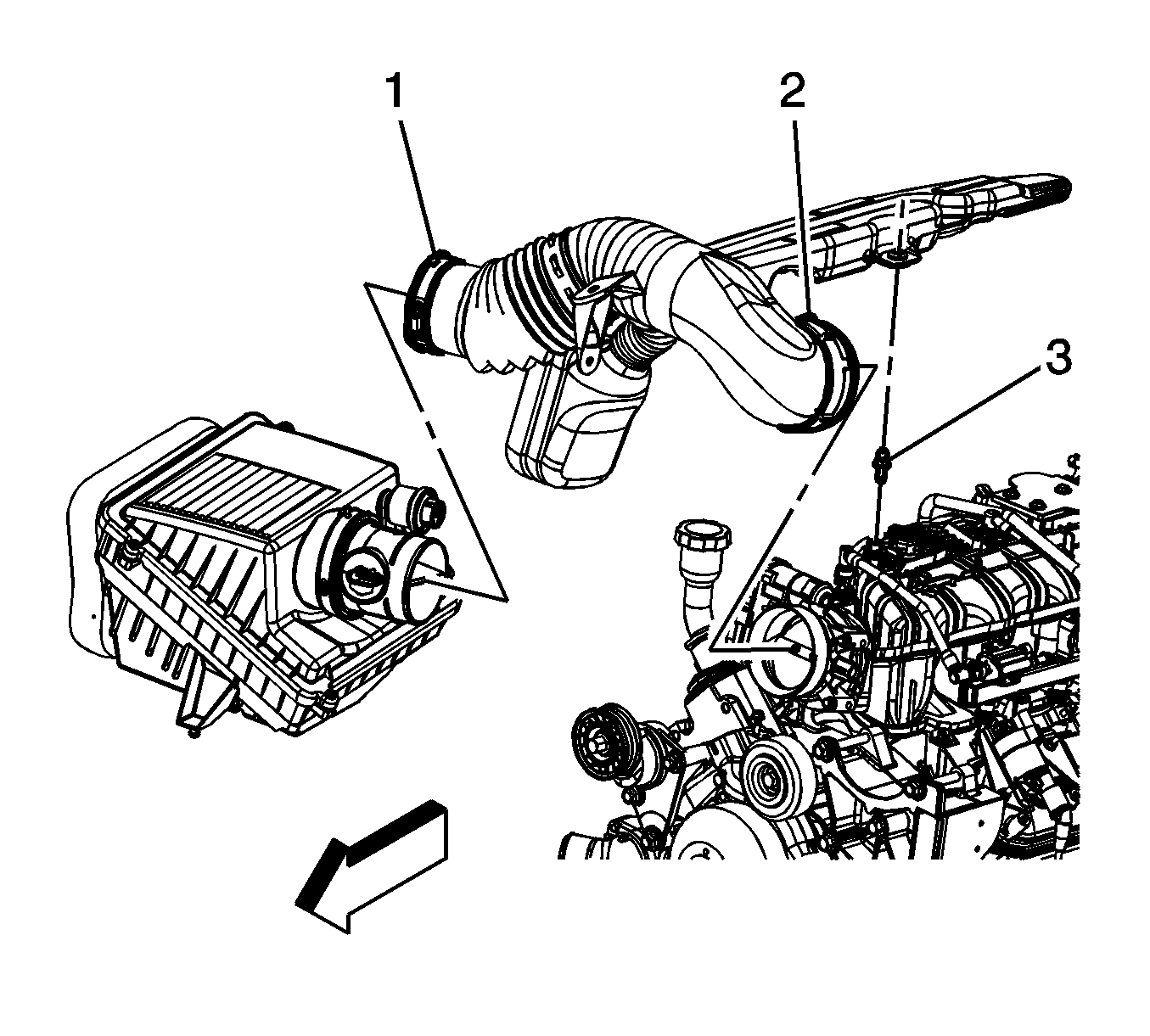

    3. Fig 2: Air Cleaner Outlet Duct And Clamps
    GM1696567Courtesy of GENERAL MOTORS COMPANY
  3. Remove the radiator inlet hose clamp retainer from the outlet duct.
  4. Loosen the air cleaner outlet duct clamp (1) at the mass air flow (MAF)/intake air temperature (IAT) sensor.
  5. Loosen the air cleaner outlet duct clamp (2) at the throttle body.
  6. Lift up the air cleaner outlet duct at the resonator tab in order to separate the resonator from the stud on the intake manifold.
  7. Remove the air cleaner outlet duct from the throttle body and MAF/IAT sensor.
