Air Cleaner Element Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

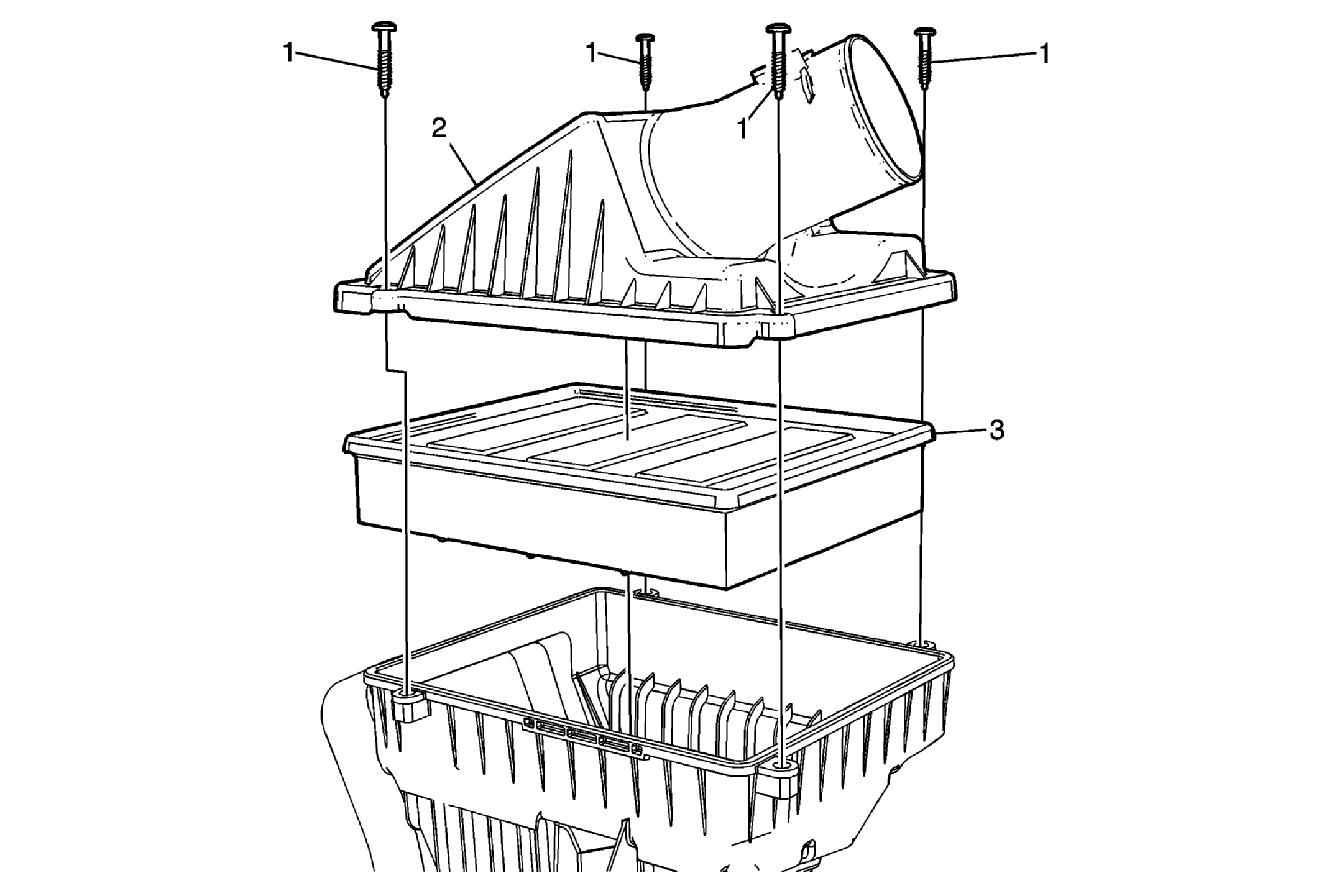

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Housing Cover Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Air Cleaner Housing |
| 3 | Air Cleaner Element |
