Ignition Controls - Ignition System Coils 1, 3, 5, and 7

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

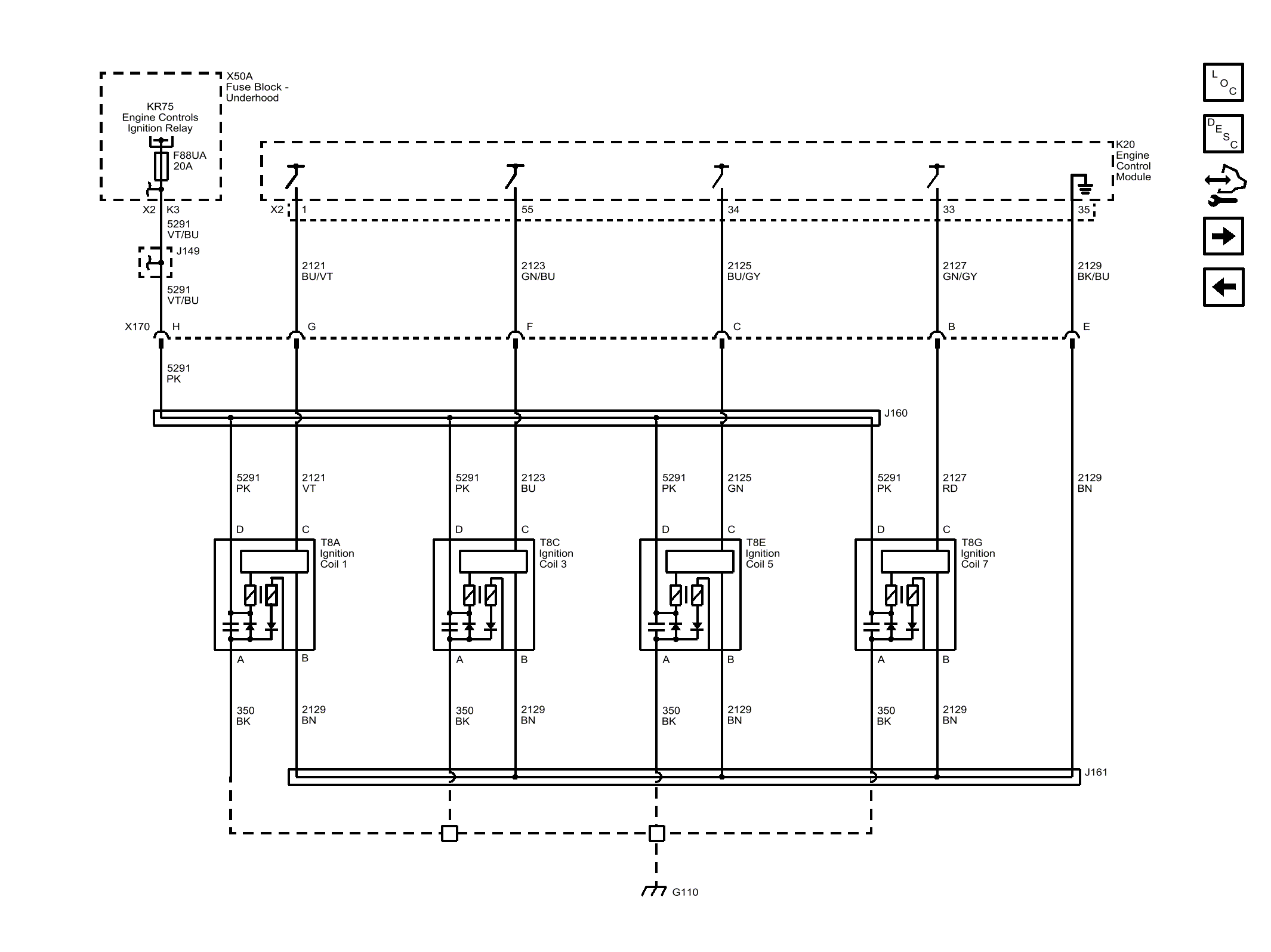

Fig 1: Ignition Controls - Ignition System Coils 1, 3, 5, and 7
GM4690140Courtesy of GENERAL MOTORS COMPANY
