Fuel Controls - EVAP Controls

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

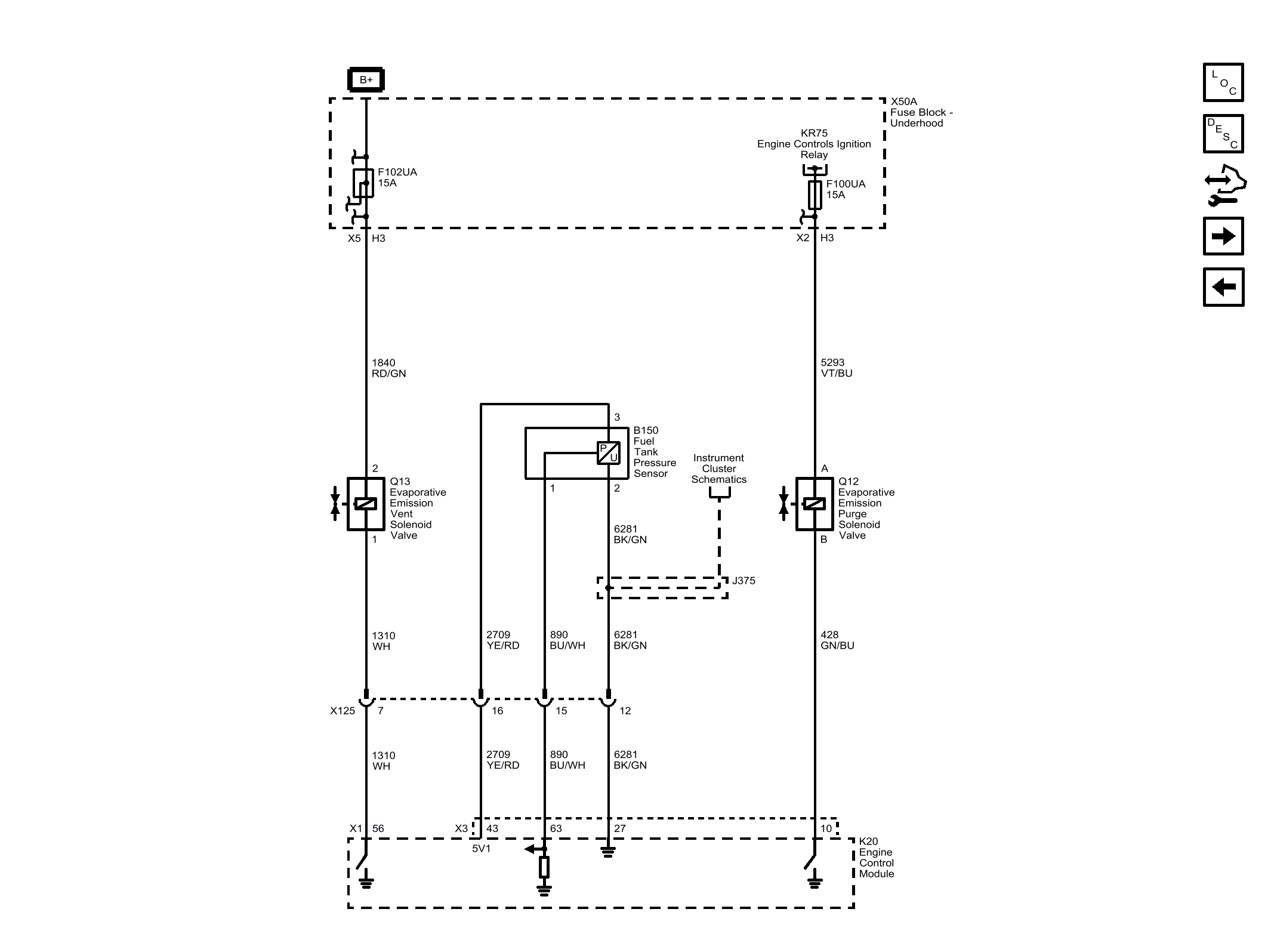

Fig 1: Fuel Controls - EVAP Controls
GM4690148Courtesy of GENERAL MOTORS COMPANY
